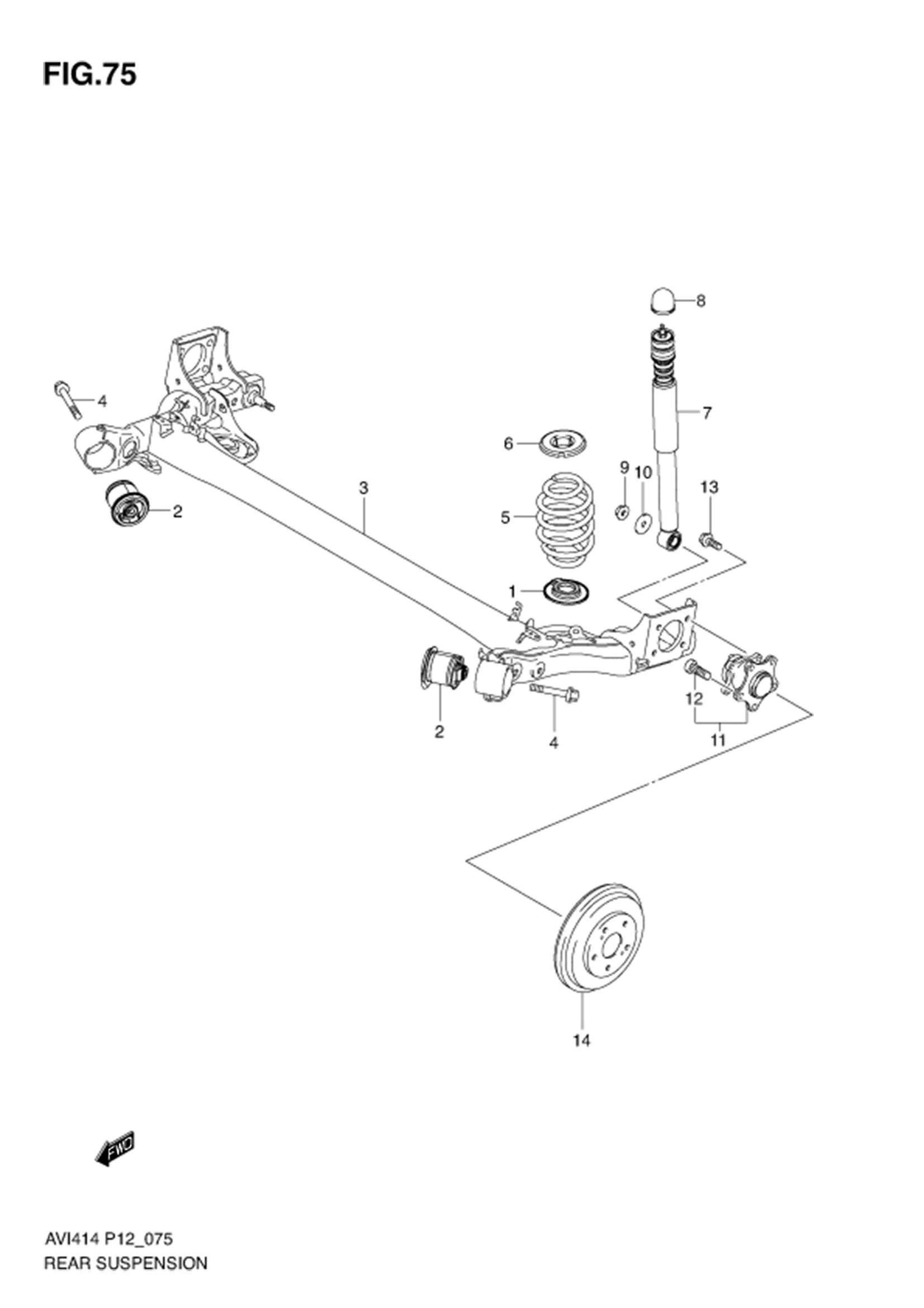

REAR SUSPENSION

REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
46411-60M00-000
SUB: 09135-12019-000		 BOLT (12X118) 2 Rp82.000
41311-77M00-000
SUB: 41311M60M00-000		 SPRING, REAR COIL TYPE 1 2 Rp244.000
41341M60M00-000 SEAT, REAR SPRING UPPER TYPE 1 2 Rp50.500
43402M60MA0-000 HUB ASSY, WHEEL TYPE 1:N/ABS 2 Rp2.132.500
1 41312M74L00-000 SEAT, REAR SPRING RUBBER LOWER 2 Rp16.000
4 09119-12012-000 BOLT (12X38) 8 Rp14.500
7 41800M60M01-000
SUB: 41800M60M00-000		 ABSORBER ASSY, REAR SHOCK 2 -
8 41951-77M00-000
SUB: 41951B77M00N000		 CAP, REAR SHOCK ABSORBER 2 Rp17.000
8 09103-12502-000 BOLT (12X30) 8 Rp39.000
10 09164-12027-000 WASHER 2 Rp273.000
14 43511-81K01-000
SUB: 43511B81K00N000		 DRUM, BRAKE REAR 2 Rp696.500
17 09159-12045-000 NUT 2 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
