ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSION (TYPE 1) FRONT SUSPENSION (TYPE 2) FRONT STABILIZER FRONT DRIVE SHAFT (MT) FRONT DRIVE SHAFT (AT) FRONT SUSPENSION FRAME REAR SUSPENSION ROAD WHEEL/TIRE (STD) ROAD WHEEL/TIRE (DLX,SDX) STEERING WHEEL (N/AUDIO SWITCH) STEERING WHEEL (W/AUDIO SWITCH) STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET (MT) PEDAL/PEDAL BRACKET (AT) BRAKE MASTER CYLINDER (TYPE 1:MT) BRAKE MASTER CYLINDER (TYPE 2:MT )BRAKE MASTER CYLINDER (AT) BRAKE PIPING (TYPE 1:N/ABS) BRAKE PIPING (TYPE 2:N/ABS) BRAKE PIPING (TYPE 1:W/ABS) BRAKE PIPING (TYPE 2:W/ABS) ANTI LOCK BRAKE SYSTEM (W/ABS) FRONT WHEEL BRAKE REAR WHEEL BRAKE PARKING BRAKE

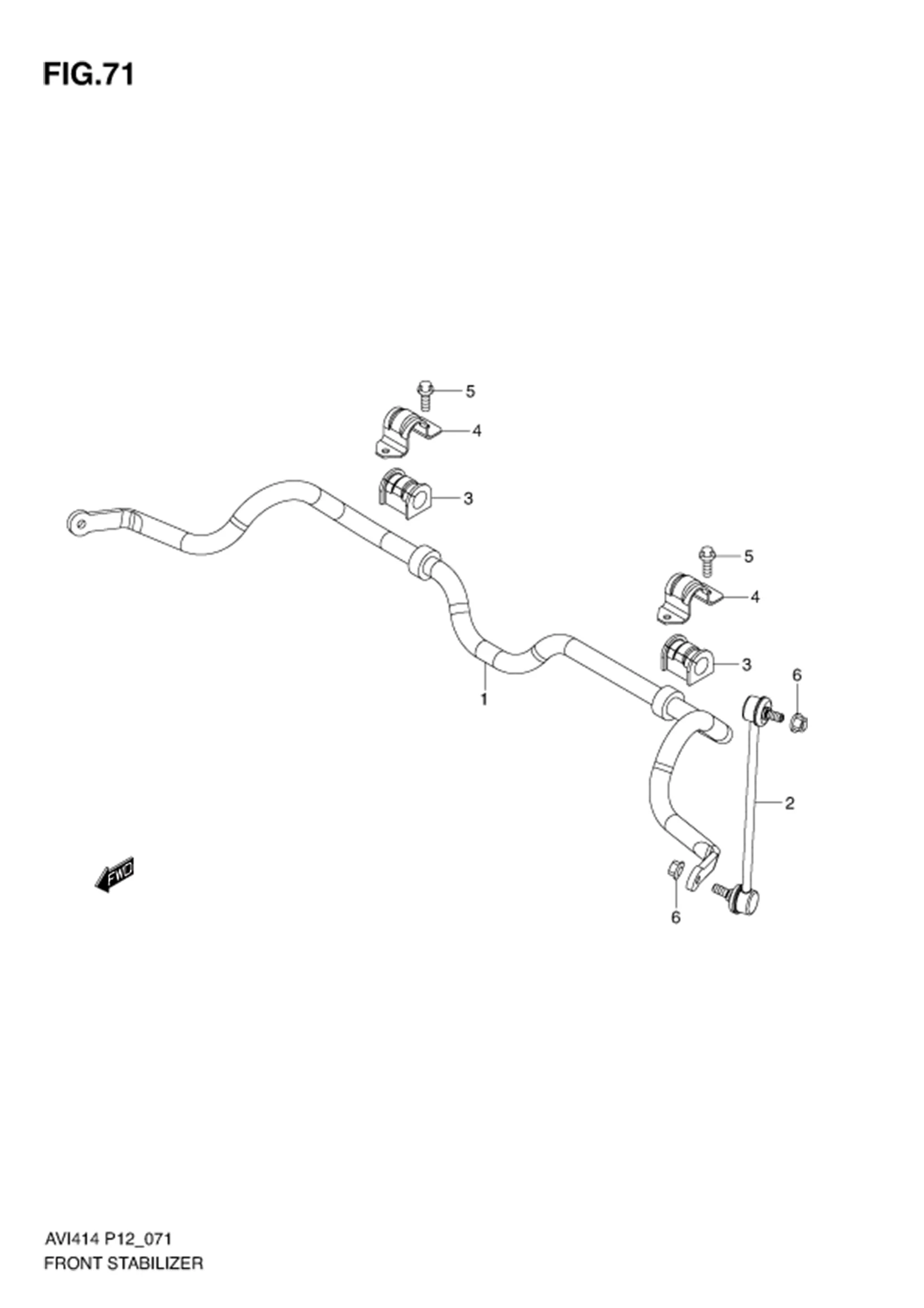

FRONT STABILIZER

FRONT STABILIZER
No No. Part Description Qty Price Per Pcs Remarks
42420-77M01-000
SUB: 42420-77M00-000		 JOINT, FR STABILIZER BAR 2 Rp344.500
42431-71L00-000 MOUNT, FRONT STABILIZER BAR TYPE 1 2 Rp72.500
42441-71L00-000 BRACKET, FR STABILIZER MOUNTBRACKET, FR STABILIZER 2 Rp69.000
1 42311-58M00-000
SUB: 42311B58M00N000		 BAR, FRONT STABILIZER 1 Rp826.000
5 09117-08101-000 BOLT (8X25) 4 Rp26.500
6 08316-1010A-000
SUB: 08316B1010AN000		 NUT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
