ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSION (TYPE 1) FRONT SUSPENSION (TYPE 2) FRONT STABILIZER FRONT DRIVE SHAFT (MT) FRONT DRIVE SHAFT (AT) FRONT SUSPENSION FRAME REAR SUSPENSION ROAD WHEEL/TIRE (STD) ROAD WHEEL/TIRE (DLX,SDX) STEERING WHEEL (N/AUDIO SWITCH) STEERING WHEEL (W/AUDIO SWITCH) STEERING COLUMN STEERING UNIT PEDAL/PEDAL BRACKET (MT) PEDAL/PEDAL BRACKET (AT) BRAKE MASTER CYLINDER (TYPE 1:MT) BRAKE MASTER CYLINDER (TYPE 2:MT )BRAKE MASTER CYLINDER (AT) BRAKE PIPING (TYPE 1:N/ABS) BRAKE PIPING (TYPE 2:N/ABS) BRAKE PIPING (TYPE 1:W/ABS) BRAKE PIPING (TYPE 2:W/ABS) ANTI LOCK BRAKE SYSTEM (W/ABS) FRONT WHEEL BRAKE REAR WHEEL BRAKE PARKING BRAKE

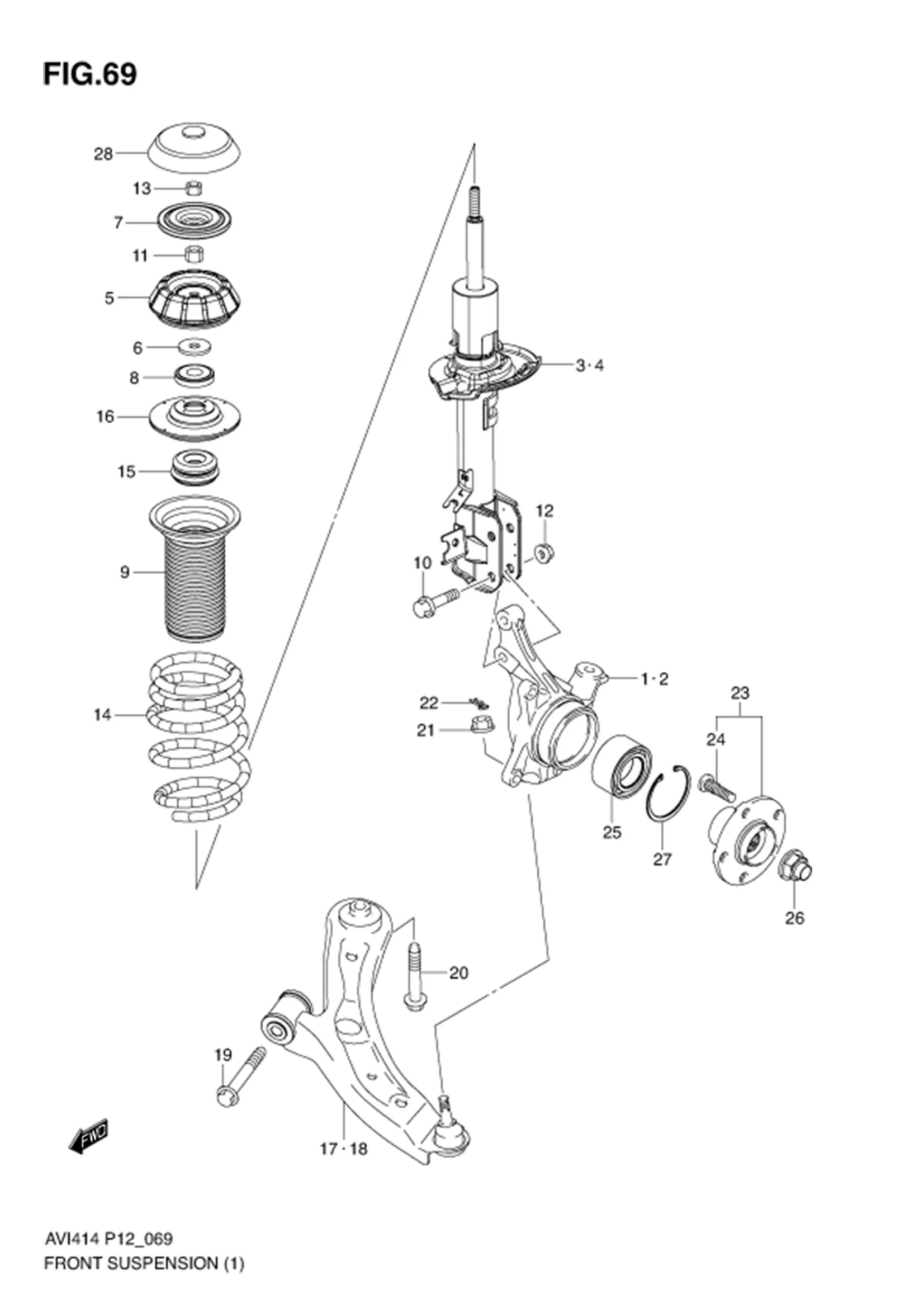

FRONT SUSPENSION (TYPE 1)

FRONT SUSPENSION (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
45151-77MA0-000
SUB: 45151B77MA0N000		 KNUCKLE, STEERING LH N/ABS 1 Rp684.000
43440-77MA0-000
SUB: 43440B77MA0N000		 BEARING, FRONT WHEEL N/ABS 2 Rp460.000
43420-80801-000 HUB, FRONT WHEEL 2 Rp2.168.000
45201M60M01-000
SUB: 45201M60M00-000		 ARM ASSY, FRONT SUSPENSION RH 1 Rp1.571.500
41111M60M01-000
SUB: 41111M60M00-000		 SPRING, FRONT COIL 2 Rp487.500
45111-77MA0-000
SUB: 45111B77MA0N000		 KNUCKLE, STEERING RH N/ABS 1 Rp684.000
DISCONTINUE
SUB: 41601M60M00-000		 STRUT ASSY, FR SUSPENSION RH 1 -
DISCONTINUE
SUB: 41602M60M00-000		 STRUT ASSY, FR SUSPENSION LH 1 -
5 41710M74L00-000 SUPPORT, FRONT STRUT 2 Rp219.000
6 41711M57K00-000 PLATE, STRUT BEARING 2 Rp10.500
7 41720M83K10-000 STOPPER, FRONT STRUT REBOUND 2 Rp62.500
8 41721M83K00-000 NUT, STRUT SUPPORT LOWER 2 Rp10.000
9 41931M68L10-000
SUB: 41931M68L00-000		 COVER, STRUT DUST 2 Rp104.000
10 41742M57K10-000
SUB: 41742M57K00-000		 BEARING, FRONT STRUT 2 Rp81.000
11 09103-12118-000 BOLT (12X50) 4 Rp33.000
11 43423M62S00-000
SUB: 43423M79G00-000		 .BOLT, FRONT HUB 10 Rp19.000
12 08316-1012A-000
SUB: 09159-12064-000		 NUT 4 Rp6.500
13 08310-0012A-000 NUT 2 Rp17.500
15 42111M74L00-000 STOPPER, FRONT BUMP 2 Rp103.000
16 41230M74L00-000 SEAT, FRONT SPRING UPPER 2 Rp103.000
21 09159-12069-000 NUT 2 Rp23.000
21 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500
25 09135-14011-000 BOLT (14X90) 2 Rp65.500
25 43459-65J00-000 NUT, DRIVE SHAFT 2 Rp75.500
26 09135-14018-000 BOLT (14X77) 2 Rp70.500
27 09381-84004-000 CIRCLIP, FRONT WHEEL BEARING 2 Rp53.500
28 41724-58M00-000 CAP, STRUT ROD 2 Rp33.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
