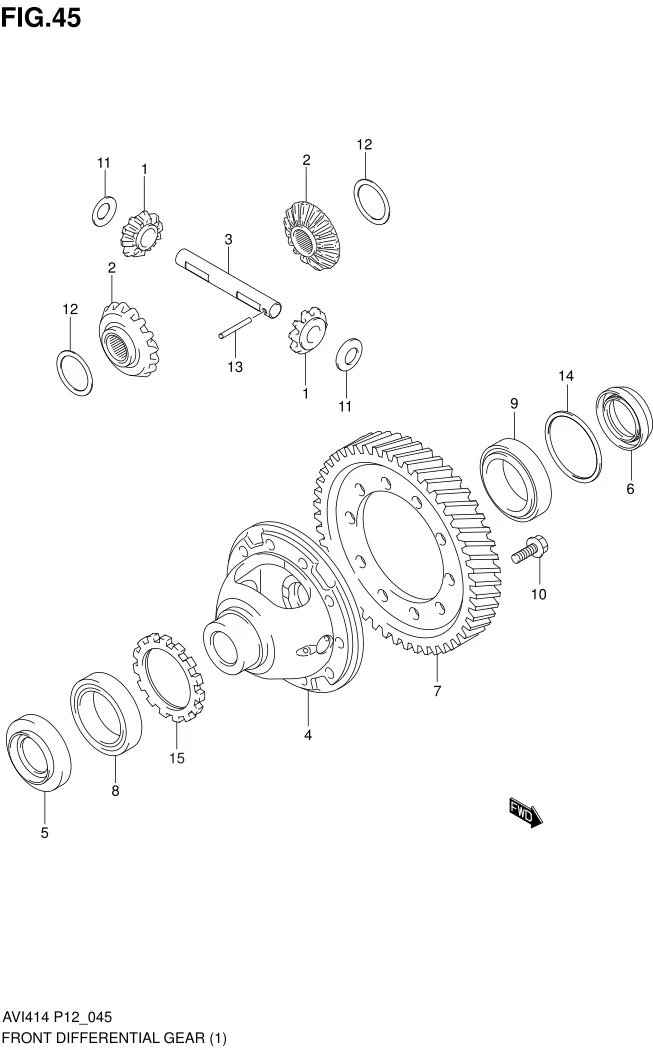

FIG.45 FRONT DIFFERENTIAL GEAR (MT)

FIG.45 FRONT DIFFERENTIAL GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 27331-77MA0-000 PINION, DIFFERENTIAL 2 Rp525.000
2 27341-77MA0-000 GEAR, DIFFERENTIAL SIDE 2 Rp730.500
3 27351M60MA0-000
SUB: 27351-80J00-000		 SHAFT, DIFF SIDE PINION 1 Rp104.500
4 27411M60MA0-000
SUB: 27411-77MA0-000		 CASE, FRONT DIFF 1 Rp1.447.000
5-1 27431-57LA0-000 SEAL, DIFF SIDE OIL RH 1 Rp99.000 TYPE 1
5-2 27431-77M00-000
SUB: 27431B77M00N000		 SEAL, DIFF SIDE OIL RH 1 Rp51.000 TYPE 2,TYPE 3
6-1 27432-54LA0-000 SEAL, DIFF SIDE OIL LH 1 Rp88.000 TYPE 1
6-2 27432-77M00-000
SUB: 27432B77M00N000		 SEAL, DIFF SIDE OIL LH 1 Rp30.000 TYPE 2,TYPE 3
7 27511-77MA0-000 GEAR, FINAL 1 Rp2.313.000
8-1 27521-79JA0-000 BEARING ASSY, DIFF SIDE RH 1 Rp452.500 TYPE 1
8-2 27521-73RA0-000
SUB: 27521B77M00N000		 BEARING ASSY, DIFF SIDE RH 1 Rp182.500 TYPE 2,TYPE 3
9-1 27524-79JA0-000 BEARING ASSY, DIFF SIDE LH 1 Rp386.500 TYPE 1
9-2 27524-73RA0-000
SUB: 27524B77M00N000		 BEARING ASSY, DIFF SIDE LH 1 Rp182.500 TYPE 2,TYPE 3
10 09103-10189-000 BOLT (10X23) 10 Rp29.000
11 09164-17011-000 WASHER 2 Rp29.000
12-8 09160-38010-000 WASHER (T:1.20) 0 Rp42.500
12-7 09160-38009-000 WASHER (T:1.15) 0 Rp42.500
12-6 09160-38008-000 WASHER (T:1.10) 0 Rp42.500
12-5 09160-38007-000 WASHER (T:1.05) 0 Rp42.500
12-3 09160-38005-000 WASHER (T:0.95) 0 Rp42.500
12-2 09160-38004-000 WASHER (T:0.90) 0 Rp42.500
12-1 09160-38003-000 WASHER (T:0.85) 0 Rp42.500
12-4 09160-38006-000 WASHER (T:1.00) 0 Rp42.500
13 09205M05007-000 SPRING PIN (5X36) 1 Rp5.000
14-8 DISCONTINUE
SUB: 29541-79JA0-128		 SHIM, DIFF SIDE BRG (T:1.28) 0 -
14-18 29541-79JA0-168 SHIM, DIFF SIDE BRG (T:1.68) 0 Rp64.000
14-17 DISCONTINUE
SUB: 29541-79JA0-164		 SHIM, DIFF SIDE BRG (T:1.64) 0 -
14-16 29541-79JA0-160 SHIM, DIFF SIDE BRG (T:1.60) 0 Rp64.000
14-15 DISCONTINUE
SUB: 29541-79JA0-156		 SHIM, DIFF SIDE BRG (T:1.56) 0 -
14-14 DISCONTINUE
SUB: 29541-79JA0-152		 SHIM, DIFF SIDE BRG (T:1.52) 0 -
14-13 DISCONTINUE
SUB: 29541-79JA0-148		 SHIM, DIFF SIDE BRG (T:1.48) 0 -
14-12 DISCONTINUE
SUB: 29541-79JA0-144		 SHIM, DIFF SIDE BRG (T:1.44) 0 -
14-11 29541-79JA0-140 SHIM, DIFF SIDE BRG (T:1.40) 0 Rp64.000
14-10 29541-79JA0-136 SHIM, DIFF SIDE BRG (T:1.36) 0 Rp64.000
14-9 29541-79JA0-132 SHIM, DIFF SIDE BRG (T:1.32) 0 Rp64.000
14-7 DISCONTINUE
SUB: 29541-79JA0-124		 SHIM, DIFF SIDE BRG (T:1.24) 0 -
14-6 DISCONTINUE
SUB: 29541-79JA0-120		 SHIM, DIFF SIDE BRG (T:1.20) 0 -
14-5 29541-79JA0-116 SHIM, DIFF SIDE BRG (T:1.16) 0 Rp64.000
14-4 29541-79JA0-112 SHIM, DIFF SIDE BRG (T:1.12) 0 Rp62.000
14-3 29541-79JA0-108 SHIM, DIFF SIDE BRG (T:1.08) 0 Rp64.000
14-2 DISCONTINUE
SUB: 29541-79JA0-104		 SHIM, DIFF SIDE BRG (T:1.04) 0 -
14-1 29541-79JA0-100 SHIM, DIFF SIDE BRG (T:1.00) 0 Rp60.000
15-1 26121-77M00-000
SUB: 26121M86J00-000		 RING, EXCITER 1 Rp51.000 TYPE 1
15-2 26121-77M00-000
SUB: 26121B77M00N000		 RING, EXCITER 1 Rp51.000 TYPE 2,TYPE 3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
