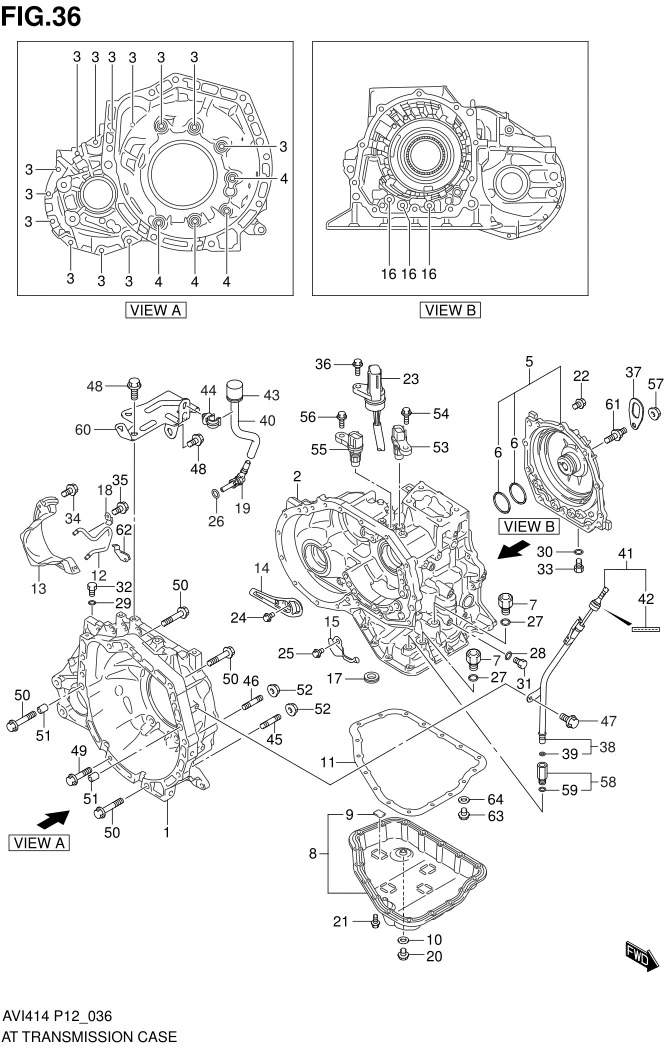

FIG.36 AT TRANSMISSION CASE (AT)

FIG.36 AT TRANSMISSION CASE (AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24710-60M30-000 HOUSING, TORQUE CONVERTOR 1 Rp8.254.000
2 24720-77M10-000 CASE, TRANSMISSION 1 Rp19.199.500
3 24725-79C10-000 BOLT, T/C HOUSING NO.1 13 Rp26.500
4 24729-79C10-000 BOLT, T/C HOUSING NO.2 4 Rp32.000
5 24730-77M10-000 COVER, T/M REAR 1 Rp4.058.500
6 24732-70H10-000 •RING, REAR COVER SEAL 2 Rp69.500
7 24743-77M10-000 UNION, OIL PIPE 2 Rp289.500
8 24761-77MT0-000 PAN SET, T/M OIL 1 Rp1.209.500
9 DISCONTINUE
SUB: 24745-59J00-000		 •MAGNET, OIL CLEANER 4 -
10 24781-57B00-000 GASKET, DRAIN PLUG 1 Rp33.500
11 24784-77M10-000 GASKET, T/M OIL PAN 1 Rp163.000
12-1 24811-77MT0-000 TUBE SET, DIFF SIDE BRG LUB 1 Rp208.000 TYPE 1,TYPE 2
12-2 24811-77MT0-000
SUB: 24811-60MT0-000		 TUBE SET, DIFF SIDE BRG LUB 1 Rp208.000 TYPE 3
13 24813-77M10-000 PLATE, OIL RESERVOIR RH 1 Rp290.500
14 24814-77M10-000 PLATE, OIL RESERVOIR LH 1 Rp55.000
15 24815-77M10-000 PLATE, OIL GUIDE 1 Rp118.500
16 29737-57B00-000 O RING, OIL PIPE 3 Rp71.000
17 24818-68J10-000 GASKET, GOVERNOR APPLY NO.1 1 Rp71.500
18 24725-59J10-000 CLAMP, DIFF RH BRG LUB PIPE 1 Rp40.000
19 24821-77M10-000 UNION, BREATHER 1 Rp62.500
20 24823-79C10-000 PLUG, DRAIN 1 Rp31.000
21 24882-79C10-000 BOLT, T/M OIL PAN 17 Rp22.000
22 24884-79C10-000 BOLT, T/M REAR COVER 9 Rp36.000
23 24892-77M10-000 HARNESS, SOLENOID WIRE 1 Rp1.466.500
24 26449-65G10-000 BOLT 1 Rp27.500
25 26449-65G10-000 BOLT 1 Rp27.500
26 27992-79C10-000 O RING, BREATHER PLUG 1 Rp24.000
27 29737-57B00-000 O RING, OIL PIPE UNION 2 Rp71.000
28 29738-57B00-000 O RING, TRANSMISSION CASE PLUG 4 Rp47.500
29 29738-57B00-000 O RING, T/C HOUSING PLUG 2 Rp47.500
30 29738-57B00-000 O RING, REAR COVER PLUG 5 Rp47.500
31 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, TRANSMISSION CASE 4 -
32 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, TORQUE CONVERTER HOUSING 2 -
33 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, T/M REAR COVER 5 -
34 29970-57B00-000 BOLT, OIL RESERVOIR PLATE 3 Rp83.000
35 29970-57B00-000 BOLT, DIFF SIDE BRG LUB TUBE 1 Rp83.000
36 29989-57B00-000 BOLT, SOLENOID WIRE HARNESS 1 Rp69.500
37 24855-77M10-000
SUB: 24855B77M10N000		 HOOK, TRANSMISSION 1 Rp32.000
38 24770-77M11-000
SUB: 24770-77M10-000		 TUBE ASSY, T/M OIL FILLER 1 Rp333.500
39 09280-09008-000 •O RING (D:2.1,ID:8.8) 1 Rp20.000
40 24825-77M10-000 HOSE, T/M BREATHER 1 Rp157.000
41 24830-77M10-000
SUB: 24830B77M10N000		 GAUGE ASSY, T/M OIL LEVEL 1 Rp172.500
42 24839-77M10-000
SUB: 24839B77M10N000		 •EMBLEM, ATF 1 Rp9.000
43 27991-77M10-000 PLUG, BREATHER HOSE 1 Rp47.500
44 09403-11320-000 CLAMP 1 Rp21.500
45 01421M1035A-000
SUB: 01421-1035A-000		 STUD BOLT 1 Rp16.000
46 01421-1045A-000 STUD BOLT 1 Rp29.500
47 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
48 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500
49 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
50 01550-1050A-000 BOLT 4 Rp6.000
51 04211M13189-000
SUB: 04211M13149-000		 PIN 2 Rp9.000
52 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
53 26130-77M10-000 SENSOR, SPEED OUTPUT 1 Rp1.429.500
54 29989-57B00-000 BOLT 1 Rp69.500
55 26143-77M10-000 SENSOR, SPEED INPUT 1 Rp1.473.000
56 29989-57B00-000 BOLT 1 Rp69.500
57 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
58 24780-77M10-000
SUB: 24780B77M10N000		 JOINT ASSY, FILLER TUBE 1 Rp73.000
59 24781-77M10-000
SUB: 24781B77M10N000		 •O RING, FILLER TUBE JOINT 1 Rp7.500
60 26598-77M10-000
SUB: 26598B77M10N000		 BRACKET, HARNESS 1 Rp39.500
61 24883-77M10-000 BOLT, T/M REAR COVER STUD 1 Rp161.000
62 24725-60M10-000 CLAMP,LUB TUBE 1 Rp56.500
63 24824-77M10-000 PLUG,T/M OIL CHECK 1 Rp42.500
64 24781-57B00-000 GASKET, DRAIN PLUG 1 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
