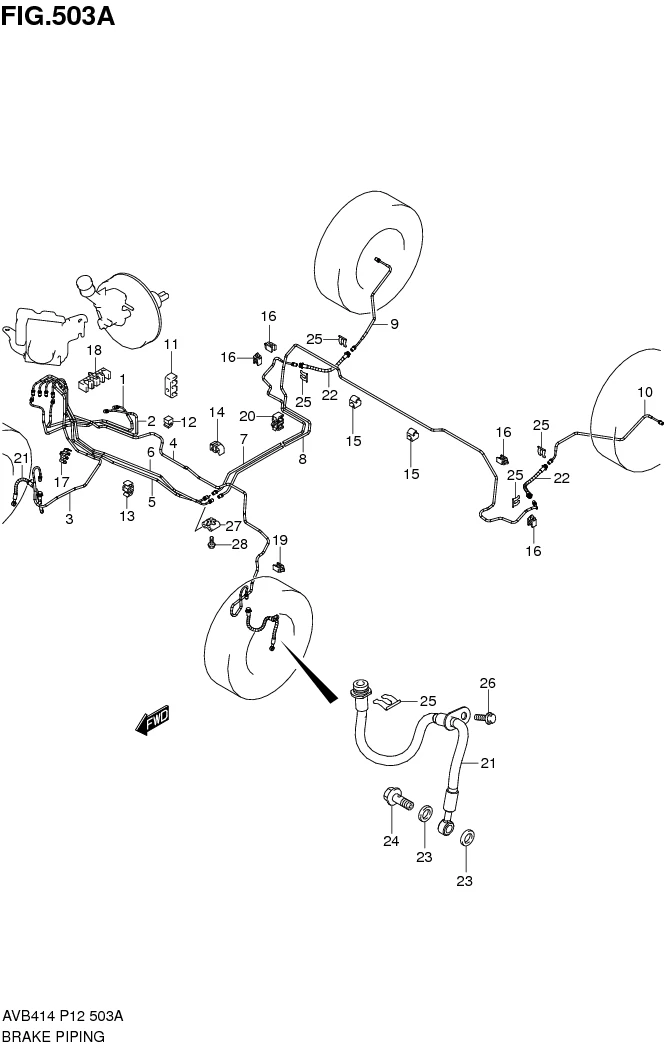

FIG.503A BRAKE PIPING

No	No. Part	Description	Qty	Price Per Pcs
1	51410-58M10-000	PIPE, MA PRI TO HU	1	Rp423.000
2	51420-58M10-000	PIPE, MA SEC TO HU	1	Rp423.000
3	51430-58M00-000	PIPE, HU TO FR BK HOSE RH	1	Rp438.500
4	51440-58M00-000	PIPE, HU TO FR BK HOSE LH	1	Rp484.500
5	51450-58M00-000	PIPE, HU TO JOINT RH	1	Rp438.500
6	51460-58M00-000	PIPE, HU TO JOINT LH	1	Rp438.500
7	51470-79P00-000	PIPE, JOINT TO RR BK HOSE RH	1	Rp595.500
8	51480-79P00-000	PIPE, JOINT TO RR BK HOSE LH	1	Rp595.500
9	51510-79P00-000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp279.500
10	51520-79P00-000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp279.500
11	51751-77M00-000 SUB: 51751-65J40-000	CLAMP, BK PIPE FR SIDE	1	Rp6.500
12	51751-65J50-000	CLAMP, BK PIPE FR SIDE	2	Rp34.000
13	51751-84M00-000	CLAMP, BK PIPE MAIN FL DOUBLE	1	Rp20.500
14	51751-84M00-000	CLAMP, BK PIPE MAIN FL DOUBLE	3	Rp20.500
15	51752-77M00-000 SUB: 51752-70B00-000	CLAMP, BK PIPE	2	Rp5.500
16	51761-58M00-000	CLAMP, BK PIPE RR SIDE MBR	4	Rp28.500
17	51761-58M00-000	CLAMP, BK PIPE RR SIDE MBR	1	Rp28.500
18	51761-77M10-000 SUB: 51761-62J40-000	CLAMP, BK PIPE 4	1	Rp6.500
19	51761-77M20-000 SUB: 51761-68L00-000	CLAMP, BK PIPE SIDE MEMBER RH	1	Rp6.500
20	51761-77M30-000 SUB: 51761M76G00-000	CLAMP, BK PIPE DASH LWR	1	Rp6.500
21	51550-58M00-000	HOSE, FR BRAKE FLEXIBLE	2	Rp282.000
22	51570-58M01-000 SUB: 51570-58M00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp105.000
23	09161-10009-000	WASHER (10X15X1.5)	4	Rp12.500
24	51561M55K00-000 SUB: 09360-10046-000	UNION (M10X1.0X23)	2	Rp8.500
25	09383M13004-000 SUB: 09383-13003-000	E RING	6	Rp7.000
26	01551-0816C-000	BOLT	2	Rp13.500
27	51630M70F00-000	JOINT, 4WAY BRAKE	1	Rp122.000
28	02162-0625A-000	SCREW	1	Rp3.500
