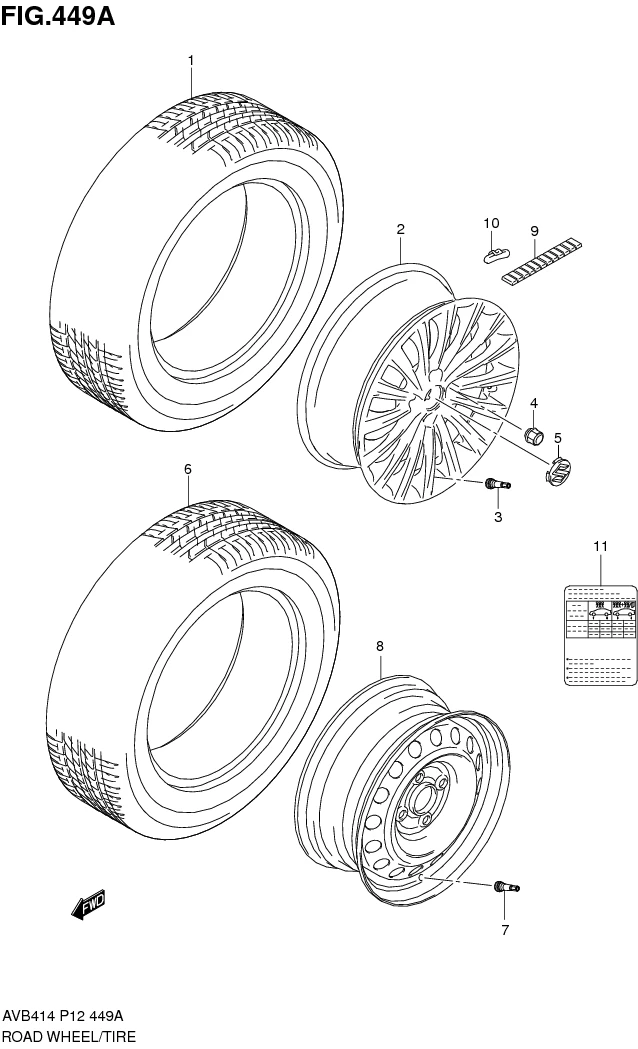

FIG.449A ROAD WHEEL/TIRE

No	No. Part	Description	Qty	Price Per Pcs
1	43110-79P50-000	TIRE (195/55R16,87H) (BS)	4	Rp2.181.500
2	43210-79P60-PZB	WHEEL, AL (16X6J) (SILVER)	4	Rp4.461.500
3	43130-60M00-000	VALVE (TR414)	4	Rp84.000
4	09159-12L02-000	NUT	16	Rp42.500
5	43252-83S00-0PG SUB: 43252-63J10-0PG	CAP, WHEEL CENTER (CHROME)	4	Rp174.500
6	DISCONTINUE SUB: 43110-79P00-000	TIRE (185/65R15,88S) (BS)	1	-
7	43130-60M00-000	VALVE (TR414)	1	Rp84.000
8	43210-79P01-39M	WHEEL (15X5,1/2J) (SILVER)	1	Rp1.627.500
9-7	43221-59J60-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp52.500
9-10	43221-59J90-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp60.000
9-9	43221-59J80-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp57.000
9-8	43221-59J70-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp54.500
9-6	43221-59J50-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp49.500
9-5	43221-59J40-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp47.000
9-4	43221-59J30-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp44.000
9-3	43221-59J20-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp42.000
9-2	43221-59J10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp40.000
9-1	43221-59J00-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp32.000
10-1	43221-58M10-000	WEIGHT, WHEEL BALANCE (5G)	0	Rp120.500
10-2	43222-58M10-000	WEIGHT, WHEEL BALANCE (10G)	0	Rp122.500
10-3	43223-58M10-000	WEIGHT, WHEEL BALANCE (15G)	0	Rp124.500
10-4	43224-58M10-000	WEIGHT, WHEEL BALANCE (20G)	0	Rp126.500
10-5	43225-58M10-000	WEIGHT, WHEEL BALANCE (25G)	0	Rp130.000
10-6	43226-58M10-000	WEIGHT, WHEEL BALANCE (30G)	0	Rp132.000
10-7	43227-58M10-000	WEIGHT, WHEEL BALANCE (35G)	0	Rp135.000
10-8	43228-58M10-000	WEIGHT, WHEEL BALANCE (40G)	0	Rp139.500
10-9	43231-58M10-000	WEIGHT, WHEEL BALANCE (45G)	0	Rp143.000
10-10	43232-58M10-000	WEIGHT, WHEEL BALANCE (50G)	0	Rp147.500
11	79161-79P00-000	PLACARD, TIRE INFORMATION	1	Rp49.500
