CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSION FIG.408A FRONT STABILIZER FIG.410A FRONT DRIVE SHAFT (5MT) FIG.410B FRONT DRIVE SHAFT (4AT) FIG.418A FRONT SUSPENSION FRAME FIG.430A REAR SUSPENSION FIG.449A ROAD WHEEL/TIRE FIG.451A STEERING WHEEL FIG.453A STEERING COLUMN FIG.480A STEERING UNIT FIG.490A PEDAL/PEDAL BRACKET (5MT) FIG.490B PEDAL/PEDAL BRACKET (4AT) FIG.500A BRAKE MASTER CYLINDER FIG.503A BRAKE PIPING FIG.510A ANTI LOCK BRAKE SYSTEM FIG.520A FRONT WHEEL BRAKE FIG.530A REAR WHEEL BRAKE FIG.542A PARKING BRAKE

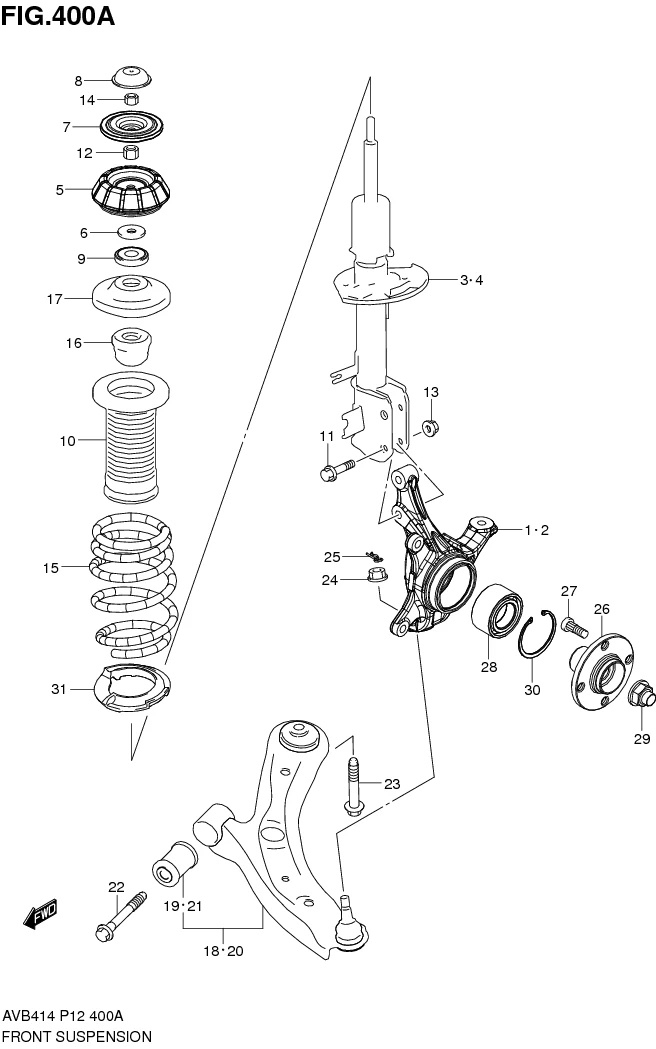

FIG.400A FRONT SUSPENSION

FIG.400A FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-79P00-000 KNUCKLE, STRG RH 1 Rp9.149.000
2 45151-79P00-000 KNUCKLE, STRG LH 1 Rp9.149.000
3 41601-79P00-000 STRUT ASSY, FR SPNSN RH 1 Rp2.478.500
4 41602-79P00-000 STRUT ASSY, FR SPNSN LH 1 Rp2.478.500
5 41710-58M00-000 SUPPORT, FRONT STRUT 2 Rp365.500
6 41711-66M00-000 PLATE, STRUT BEARING 2 Rp91.500
7 41720-58M00-000 STOPPER, FRONT STRUT REBOUND 2 Rp132.000
8 41724-58M00-000 CAP, STRUT ROD 2 Rp33.000
9 41742M57K10-000
SUB: 41742M57K00-000		 BEARING, FRONT STRUT 2 Rp81.000
10 41931-79P00-000 COVER, STRUT DUST 2 Rp268.500
11 09103-12118-000 BOLT (12X50) 4 Rp33.000
12 09140-12049-000 NUT 2 Rp18.000
13 08316-1012A-000
SUB: 09159-12064-000		 NUT 4 Rp6.500
14 08310-0012A-000 NUT 2 Rp17.500
15 41111-79P00-000 SPRING, FR COIL 2 Rp876.500
16 42111-79P00-000 STOPPER, FR BUMP 2 Rp228.500
17 41230M79M00-000 SEAT, FR SPRING UPR 2 Rp244.000
18 45201M79M10-000
SUB: 45201M79M00-000		 ARM ASSY, FR SPNSN RH 1 Rp1.555.000
19 45530-79M00-000 •BUSHING, SPNSN ARM FR 1 Rp326.000
20 45202M79M10-000
SUB: 45202M79M00-000		 ARM ASSY, FR SPNSN LH 1 Rp1.555.000
21 45530-79M00-000 •BUSHING, SPNSN ARM FR 1 Rp326.000
22 45264-61M20-000
SUB: 45264-61M00-000		 BOLT, SPNSN ARM FR BUSHING 2 Rp87.000
23 09135-14018-000 BOLT (14X85) 2 Rp70.500
24 09159-12069-000 NUT 2 Rp23.000
25 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500
26 43421-60G03-000 HUB, FRONT WHEEL 2 Rp1.520.000
27 43423-84M00-000 BOLT, HUB 8 Rp79.000
28 43440-58M00-000 BEARING, FRONT WHEEL 2 Rp659.500
29 09159-18024-000 NUT 2 Rp74.500
30 09381-72002-000
SUB: 09381-72L01-000		 CIRCLIP 2 Rp56.000
31 41212-61M00-000 SEAT, FR SPRING LWR 2 Rp182.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
