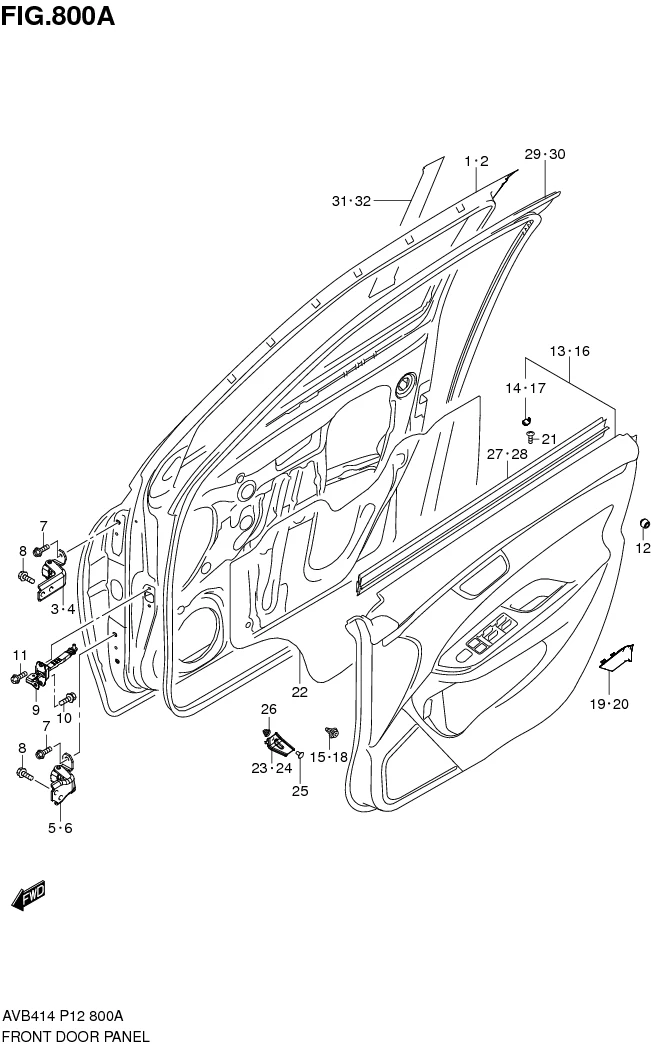

FIG.800A FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-79P03-000 SUB: 68001-79P00-000	PANEL ASSY, FR DR RH	1	Rp7.862.500
2	68002-79P03-000 SUB: 68002-79P00-000	PANEL ASSY, FR DR LH	1	Rp7.862.500
3	69310M68L00-000 SUB: 69310-68LB0-000	HINGE, FRONT DOOR UPPER RH	1	Rp82.500
4	69320M68L00-000 SUB: 69320-68LB0-000	HINGE, FRONT DOOR UPPER LH	1	Rp82.500
5	69330M68L00-000 SUB: 69330-68LB0-000	HINGE, FRONT DOOR LOWER RH	1	Rp74.000
6	69340M68L00-000 SUB: 69340-68LB0-000	HINGE, FRONT DOOR LOWER LH	1	Rp74.000
7	09103-08538-000	BOLT (8X24)	8	Rp53.000
8	01551-0820A-000	BOLT	8	Rp17.500
9	81810-79P00-000	STOP, SIDE DR OPEN	2	Rp281.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	02162-0612A-000	SCREW	4	Rp11.000
12	82711-68H00-000	STOPPER, REAR DOOR	4	Rp42.000
13	83710-79P00-BLF	TRIM, FRONT DOOR RH	1	Rp2.731.000
14	83752-80J00-5PK	•CAP, SIDE DR INSIDE CASE (BLACK)	1	Rp74.000
15	09409-10327-000 SUB: 09409M10312-000	CLIP	8	Rp5.000
16	83720-79P00-BLF	TRIM, FRONT DOOR LH (BLACK/SILVER)	1	Rp2.731.000
17	83752-80J00-5PK	•CAP, SIDE DR INSIDE CASE (BLACK)	1	Rp74.000
18	09409-10327-000 SUB: 09409M10312-000	CLIP	8	Rp5.000
19	83755-68L00-5PK	CAP, SIDE DR INSIDE HDL BEZEL RH	1	Rp126.500
20	83756-68L00-5PK	CAP, SIDE DR INSIDE HDL BEZEL LH	1	Rp126.500
21	09132-05058-000	SCREW (5X12)	2	Rp14.000
22	83911M79M00-000	COVER, FR DR SEALING	2	Rp39.500
23	83751-75HA0-000 SUB: 83751M75HA0-000	BRACKET, FRONT DOOR TRIM RH	1	Rp8.000
24	83756-75HA0-000 SUB: 83756M75HA0-000	BRACKET, FRONT DOOR TRIM LH	1	Rp8.000
25	03241M0612A-000	SCREW	2	Rp6.500
26	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
27	83851-79P00-000	WEATHERSTRIP, FR DR INNER RH	1	Rp345.000
28	83861-79P00-000	WEATHERSTRIP, FR DR INNER LH	1	Rp345.000
29	84641-79P00-000	WEATHERSTRIP, FR DR OPNG RH	1	Rp626.000
30	84651-79P00-000	WEATHERSTRIP, FR DR OPNG LH	1	Rp626.000
31	83923-79P00-0CB	TAPE, FRONT DOOR OUTER RR RH	1	Rp153.000	BODY COLOR:ZTR,ZTS
32	83924-79P00-0CB	TAPE, FRONT DOOR OUTER RR LH	1	Rp153.000	BODY COLOR:ZTR,ZTS
