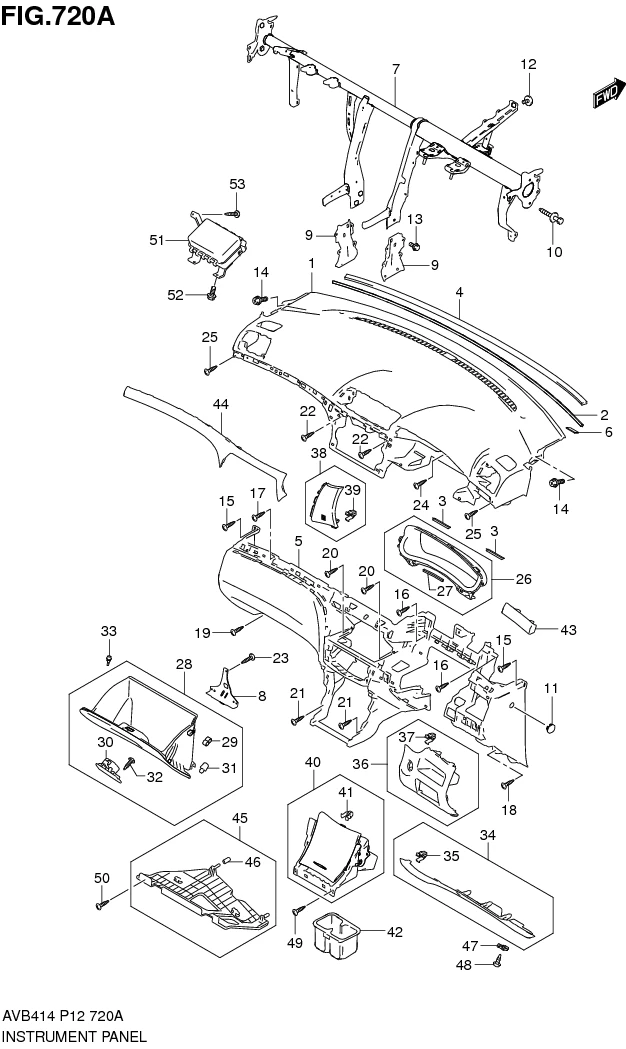

FIG.720A INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	73110-79P00-5PK	PANEL, INSTRUMENT MAIN UPR	1	Rp4.554.500
2	73114-61M00-000	SILENCER, I/P TOP	1	Rp315.500
3	73114-79M00-000	FELT, I/P UPR SIDE	2	Rp16.000
4	73118M74L00-000	SEAL, I/P	1	Rp8.000
5	73121-79P00-5PK	PANEL, INSTRUMENT MAIN LOWER	1	Rp4.607.500
6	73123-61M00-000	FELT	5	Rp16.000
7	73200-79P00-000	MEMBER, STRG SUPPORT	1	Rp5.017.500
8	73250-79P00-000	REINF, GLOVE BOX UPR	1	Rp280.500
9	73261M61M00-000	BRACE, STRG SUPPORT MBR LOWER	2	Rp27.000
10	73291-50G20-000	BOLT, STRG SUPPORT MEMBER SIDE	4	Rp42.500
11	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	3	Rp9.000
12	09116-08171-000	BOLT	1	Rp29.000
13	01551-0816C-000	BOLT	8	Rp13.500
14	02162-0612A-000	SCREW	2	Rp11.000
15	03241-0512A-000	SCREW	2	Rp3.500
16	03241-0512A-000	SCREW	2	Rp3.500
17	03241-0512A-000	SCREW	1	Rp3.500
18	03241-0512A-000	SCREW	1	Rp3.500
19	03241-0512A-000	SCREW	2	Rp3.500
20	03241-0512A-000	SCREW	2	Rp3.500
21	03241-0512A-000	SCREW	2	Rp3.500
22	03541-0516A-000	SCREW	2	Rp3.500
23	03541-0516A-000	SCREW	3	Rp3.500
24	03541-0516A-000	SCREW	1	Rp3.500
25	03541-0516A-000	SCREW	2	Rp3.500
26	73310-79P00-5PK	PANEL, INSTRUMENT CLUSTER (BLACK)	1	Rp905.500
27	73314-62J00-000	•SEAL, I/P CLUSTER	2	Rp34.000
28	73410-79P00-5PK	BOX, GLOVE (BLACK)	1	Rp1.279.000
29	73413-63J00-000	•CUSHION, GLOVE BOX	2	Rp33.000
30	73430-58M00-5PK	•LOCK, GLOVE BOX (BLACK)	1	Rp399.500
31	73461-54M00-000	•CUSHION, GLOVE BOX SIDE	2	Rp32.000
32	03541-0412A-000	•SCREW	2	Rp3.500
33	73413M82C00-000	CUSHION, GLOVE BOX LID	2	Rp11.500
34	73811-79P00-5PK	COVER, STRG COLUMN HOLE (BLACK)	1	Rp478.500
35	09409-08349-000 SUB: 09409-08342-000	•CLIP	1	Rp4.500
36	73831-79P20-5PK	GARNISH, I/P DRVR OUTSIDE (BLACK)	1	Rp121.000
37	09409-08349-000 SUB: 09409-08342-000	•CLIP	1	Rp4.500
38	73832-79P00-5PK	GARNISH, I/P DRVR INSIDE (BLACK)	1	Rp150.000
39	09409-08349-000 SUB: 09409-08342-000	•CLIP	1	Rp4.500
40	73840-79P00-BGT	BOX, I/P CTR LOWER (BLACK/CHROME)	1	Rp688.000
41	09409-08349-000 SUB: 09409-08342-000	•CLIP	4	Rp4.500
42	73841M79M00-5PK	HOLDER, CUP (BLACK)	1	Rp48.500
43	73851M79M00-PPL	ORNAMENT, I/P DRVR (SILVER)	1	Rp180.000
44	73852-79M00-PPL	ORNAMENT, I/P CENTER (SILVER)	1	Rp470.500
45	73890-79P00-000	COVER, I/P UNDER ASST	1	Rp256.500
46	73132-57L00-000	•CAP, I/P PIN	2	Rp38.000
47	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
48	03241-0512A-000	SCREW	2	Rp3.500
49	03541-0516A-000	SCREW	2	Rp3.500
50	03541-0516A-000	SCREW	2	Rp3.500
51	73910-79P00-000	MODULE ASSY, PASS AIR BAG	1	Rp10.894.500
52	01551-0816C-000	BOLT	2	Rp13.500
53	03541-0516A-000	SCREW	2	Rp3.500
56	65310-79P00-000	PANEL, PARTITION	1	Rp1.604.500
