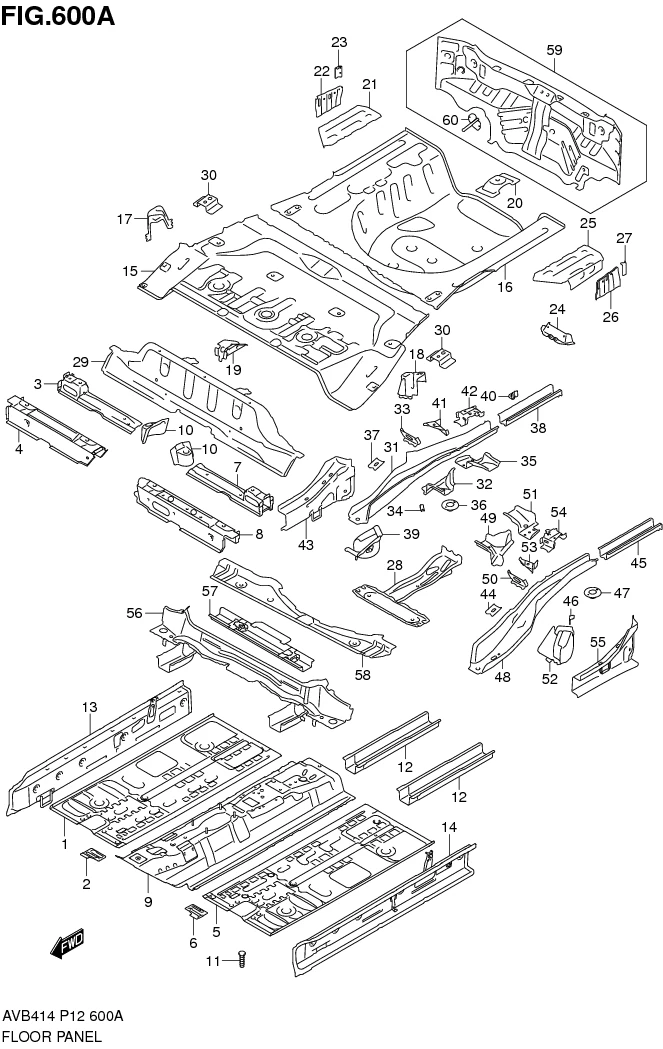

FIG.600A FLOOR PANEL

FIG.600A FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 61111-79P00-000 PAN, MAIN FLR RH 1 Rp4.501.500
2 61113-79P00-000 REINF, FLR PAN UPR INS RH 1 Rp181.000
3 61120M79M00-000 CROSSMEMBER, FR SEAT RR RH 1 Rp266.000
4 61131M79M00-000 CROSSMEMBER, FR SEAT FR RH 1 Rp377.000
5 61161-79P00-000 PAN, MAIN FLR LH 1 Rp4.873.500
6 61163-79P00-000 REINF, FLR PAN UPR INS LH 1 Rp181.000
7 61170M79M00-000 CROSSMEMBER, FR SEAT RR LH 1 Rp266.000
8 61181M79M00-000 CROSSMEMBER, FR SEAT FR LH 1 Rp377.000
9 61210-79P00-000 TUNNEL, MAIN FLR 1 Rp5.411.500
10 61232M79M00-000 BRACKET, FR SEAT RR INS 2 Rp53.000
11 09119-05018-000 BOLT (8X35) 6 Rp13.000
12 61241-74L00-000 MEMBER, FL SIDE RR 2 Rp160.000
13 61310-79P00-000 PANEL, SIDE SILL INNER RH 1 Rp2.963.000
14 61320-79P00-000 PANEL, SIDE SILL INNER LH 1 Rp2.963.000
15 61512-79P00-000 PANEL, RR FLR CTR 1 Rp7.096.000
16 61513-79P00-000 PANEL, RR FLR RR 1 Rp4.266.000
17 61514M79M00-000 PANEL, RR SEAT SPRT RH 1 Rp21.000
18 61515M79M00-000 PANEL, RR SEAT SPRT LH 1 Rp21.000
19 61516-79P00-000 BRACE, RR FLR 1 Rp358.000
20 61518M79M00-000 BRACKET, SPARE TIRE 1 Rp33.000
21 61521-79P00-000 EXTENSION, RR FLOOR SIDE RH 1 Rp350.000
22 61522-79M00-000 PANEL, RR FLR SIDE PARTITION RR 1 Rp350.000
23 61523-79P00-000 EXTENSION, RR FLOOR SIDE RR RH 1 Rp350.000
24 61521M75L00-000 BRACKET, REAR SEAT CTR 1 Rp43.500
25 61531-79P00-000 EXTENSION, RR FLOOR SIDE LH 1 Rp350.000
26 61532-79M00-000 PANEL, RR FLR SIDE PARTITION LH 1 Rp350.000
27 61533-79P00-000 EXTENSION, RR FLOOR SIDE RR LH 1 Rp350.000
28 61550M79M00-000 MEMBER, TOWING HOOK RR 1 Rp286.000
29 61560-79P00-000 PANEL, RR FLOOR FR 1 Rp1.834.500
30 63414M75L00-000 BRACKET, REAR SEAT SIDE 2 Rp5.500
31 62111-79M00-000 MEMBER, REAR FLOOR SIDE FR RH 1 Rp1.427.000
32 62112-79M00-000 EXTENSION, RR FL SIDE MBR FR RH 1 Rp350.000
33 62113-74L00-000 BRACE, RR FLR SIDE MBR NO.1 RH 1 Rp353.000
34 62115-74L00-000 BRACKET, ABS SENSOR 1 Rp358.000
35 62116-79M00-000 EXTENSION, RR FL SIDE MBR RR RH 1 Rp350.000
36 62125-74L00-000 BRACKET, COIL SPRING 1 Rp358.000
37 62114-68L00-000 REINF, SHIPPING 1 Rp350.000
38 62121-79M00-000 MEMBER, REAR FLOOR SIDE RR 1 Rp1.437.000
39 62130-79M00-000 BRACKET, TRAILING ARM RH 1 Rp479.500
40 62140-79P00-000 HANGER, MUFFLER RR RH 1 Rp350.000
41 62151-79M00-000 REINF, RR SEAT BELT SIDE RH 1 Rp350.000
42 62152-79M00-000 BRACE, RR FLR SIDE MBR NO.2 RH 1 Rp358.000
43 62210-79M00-000 COMPARTMENT, RR FLR SIDE RH 1 Rp1.427.000
44 62114-68L00-000 REINF, SHIPPING 1 Rp350.000
45 62121-79M00-000 MEMBER, REAR FLOOR SIDE RR 1 Rp1.437.000
46 62115-74L00-000 BRACKET, ABS SENSOR 1 Rp358.000
47 62125-74L00-000 BRACKET, COIL SPRING 1 Rp358.000
48 62311-79M00-000 MEMBER, REAR FLOOR SIDE FR LH 1 Rp1.427.000
49 62312-79P00-000 EXTENSION, RR FL SIDE MBR FR LH 1 Rp350.000
50 62313-74L00-000 BRACE, RR FLR SIDE MBR NO.1 LH 1 Rp353.000
51 62316-79M00-000 EXTENSION, RR FL SIDE MBR RR LH 1 Rp350.000
52 62330-79M00-000 BRACKET, TRAILING ARM LH 1 Rp479.500
53 62351-79M00-000 REINF, RR SEAT BELT SIDE LH 1 Rp350.000
54 62352-79M00-000 BRACE, RR FLR SIDE MBR NO.2 LH 1 Rp358.000
55 62410-79M00-000 COMPARTMENT, RR FLR SIDE LH 1 Rp1.427.000
56 62600-79P00-000 MEMBER, REAR FLOOR FR 1 Rp3.279.500
57 62700-79P00-000 CROSSMEMBER, RR FLOOR CTR 1 Rp2.873.500
58 62800-79P00-000 CROSSMEMBER, RR FLOOR RR 1 Rp3.279.500
59 65500-79P00-000 PANEL, BACK 1 Rp2.835.000
60 65540-79M00-000 •HANGER, MUFFLER RR LH 1 Rp350.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
