AVENIS 125

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT FORK DAMPERSTEERING STEMFRONT WHEELFRONT CALIPERFRONT MASTER CYLINDERREAR SHOCK ABSORBERREAR WHEEL

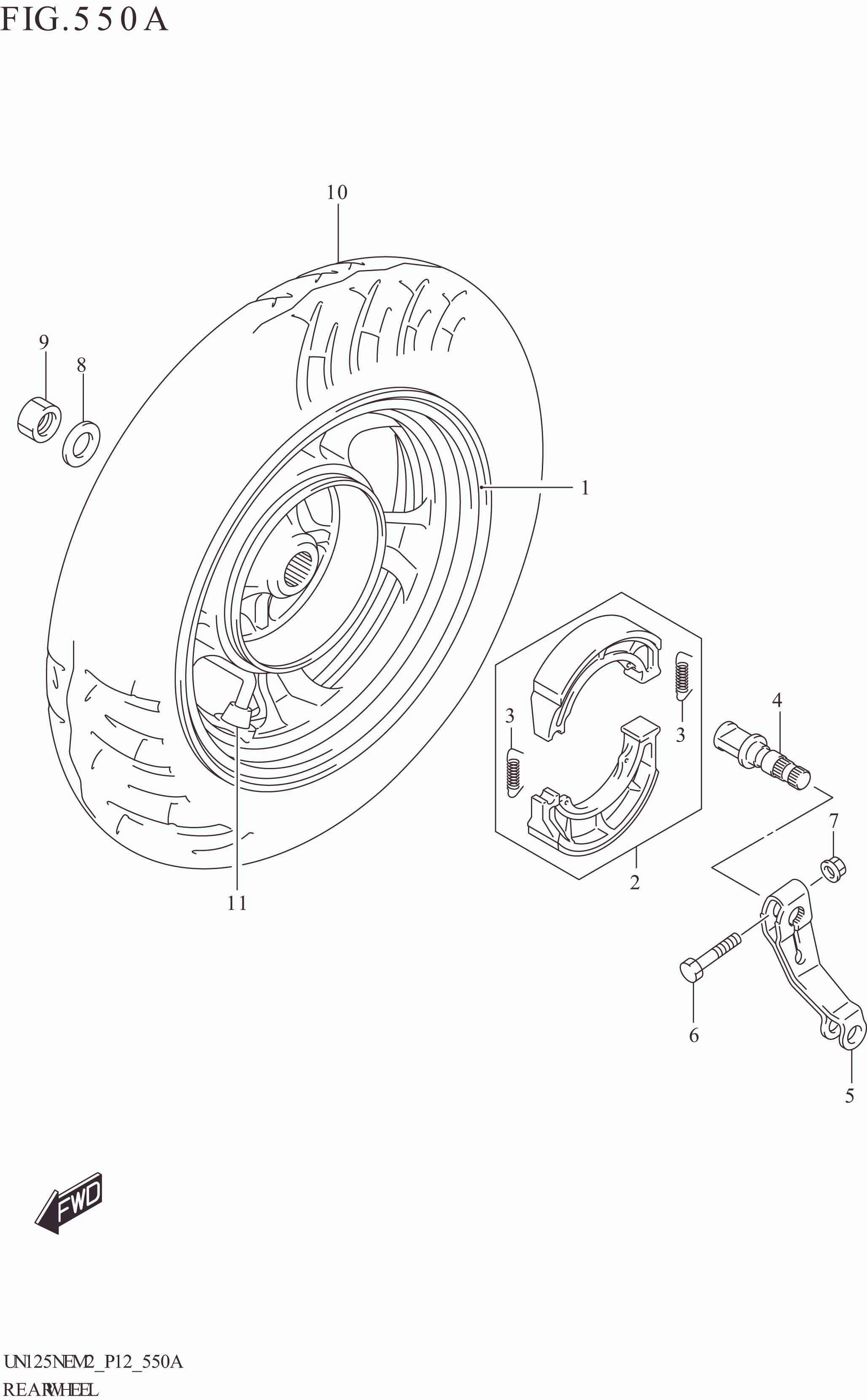

REAR WHEEL

REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-1 64150-08K01-019
SUB: 64150-08K00-019		 WHEEL,REAR (10X2.15,BLACK) 1 Rp1.387.500 BLACK
1-2 64150-08K10-019 WHEEL,REAR (10X2.15,BLACK) 1 Rp1.365.000
2 64400-08K10-000 SHOE SET,REAR BRAKE 1 Rp139.500
3 54424-28G00-000 .SPRING 2 Rp10.500
4 64441-09J20-000 CAM,REAR BRAKE 1 Rp46.500
5 64451-09J80-000 LEVER,REAR BRAKE CAM 1 Rp38.000
6 09100-06139-000 BOLT (6X31) 1 Rp4.000
7 08316-1006A-000 NUT (6X12) 1 Rp2.000
8 64723-39J00-000 WASHER,REAR AXLE 1 Rp19.000
9 08319-2116A-000 NUT 1 Rp55.500
10 55110-25J01-000 TIRE 1 Rp748.000
11 43130-41D90-000 VALVE ASSY,WHEEL RIM (PVR70) 1 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
