Preview Engine Transmission Electrical Suspension Body

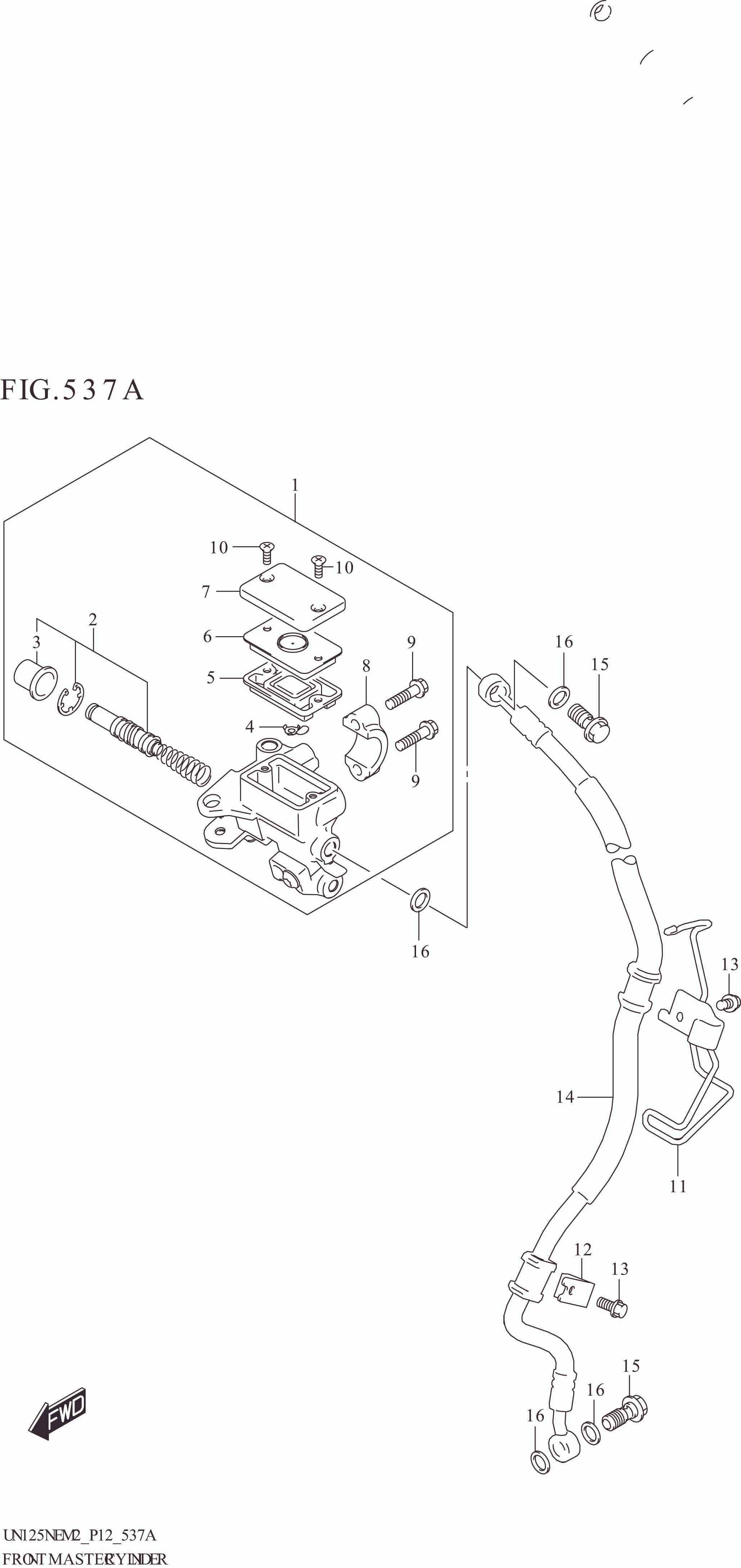

No	No. Part	Description	Qty	Price Per Pcs
1	59600-14L00-000	CYLINDER ASSY,FRONT MASTER	1	Rp852.000
2	59600-46810-000	.PISTON & CUP SET	1	Rp292.500
3	59666-44300-000	..BOOT	1	Rp16.000
4	59664-32F00-000	.PROTECTOR	1	Rp20.500
5	DISCONTINUE SUB: 59667-04700-000	.DIAPHRAGM	1	-
6	59668-14F00-000	.PLATE,DIAPHRAGM	1	Rp73.000
7	59669-21D20-000	.CAP	1	Rp40.000
8	59671-36500-000	.HOLDER,MASTER CYLINDER	1	Rp23.000
9	59675-06F10-000	.BOLT (6X22)	2	Rp4.500
10	69689-49300-000	.SCREW	2	Rp3.000
11	59260-14L00-000	CLAMP,FR BRAKE HOSE	1	Rp36.000
12	59267-08K00-000	CLAMP,BRAKE HOSE	1	Rp11.500
13	01547-0610A-000 SUB: 01547-0612A-000	BOLT	2	Rp3.000
14	59480-14L00-000	HOSE,FRONT BRAKE	1	Rp408.500
15	59492-30H30-000	BOLT,BRAKE FLUID	2	Rp26.500
16	09168-10033-000	WASHER (10.2X15X1.4)	4	Rp8.500
