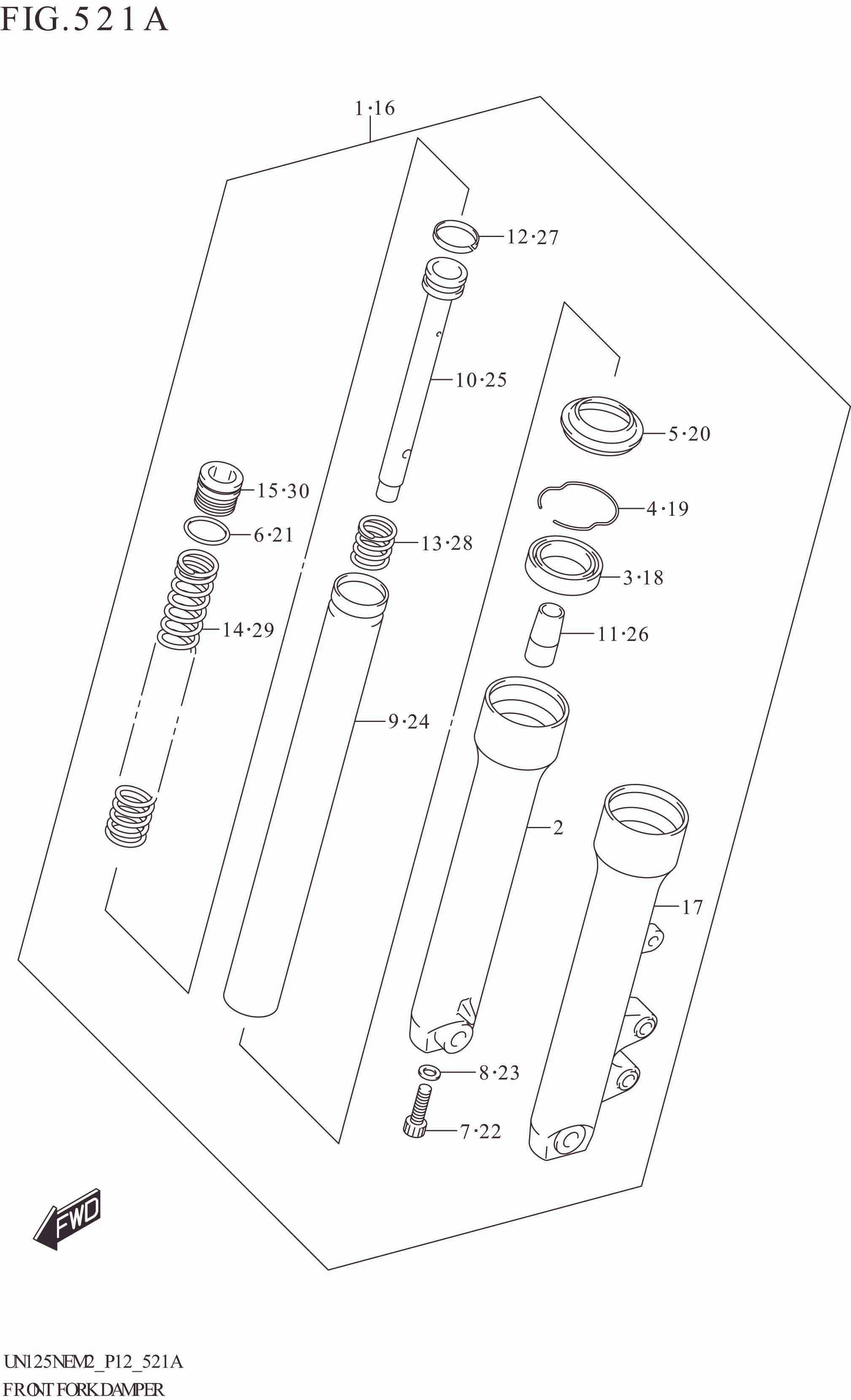

No	No. Part	Description	Qty	Price Per Pcs
1	51103-44K00-291	DAMPER ASSY,FR FORK,R (BLACK)	1	Rp1.168.500
2	51131-44K00-291	.TUBE,OUTER,R (BLACK)	1	Rp387.000
3	51153-08K10-000	.SEAL,OIL	1	Rp85.000
4	51156-33G10-000	.RING, SNAP	1	Rp5.500
5	51173-33G10-000	.SEAL, DUST	1	Rp42.500
6	51117-33G10-000	.O RING	1	Rp7.000
7	51147-33G10-000	.BOLT	1	Rp19.000
8	51148-33G10-000	.GASKET	1	Rp9.500
9	51110-08K10-000	.TUBE, INNER	1	Rp484.000
10	51146-44K00-000	.CYLINDER,FRONT FORK	1	Rp56.500
11	51195-33G50-000	.OIL LOCK PIECE	1	Rp27.500
12	51196-33G10-000	.RING, PISTON	1	Rp9.000
13	51177-33G10-000	.SPRING, REBOUND	1	Rp13.000
14	51171-44K00-000	.SPRING,FRONT FORK	1	Rp77.000
15	51351-33G10-000	.BOLT	1	Rp44.000
16	51104-44K00-291	DAMPER ASSY,FR FORK,L (BLACK)	1	Rp1.168.500
17	51141-44K00-291	.TUBE,OUTER,L (BLACK)	1	Rp387.000
18	51153-08K10-000	.SEAL,OIL	1	Rp85.000
19	51156-33G10-000	.RING, SNAP	1	Rp5.500
20	51173-33G10-000	.SEAL, DUST	1	Rp42.500
21	51117-33G10-000	.O RING	1	Rp7.000
22	51147-33G10-000	.BOLT	1	Rp19.000
23	51148-33G10-000	.GASKET	1	Rp9.500
24	51110-08K10-000	.TUBE, INNER	1	Rp484.000
25	51146-44K00-000	.CYLINDER,FRONT FORK	1	Rp56.500
26	51195-33G50-000	.OIL LOCK PIECE	1	Rp27.500
27	51196-33G10-000	.RING, PISTON	1	Rp9.000
28	51177-33G10-000	.SPRING, REBOUND	1	Rp13.000
29	51171-44K00-000	.SPRING,FRONT FORK	1	Rp77.000
30	51351-33G10-000	.BOLT	1	Rp44.000
