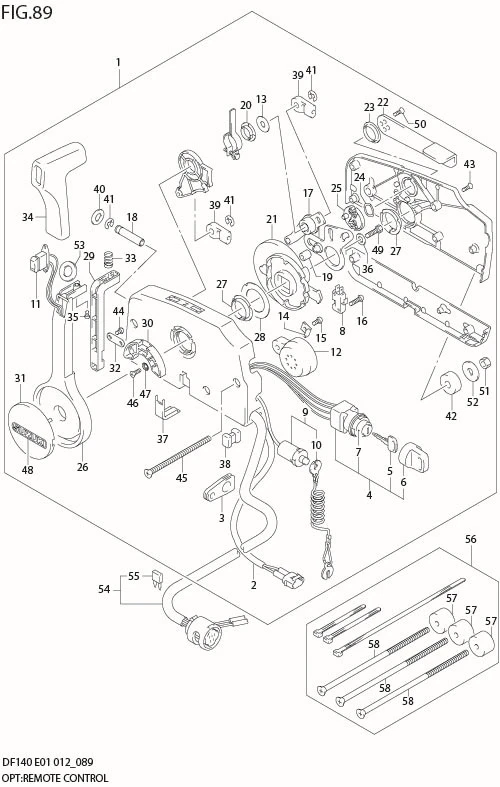

FIG 89 OPT:REMOTE CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-93J62-000 SUB: 67200-93J06-000	REMOTE CONTROL ASSY	1	Rp6.157.500
2	36646-93J01-000	.WIRE ASSY, PTT SW ADAPTER	1	Rp444.500
3	36628-92E00-000	.GROMMET, WIRE HARNESS	1	Rp42.000
4	37110-93J02-000 SUB: 37110-93J01-000	.SWITCH ASSY, IGNITION	1	Rp1.295.500
5-1	DISCONTINUE SUB: 37141-99E00-000	..KEY (931)	1	-
5-2	DISCONTINUE SUB: 37141-99E10-000	..KEY (932)	1	-
5-3	DISCONTINUE SUB: 37141-99E20-000	..KEY (933)	1	-
5-4	DISCONTINUE SUB: 37141-99E30-000	..KEY (934)	1	-
5-5	DISCONTINUE SUB: 37141-99E40-000	..KEY (935)	1	-
5-6	DISCONTINUE SUB: 37141-99E50-000	..KEY (936)	1	-
5-7	DISCONTINUE SUB: 37141-99E60-000	..KEY (937)	1	-
5-8	DISCONTINUE SUB: 37141-99E70-000	..KEY (938)	1	-
5-9	DISCONTINUE SUB: 37141-99E80-000	..KEY (939)	1	-
5-10	DISCONTINUE SUB: 37141-99E90-000	..KEY (940)	1	-
5-11	DISCONTINUE SUB: 37141-99EA0-000	..KEY (941)	1	-
5-12	DISCONTINUE SUB: 37141-99EB0-000	..KEY (942)	1	-
6	37143-99E00-000	..CAP, KEY	1	Rp26.000
7	37149-93J00-000	..CAP, CYLINDER BODY	1	Rp87.500
8	37721-93J91-000 SUB: 37721-93J90-000	.SWITCH, NEUTRAL	1	Rp398.000
9	37820-93J05-000 SUB: 37820-93J03-000	.SWITCH ASSY, EMERGENCY	1	Rp520.000
10	37823-92E02-000 SUB: 37823-92E01-000	..PLATE	1	Rp221.500
11	37850-90J06-000 SUB: 37850-90J05-000	.SWITCH ASSY, PTT	1	Rp845.500
12	38500-93J90-000	.BUZZER	1	Rp297.000
13	67212-95600-000	.WASHER	1	Rp25.500
14	67213-92E00-000	.BRACKET, BUZZER	1	Rp35.000
15	DISCONTINUE SUB: 09125-05042-000	.SCREW (5X10)	1	-
16	67296-92E10-000	.SCREW, NEUTRAL SW	2	Rp17.000
17	67220-95630-000	.PLATE ASSY	1	Rp654.500
18	67223-99E10-000	.KNOB, BRAKE ADJ	1	Rp59.000
19	67229-95600-000	.ROLLER	1	Rp54.500
20	67232-95600-000	.BUSH	1	Rp44.000
21	DISCONTINUE SUB: 67238-87D00-000	.GEAR, DRIVE	1	-
22	67241-99E10-000	.LEVER, FREE THROTTLE	1	Rp177.000
23	67243-95600-000	.BUSH	1	Rp30.500
24	67244-95600-000	.WASHER, WAVE	1	Rp27.500
25	67245-95600-000	.DRUM, FREE THROTTLE	1	Rp194.000
26	67251-99E10-000	.LEVER, HANDLE	1	Rp617.000
27	67252-95600-000	.BUSH	2	Rp37.500
28	67253-95600-000	.WASHER	1	Rp37.500
29	67255-99E00-000	.ARM, LOCK	1	Rp143.000
30	67256-95600-000	.HOLDER, NEUT LOCK	1	Rp80.500
31	67257-99E00-000	.CAP, LEVER	1	Rp77.000
32	67258-99E00-000	.BRACKET, LOCK ARM	1	Rp31.000
33	67259-87D00-000	.SPRING, NEUTRAL ARM	1	Rp45.500
34	67261-99E00-000	.GRIP	1	Rp354.000
35	67296-94310-000	.SCREW	1	Rp14.500
36	67264-95600-000	.WASHER	1	Rp22.000
37-1	67267-95610-000	.COVER, WIRE	1	Rp44.500	FOR 67200-93J03
37-2	67267-93J00-000	.COVER, WIRE	1	Rp72.500	FOR 67200-93J06
38	67273-95601-000 SUB: 67273-95600-000	.SPACER	1	Rp35.000
39	67275-95600-000	.END, CABLE	2	Rp70.500
40	67288-92E00-000	.WASHER, BRAKE ADJ KNOB	1	Rp24.500
41	67292-94300-000	.E RING	3	Rp11.000
42	67294-95600-000	.SPACER	3	Rp35.000
43	67296-90J00-000	.SCREW	5	Rp17.000
44	67296-94300-000	.SCREW	2	Rp10.500
45	67296-95600-000	.SCREW	3	Rp47.000
46	67296-95610-000	.SCREW	2	Rp23.500
47	67297-95600-000	.WASHER	2	Rp23.500
48	68165-16B01-13L SUB: 68165-16B00-13L	.EMBLEM	1	Rp47.500
49	09100-08232-000	.BOLT	1	Rp29.000
50	DISCONTINUE SUB: 09126-05003-000	.SCREW	2	-
51	09140-06020-000	.NUT	3	Rp13.500
52	09160-06104-000	.WASHER (6.5X24X2)	3	Rp18.000
53	37859-90J00-000	.SPACER	1	Rp26.500
54-1	36620-93J04-000 SUB: 36620-93J02-000	WIRE ASSY, REMOTE CONTROL	1	Rp2.888.000	L:5000
54-2	36620-93J54-000 SUB: 36620-93J52-000	WIRE ASSY, REMOTE CONTROL	1	Rp2.971.000	L:3500
54-3	36620-93J64-000 SUB: 36620-93J62-000	WIRE ASSY, REMOTE CONTROL	1	Rp3.090.000	L:6500
55	09481-10501-000	.FUSE (10A)	1	Rp12.000
56	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMOCON KIT	1	Rp351.000
57	67294-95600-000	.SPACER	3	Rp35.000
58	67296-95620-000	.SCREW	3	Rp68.000
