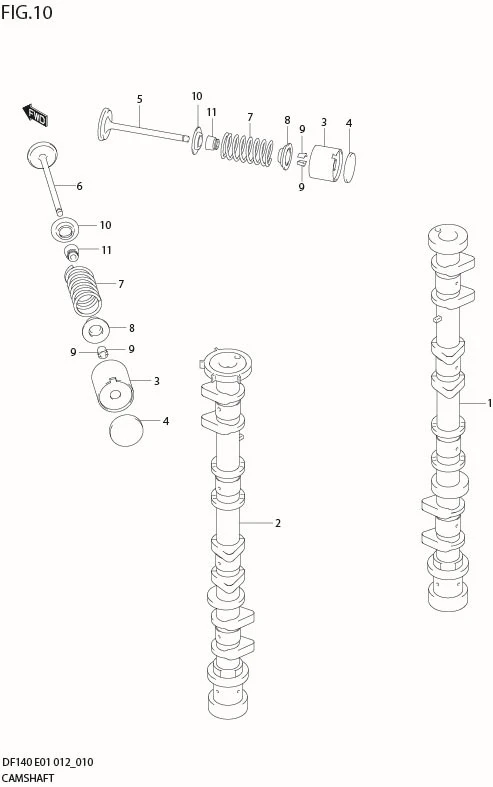

FIG 10 CAMSHAFT (DF140T E40)

FIG 10  CAMSHAFT (DF140T E40)
No No. Part Description Qty Price Per Pcs Remarks
1 12711-92J00-000 CAMSHAFT, INTAKE 1 Rp3.414.000
2 DISCONTINUE
SUB: 12720-92J00-000
CAMSHAFT, EXHAUST 1 -
3 12891-69G00-000 TAPPET 16 Rp274.500
4-18 12892-69G10-260 SHIM, TAPPET 0 Rp80.000
4-20 12892-69G10-265 SHIM, TAPPET 0 Rp83.000
4-19 12892-69G10-263 SHIM, TAPPET 0 Rp83.500
4-21 12892-69G10-268 SHIM, TAPPET 0 Rp85.000
4-22 12892-69G10-270 SHIM, TAPPET 0 Rp83.000
4-23 12892-69G10-273 SHIM, TAPPET 0 Rp84.500
4-24 12892-69G10-275 SHIM, TAPPET 0 Rp83.500
4-25 12892-69G10-278 SHIM, TAPPET 0 Rp83.500
4-26 12892-69G10-280 SHIM, TAPPET 0 Rp83.000
4-27 12892-69G10-283 SHIM, TAPPET 0 Rp85.000
4-28 12892-69G10-285 SHIM, TAPPET 0 Rp85.000
4-29 12892-69G10-288 SHIM, TAPPET 0 Rp85.000
4-30 12892-69G10-290 SHIM, TAPPET 0 Rp85.000
4-31 DISCONTINUE
SUB: 12892-69G10-293
SHIM, TAPPET 0 -
4-32 12892-69G10-295 SHIM, TAPPET 0 Rp83.500
4-33 12892-69G10-298 SHIM, TAPPET 0 Rp85.000
4-34 12892-69G10-300 SHIM, TAPPET 0 Rp83.000
4-16 12892-69G10-255 SHIM, TAPPET 0 Rp83.000
4-1 12892-69G10-218 SHIM, TAPPET 0 Rp85.000
4-2 12892-69G10-220 SHIM, TAPPET 0 Rp83.000
4-3 12892-69G10-223 SHIM, TAPPET 0 Rp84.500
4-4 12892-69G10-225 SHIM, TAPPET 0 Rp84.500
4-5 12892-69G10-228 SHIM, TAPPET 0 Rp84.500
4-6 12892-69G10-230 SHIM, TAPPET 0 Rp84.500
4-7 12892-69G10-233 SHIM, TAPPET 0 Rp84.500
4-8 12892-69G10-235 SHIM, TAPPET 0 Rp84.500
4-9 12892-69G10-238 SHIM, TAPPET 0 Rp84.500
4-10 12892-69G10-240 SHIM, TAPPET 0 Rp84.500
4-11 12892-69G10-243 SHIM, TAPPET 0 Rp82.500
4-12 12892-69G10-245 SHIM, TAPPET 0 Rp82.500
4-13 12892-69G10-248 SHIM, TAPPET 0 Rp83.000
4-14 12892-69G10-250 SHIM, TAPPET 0 Rp80.000
4-15 12892-69G10-253 SHIM, TAPPET 0 Rp80.000
4-17 12892-69G10-258 SHIM, TAPPET 0 Rp83.500
5 12911-86FA2-000
SUB: 12911-86FA1-000
VALVE, INTAKE 8 Rp216.000
6 12915-86F51-000
SUB: 12915-86F50-000
VALVE, EXHAUST 8 Rp332.500
7 12921-90J01-000
SUB: 12921-90J00-000
SPRING, VALVE 16 Rp62.500
8 12931-90J00-000 RETAINER, VALVE SPRING 16 Rp41.500
9 12932-85FA0-000 COTTER, VALVE 32 Rp17.000
10 DISCONTINUE
SUB: 12933-86510-000
SEAT, VALVE SPRING 16 -
11 09289-06003-000 OIL SEAL (6X12.8X10.2) 16 Rp43.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
