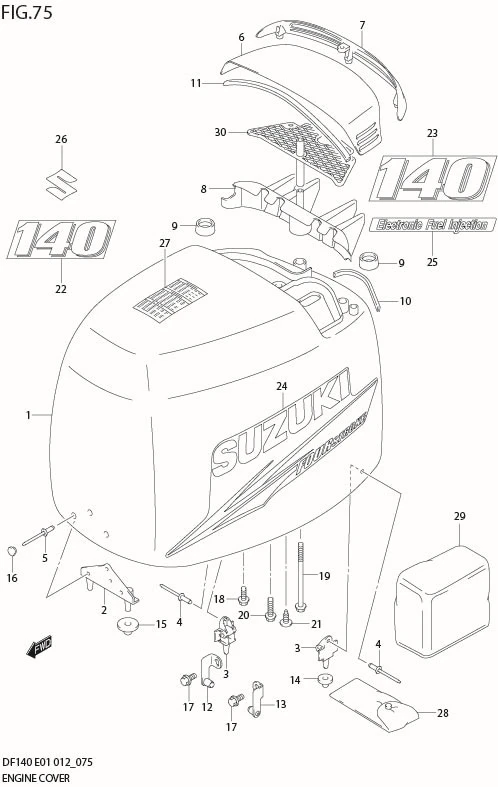

FIG 75 ENGINE COVER (DF140Z E40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61410-92875-0EP	COVER SET, ENGINE (BLACK)	1	Rp8.314.500
2	61621-87D02-000	.BRACKET, FASTENER FR	1	Rp271.500
3	61644-90J00-000	.BRACKET, FASTENER RR	2	Rp292.000
4	09229-04025-000	.RIVET	4	Rp25.000
5	09229-04046-000	.RIVET	3	Rp26.000
6	61431-92J02-0EP SUB: 61431-92J01-0EP	.HANDLE, TILT UP (BLACK)	1	Rp2.552.500
7	61432-92J00-000	.LOUVER, TILT UP HANDLE	1	Rp491.500
8	61433-92J00-000	.COVER, AIR INTAKE INNER	1	Rp454.000
9	61438-92J00-000	.CUSHION, AIR INTAKE INNER	2	Rp65.500
10	61439-90J00-000	.SEAL, TILT UP HANDLE	1	Rp32.500
11	61439-92J00-000	.SEAL, TILT UP HANDLE	1	Rp79.000
12	61680-90J01-000	.FASTENER, REAR STBD	1	Rp138.000
13	61690-90J01-000	.FASTENER, REAR PORT	1	Rp138.000
14	61619-98J00-000 SUB: 09329-10022-000	.CUSHION	2	Rp50.000
15	09329-10023-000	.CUSHION	2	Rp21.000
16	09250-12013-000	.CAP	3	Rp10.500
17	01550-06127-000	.BOLT	3	Rp17.000
18	01550-06167-000	.BOLT	4	Rp16.500
19	01550-06957-000	.BOLT	1	Rp24.000
20	09103-06093-000	.BOLT (6X20)	3	Rp13.000
21	03542-06169-000	.SCREW	3	Rp16.000
22	61422-92J12-000	.MARK, EMBLEM FRONT	1	Rp115.000
23	61435-92J22-000	.MARK, EMBLEM REAR	1	Rp127.000
24-1	61443-90J42-000	.STRIPE, ENGINE COVER STBD	1	Rp592.000
24-2	61453-90J42-000	.STRIPE, ENGINE COVER PORT	1	Rp592.000
25	61446-87L12-000	.DECAL, EFI	1	Rp38.000
26	68111-18G20-000	.EMBLEM (S)	1	Rp208.500
27	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500
28	09800-81840-000	TOOL SET	1	Rp239.000
29	DISCONTINUE SUB: 68110-87D01-000	COVER, WEATHER	1	-	OPT
30	61580-92J00-000	PLATE, AIR INTAKE INNER	1	Rp2.318.000	OPT
