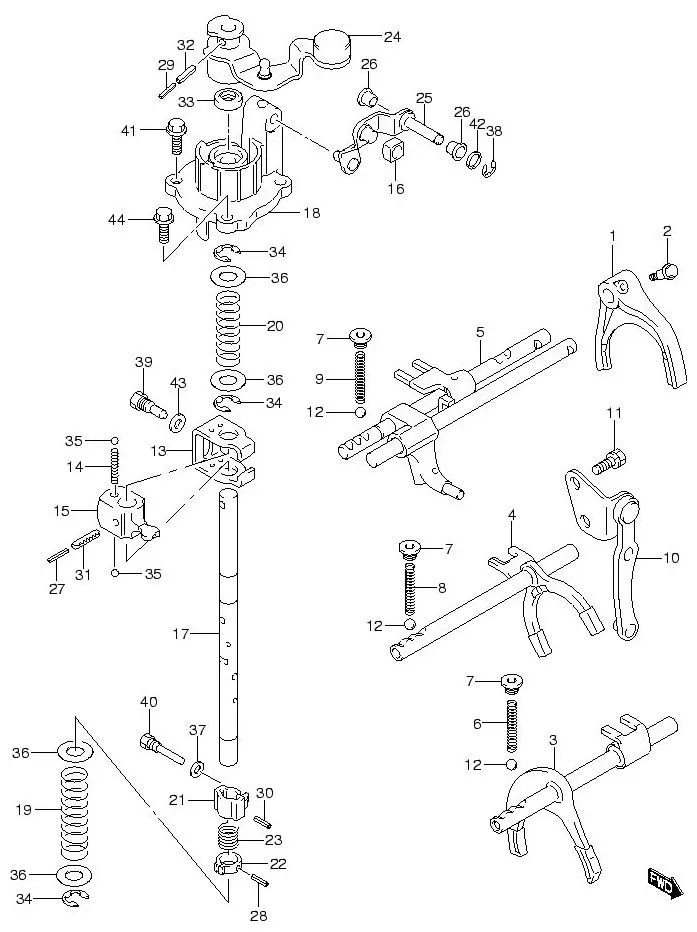

FIG.25 MT GEAR SHIFT FORK (MT)

FIG.25 MT GEAR SHIFT FORK (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 25231-54G01-000 FORK, 5TH GEAR SHIFT 1 Rp647.500
2 25291-70C00-000 BOLT, GEAR SHIFT FORK SHAFT 1 Rp19.500
3 DISCONTINUE
SUB: 25401-55G00-000		 SHAFT, LOW SPEED GEAR SHIFT 1 -
4 DISCONTINUE
SUB: 25402-55G00-000		 SHAFT, HIGH SPEED GEAR SHIFT 1 -
5 25403-51KA0-000
SUB: 25403-55G00-000		 SHAFT, 5TH & REV GEAR SHIFT 1 Rp1.592.500
6 25415-70C01-000 SPRING, LOW SPEED LOCATING 1 Rp39.000
7 DISCONTINUE
SUB: 25416-70C00-000		 BOLT, GEAR SHIFT LOCATING 3 -
8 25425-70C02-000 SPRING, HIGH SPEED LOCATING 1 Rp37.000
9 25435-70C02-000 SPRING, 5TH SPEED LOCATING 1 Rp39.000
10 25460-70C00-000 LEVER, REVERSE GEAR SHIFT 1 Rp200.000
11 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000
12 06111-12004-000 BALL 3 Rp14.000
13 25311-59J20-000
SUB: 25311-79J00-000		 PLATE, GEAR SHIFT INTEROCK 1 Rp111.000
14 DISCONTINUE
SUB: 25312-59J00-000		 SPRING, GEAR SHIFT INTERLOCK 1 -
15 DISCONTINUE
SUB: 25541-79J20-000		 LEVER, GEAR SHIFT & SELECT 1 -
16 25559-79J00-000 BUSH, SELECT LEVER 1 Rp48.000
17 DISCONTINUE
SUB: 25571-79J00-000		 SHAFT, GEAR SHIFT & SELECT 1 -
18 DISCONTINUE
SUB: 25573-79J01-000		 CASE, GEAR SHIFT GUIDE 1 -
19 DISCONTINUE
SUB: 25576-59J00-000		 SPRING, LOW SPEED SELECT 1 -
20 DISCONTINUE
SUB: 25576-83E00-000		 SPRING, REV SELECT 1 -
21 25581-51K01-000
SUB: 25581M50F00-000		 CAM, 5TH & REVERSE GEAR SHIFT 1 Rp199.500
22 DISCONTINUE
SUB: 25582-60B51-000		 GUIDE, 5TH & REV GEAR SHF CAM 1 -
23 25583M60B50-000 SPRING, CAM GUIDE RETURN 1 Rp6.500
24 DISCONTINUE
SUB: 25610-79J00-000		 LEVER, SHIFT CABLE 1 -
25 DISCONTINUE
SUB: 25620-79J00-000		 LEVER, SELECT CABLE 1 -
26 25625-79J00-000 BUSH, SELECT LEVER 2 Rp24.500
27 09205M03016-000 SPRING PIN (3.5X28) 1 Rp4.500
28 09205M03035-000 SPRING PIN (3X22) 1 Rp6.500
29 09205M03049-000
SUB: 09205M03037-000		 SPRING PIN (3X25) 1 Rp6.500
30 09205M04009-000 SPRING PIN (4.5X20) 1 Rp5.500
31 09205M06022-000
SUB: 09205M06004-000		 SPRING PIN (6X28) 1 Rp6.500
32 09205M06016-000
SUB: 09205-06007-000		 SPRING PIN (6X25) 1 Rp4.500
33 09283M14005-000
SUB: 09283-14006-000		 SEAL, OIL (14X22X6) 1 Rp9.000
34 08332-1112A-000 E RING 3 Rp14.000
35 06111M07004-000 BALL 2 Rp3.000
36 08212M14301-000 WASHER 4 Rp4.500
37 08322M0108A-000 WASHER 1 Rp5.500
38 08332-1106A-000
SUB: 08332B1106AN000		 E RING 1 Rp8.500
39 DISCONTINUE
SUB: 25321-86G00-000		 BOLT, GEAR SHIFT INTERLOCK 1 -
40 DISCONTINUE
SUB: 25584-70C00-000		 BOLT, 5TH TO REV INTLK GUIDE 1 -
41 09103-08419-000 BOLT (8X25) 2 Rp14.000
42 08322M0108A-000 WASHER 1 Rp5.500
43 08322M0110A-000 WASHER 1 Rp4.500
44 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
