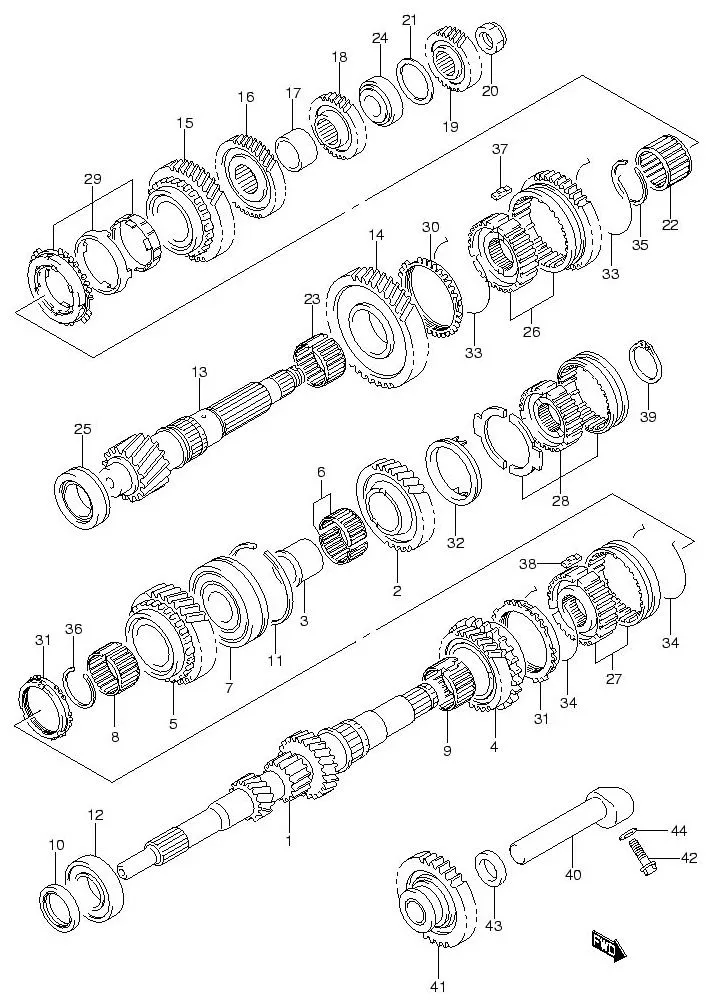

FIG.24 MT TRANSMISSION GEAR (MT)

FIG.24 MT TRANSMISSION GEAR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111-59J02-000
SUB: 24111-59J00-000		 SHAFT, TRANSAXLE INPUT 1 Rp3.911.000
2 24114-71C01-000 GEAR, INPUT SHAFT 5TH 1 Rp1.456.000
3 24119-70C00-000 SPACER, INPUT SHAFT 5TH GEAR 1 Rp255.000
4 DISCONTINUE
SUB: 24230-68J01-000		 GEAR, INPUT SHAFT 3RD 1 -
5 24240-71C00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.370.500
6 24200-70800-000 BEARING SET, 5TH GEAR NEEDLE 1 Rp261.000
7 24165-77M00-000
SUB: 09262B25106N000		 BEARING (25X72X19) 1 Rp220.000
8 09263-30030-000 BEARING (30X35X24.8) 1 Rp135.500
9 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
10 09283-25088-000 SEAL, OIL (25X38X6) 1 Rp60.000
11 09380-72002-000 RING, SNAP 1 Rp42.500
12 24155-77M00-000
SUB: 08133B63057N000		 BEARING 1 Rp128.500
13 DISCONTINUE
SUB: 24131-81K00-000		 SHAFT, TRANSMISSION COUNTER 1 -
14 DISCONTINUE
SUB: 24311-71C00-000		 GEAR, COUNTERSHAFT 1ST 1 -
15 24321-55G01-000
SUB: 24321-55G00-000		 GEAR, COUNTERSHAFT 2ND 1 Rp1.279.500
16 DISCONTINUE
SUB: 24331-71C00-000		 GEAR, COUNTERSHAFT 3RD 1 -
17 DISCONTINUE
SUB: 24336-70C00-000		 SPACER, 3RD & 4TH GEAR 1 -
18 24341-71C00-000 GEAR, COUNTERSHAFT 4TH 1 Rp1.001.000
19 24351-71C00-000 GEAR, COUNTERSHAFT 5TH 1 Rp1.019.500
20 09159-20009-000 NUT 1 Rp74.000
21-12 09181-41015-000 SHIM (T:1.20) 0 Rp44.500
21-11 09181-41014-000 SHIM (T:1.15) 0 Rp44.000
21-10 09181-41013-000 SHIM (T:1.10) 0 Rp44.000
21-9 09181-41012-000 SHIM (T:1.05) 0 Rp44.000
21-8 09181-41011-000 SHIM (T:1.00) 0 Rp47.500
21-7 09181-41010-000 SHIM (T:0.95) 0 Rp44.000
21-5 09181-41008-000 SHIM (T:0.85) 0 Rp44.000
21-4 09181-41007-000 SHIM (T:0.80) 0 Rp47.500
21-3 09181-41006-000 SHIM (T:0.75) 0 Rp44.000
21-2 09181-41005-000 SHIM (T:0.70) 0 Rp44.000
21-1 09181-41004-000 SHIM (T:0.65) 0 Rp44.000
21-6 09181-41009-000 SHIM (T:0.90) 0 Rp44.000
22 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
23 09263-37005-000 BEARING (37X42X23.8) 1 Rp189.500
24 09265-25041-000 BEARING (25X52X19.25) 1 Rp283.500
25 09265-30021-000 BEARING (30X55X17) 1 Rp321.000
26 24400-55G00-000 HUB ASSY, LOW SPEED SYNC 1 Rp1.870.500
27 24410-77MA0-000
SUB: 24410-59J00-000		 HUB ASSY, HIGH SPEED SYNC 1 Rp1.032.000
28 24420-55G01-000
SUB: 24420-55G00-000		 HUB ASSY, 5TH SPEED SYNC 1 Rp1.479.000
29 24430-55G01-000
SUB: 24430-55G00-000		 RING ASSY, 2ND GEAR SYNC 1 Rp1.048.500
30 24431-70C00-000 RING, 1ST GEAR SYNC 1 Rp315.500
31 24432-60A00-000 RING, HIGH SPEED SYNC 2 Rp562.000
32 24435-84A20-000
SUB: 24435-84A00-000		 RING, 5TH SPEED SYNC 1 Rp280.500
33 24441-70C00-000 SPRING, LOW SPEED SYNC 2 Rp23.000
34 24442-70C00-000 SPRING, HIGH SPEED SYNC 2 Rp23.000
35 24451-70C00-000 CIRCLIP, LOW SPEED SYNC 1 Rp31.000
36 24451-60B00-000 CIRCLIP, HIGH SPEED SYNC 1 Rp30.500
37 24471-70C00-000 KEY, LOW SPEED SYNCHRONIZER 3 Rp30.000
38 24472-60B00-000 KEY, HIGH SPEED SYNCHRONIZER 3 Rp25.000
39 08331-3124A-000
SUB: 08331-31246-000		 CIRCLIP 1 Rp15.000
40 DISCONTINUE
SUB: 24551-70C02-000		 SHAFT, TRANSAXLE REVERSE GEAR 1 -
41 24560-70C60-000
SUB: 24560-70C40-000		 GEAR, REVERSE IDLER 1 Rp924.000
42 24565-60B00-000 BOLT, REVERSE SHAFT 1 Rp21.500
43 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
44 09168M08030-000 GASKET (8.2X17X1) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
