SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.67 FRONT SUSPENSIONFIG.68 FRONT STABILIZERFIG.69 FRONT DRIVE SHAFT (MT)FIG.70 FRONT DRIVE SHAFT (AT)FIG.71 FRONT WHEEL HUBFIG.72 FRONT SUSPENSION FRAMEFIG.73 REAR SUSPENSION (STD)FIG.74 REAR SUSPENSION (DX)FIG.75 ROAD WHEEL/TIREFIG.76 STEERING WHEEL (STD)FIG.77 STEERING WHEEL (DX)FIG.78 STEERING COLUMNFIG.79 STEERING UNITFIG.80 PEDAL/PEDAL BRACKET (MT)FIG.81 PEDAL/PEDAL BRACKET (AT)FIG.82 BRACKE MASTER CYLINDERFIG.83 BRACKE PIPING (N/ABS)FIG.84 BRACKE PIPING (W/ABS)FIG.85 WHEEL SPEED SENSOR/ANTI LOCK BRAKE SYSTEMFIG.86 FRONT WHEEL BRAKEFIG.87 REAR WHEEL BRAKE (N/ABS)FIG.88 REAR WHEEL BRAKE (W/ABS)FIG.89 PARKING BRAKE

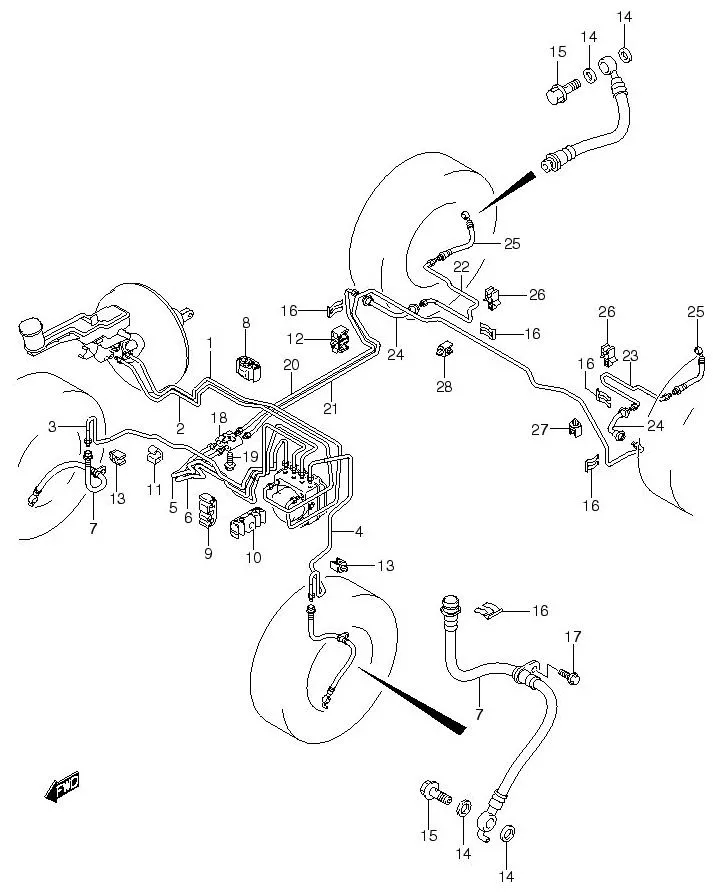

FIG.84 BRACKE PIPING (W/ABS)

FIG.84 BRACKE PIPING (W/ABS)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410B81K00N000		 PIPE, MA PRI TO UNIT 1 -
2 DISCONTINUE
SUB: 51420B81K00N000		 PIPE, MA SEC TO UNIT 1 -
3 51430-81K00-000
SUB: 51430B81K00N000		 PIPE, UNIT TO FR BK HOSE RH 1 Rp68.000
4 DISCONTINUE
SUB: 51440B81K00N000		 PIPE, UNIT TO FR BK HOSE LH 1 -
5 DISCONTINUE
SUB: 51450B81K00N000		 PIPE, UNIT TO JOINT RH 1 -
6 DISCONTINUE
SUB: 51460B81K00N000		 PIPE, UNIT TO JOINT LH 1 -
7 DISCONTINUE
SUB: 51550B80J00N000		 HOSE, FR BRAKE FLEXIBLE 2 -
8 51751-60B00-000 CLAMP, BRAKE PIPE DASH 2 Rp29.000
9 51751-77E00-000 CLAMP, BRAKE PIPE DASH 1 Rp34.500
10 51751-82CB0-000 CLAMP, BRAKE PIPE 4 1 Rp33.500
11 51752-77M00-000
SUB: 51752-70B00-000		 CLAMP, BRAKE PIPE DASH 1 Rp5.500
12 51761-77M30-000
SUB: 51761M76G00-000		 CLAMP, BRAKE PIPE FLOOR 1 Rp6.500
13 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE FR SIDE 2 Rp6.500
14 09161-10009-000 WASHER (10X15X1.5) 8 Rp12.500
15 09360-10026-000 UNION 4 Rp25.000
16 09383M13004-000
SUB: 09383-13003-000		 E RING 8 Rp7.000
17 01551-0816C-000 BOLT 2 Rp13.500
18 DISCONTINUE
SUB: 51630B82040N000		 JOINT, BRAKE 4 WAY 1 -
19 02162-0625A-000 SCREW 1 Rp3.500
20 DISCONTINUE
SUB: 51470B81K00N000		 PIPE, JOINT TO RR BK HOSE RH 1 -
21 DISCONTINUE
SUB: 51480B81K00N000		 PIPE, JOINT TO RR BK HOSE LH 1 -
22 DISCONTINUE
SUB: 51510B81K10N000		 PIPE, RR BK HOSE TO CLPR RH 1 -
23 51520-81K10-000
SUB: 51520B81K10N000		 PIPE, RR BK HOSE TO CLPR LH 1 Rp73.000
24 DISCONTINUE
SUB: 51570B80J00N000		 HOSE, RR BRAKE FLEXIBLE 2 -
25 DISCONTINUE
SUB: 51570B80J10N000		 HOSE, RR DISC FLEXIBLE 2 -
26 DISCONTINUE
SUB: 51761-79J10-000		 CLAMP, BRAKE PIPE AXLE NO.1 2 -
27 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE RR SIDE 1 Rp6.500
28 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP, BRAKE PIPE RR FLR 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
