SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.67 FRONT SUSPENSIONFIG.68 FRONT STABILIZERFIG.69 FRONT DRIVE SHAFT (MT)FIG.70 FRONT DRIVE SHAFT (AT)FIG.71 FRONT WHEEL HUBFIG.72 FRONT SUSPENSION FRAMEFIG.73 REAR SUSPENSION (STD)FIG.74 REAR SUSPENSION (DX)FIG.75 ROAD WHEEL/TIREFIG.76 STEERING WHEEL (STD)FIG.77 STEERING WHEEL (DX)FIG.78 STEERING COLUMNFIG.79 STEERING UNITFIG.80 PEDAL/PEDAL BRACKET (MT)FIG.81 PEDAL/PEDAL BRACKET (AT)FIG.82 BRACKE MASTER CYLINDERFIG.83 BRACKE PIPING (N/ABS)FIG.84 BRACKE PIPING (W/ABS)FIG.85 WHEEL SPEED SENSOR/ANTI LOCK BRAKE SYSTEMFIG.86 FRONT WHEEL BRAKEFIG.87 REAR WHEEL BRAKE (N/ABS)FIG.88 REAR WHEEL BRAKE (W/ABS)FIG.89 PARKING BRAKE

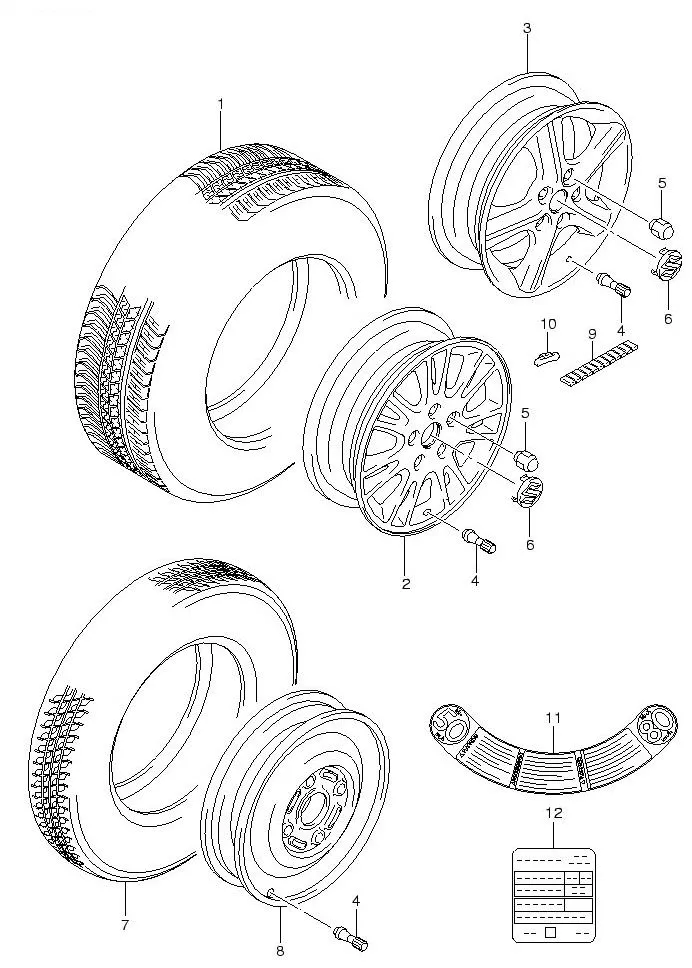

FIG.75 ROAD WHEEL/TIRE

FIG.75 ROAD WHEEL/TIRE
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 43110B81K10N000		 TIRE (205/60R16 92H) 4 -
1-1 DISCONTINUE
SUB: 43110B81K00N000		 TIRE (195/65R15 91H) 4 -
2 DISCONTINUE
SUB: 43210B81K50N27N		 WHEEL, AL (15X6J) (SILVER) 4 -
3 DISCONTINUE
SUB: 43210B81K60N27N		 WHEEL, AL (16X6J) (SILVER) 4 -
4 43130-60E10-000 VALVE, TIRE (TR414,BS) 5 Rp57.000
5 09159-12051-000 NUT 20 Rp46.000
6 43252-83S00-CZ2
SUB: 43252-63J10-CZ2		 CAP, WHEEL CENTER 4 Rp184.500
7 DISCONTINUE
SUB: 43180-80J11-000		 TIRE, SPARE (T135/90R16) 1 -
8 DISCONTINUE
SUB: 43290-80J10-000		 WHEEL, SPARE (16X4T) 1 -
9-7 43221-59J60-000 WEIGHT, WHEEL BALANCE (35GRAM) 0 Rp52.500 5DR:DX
9-10 43221-59J90-000 WEIGHT, WHEEL BALANCE (50GRAM) 0 Rp60.000 5DR:DX
9-9 43221-59J80-000 WEIGHT, WHEEL BALANCE (45GRAM) 0 Rp57.000 5DR:DX
9-8 43221-59J70-000 WEIGHT, WHEEL BALANCE (40GRAM) 0 Rp54.500 5DR:DX
9-6 43221-59J50-000 WEIGHT, WHEEL BALANCE (30GRAM) 0 Rp49.500 5DR:DX
9-4 43221-59J30-000 WEIGHT, WHEEL BALANCE (20GRAM) 0 Rp44.000 5DR:DX
9-3 43221-59J20-000 WEIGHT, WHEEL BALANCE (15GRAM) 0 Rp42.000 5DR:DX
9-2 43221-59J10-000 WEIGHT, WHEEL BALANCE (10GRAM) 0 Rp40.000 5DR:DX
9-1 43221-59J00-000 WEIGHT, WHEEL BALANCE (5GRAM) 0 Rp32.000 5DR:DX
9-5 43221-59J40-000 WEIGHT, WHEEL BALANCE (25GRAM) 0 Rp47.000 5DR:DX
10-4 DISCONTINUE
SUB: 43224-73H10-000		 WEIGHT, WHEEL BALANCE (20GRAM) 0 -
10-9 DISCONTINUE
SUB: 43231-54G10-000		 WEIGHT, WHEEL BALANCE (45GRAM) 0 -
10-8 DISCONTINUE
SUB: 43228-73H10-000		 WEIGHT, WHEEL BALANCE (40GRAM) 0 -
10-7 DISCONTINUE
SUB: 43227-73H10-000		 WEIGHT, WHEEL BALANCE (35GRAM) 0 -
10-6 DISCONTINUE
SUB: 43226-73H10-000		 WEIGHT, WHEEL BALANCE (30GRAM) 0 -
10-5 DISCONTINUE
SUB: 43225-73H10-000		 WEIGHT, WHEEL BALANCE (25GRAM) 0 -
10-3 DISCONTINUE
SUB: 43223-73H10-000		 WEIGHT, WHEEL BALANCE (15GRAM) 0 -
10-2 DISCONTINUE
SUB: 43222-73H10-000		 WEIGHT, WHEEL BALANCE (10GRAM) 0 -
10-1 43221-73H10-000 WEIGHT, WHEEL BALANCE (5GRAM) 0 Rp33.000
11 DISCONTINUE
SUB: 79167B60B12N000		 PLACARD, SPARE TIRE 1 -
12-1 79161-81K10-000 PLACARD, TIRE INFORMATION 1 - 4DR
12-2 79161-81K00-000 PLACARD, TIRE INFORMATION 1 - 5DR

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
