SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

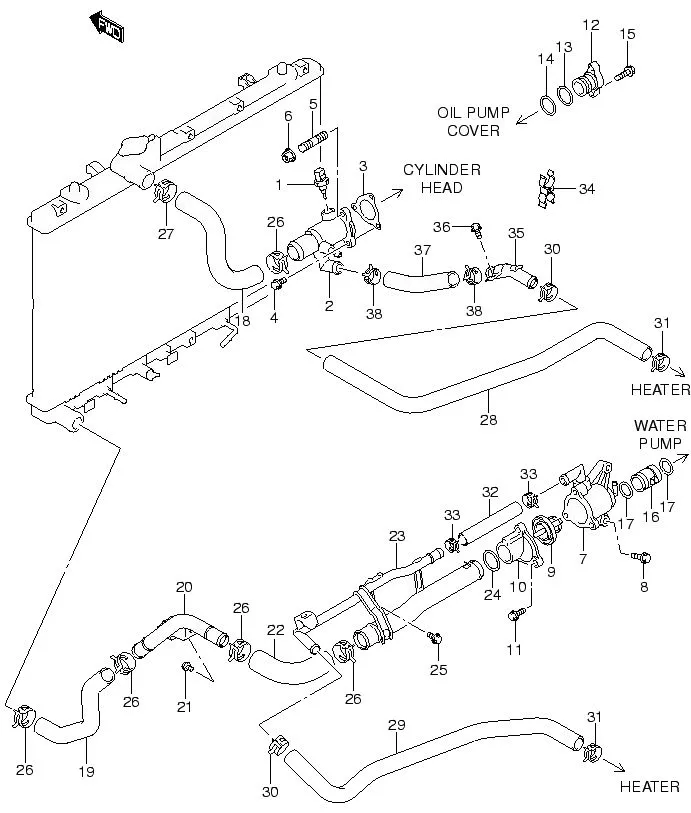

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17570-86G00-000 CAP, WATER OUTLET 1 Rp492.500
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
5 01421-0825A-000 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
7 17690-80JA0-000 CASE, THERMOSTAT 1 Rp757.000
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
9 17670-65D00-000 THERMOSTAT, WTR (82C) 1 Rp301.500
10 17561-80JA0-000 CAP, WATER THERMOSTAT 1 Rp205.500
11 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
12 17581-69G00-000 CAP, WATER OUTLET 1 Rp384.000
13 17582-54D00-000 O-RING, NO.1 (D:3.5,ID:30.7) 1 Rp29.000
14 17583-54D00-000 O-RING, NO.2 (D:3.8,ID:27.7) 1 Rp32.000
15 01550-0845A-000 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, CASE WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 2 Rp2.500
18 17852-80JA0-000
SUB: 17852B80JA0N000		 HOSE, RADIATOR INLET 1 Rp45.500
19 17854-80JA0-000
SUB: 17854B80JA0N000		 HOSE, RADIATOR OUTLET 1 Rp56.500
20 17860-80JA0-000 PIPE, WTR INLET NO.2 1 Rp399.000
21 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
22 DISCONTINUE
SUB: 17853B69G00N000		 HOSE, WATER INLET 1 -
23 17840-55GA0-000 PIPE, WATER INLET NO.1 1 Rp542.000
24 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 1 Rp2.500
25 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
26 09401-35403-000 CLIP 5 Rp46.500
27 09401-35403-000 CLIP 1 Rp46.500
28 17871-81K00-000
SUB: 17871B80JA0N000		 HOSE, HEATER INLET 1 Rp37.500
29 17872-81K00-000
SUB: 17872B80JA0N000		 HOSE, HEATER OUTLET NO.1 1 Rp39.500
30 09401-21405-000 CLIP 2 Rp25.000
31 09401-21405-000 CLIP 2 Rp25.000
32 17873-81K00-000
SUB: 17873B69G00N000		 HOSE, WATER BYPASS 1 Rp16.500
33 09401-21405-000 CLIP 2 Rp25.000
34 09408-00166-000 CLAMP 1 Rp41.000
35 17830-55GA0-000 PIPE, HEATER INLET 1 Rp150.500
36 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
37 17875-55GA0-000 HOSE, HEATER INLET NO.2 1 Rp64.500
38 09401-21405-000 CLIP 2 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
