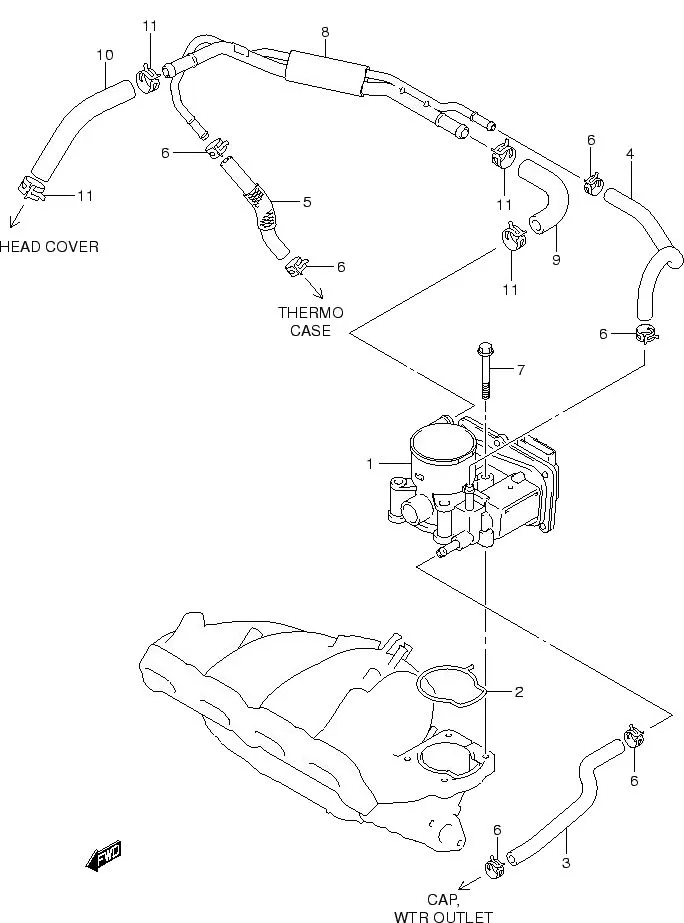

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-80JA0-000 BODY ASSY, THROTTLE 1 Rp7.097.500
2 13421-86G00-000 GASKET, THROTTLE BODY 1 Rp73.500
3 13491-80JA0-000 HOSE, WTR THROT BODY INLET 1 Rp87.000
4 13492-80JA0-000 HOSE, WTR THROT BODY OUT NO.1 1 Rp95.000
5 13493-80JA0-000 HOSE, WTR THROT BODY OUT NO.2 1 Rp81.000
6 09401-12410-000 CLIP 6 Rp15.000
7 01550-0855A-000 BOLT 4 Rp3.500
8 11190-79J00-000 PIPE, BREATHER 1 Rp767.000
9 11191-80JA0-000 HOSE, BREATHER NO.1 1 Rp91.000
10 11192-80JA0-000 HOSE, BREATHER NO.2 1 Rp97.000
11 11199M68K00-000
SUB: 09401M18404-000		 CLIP 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
