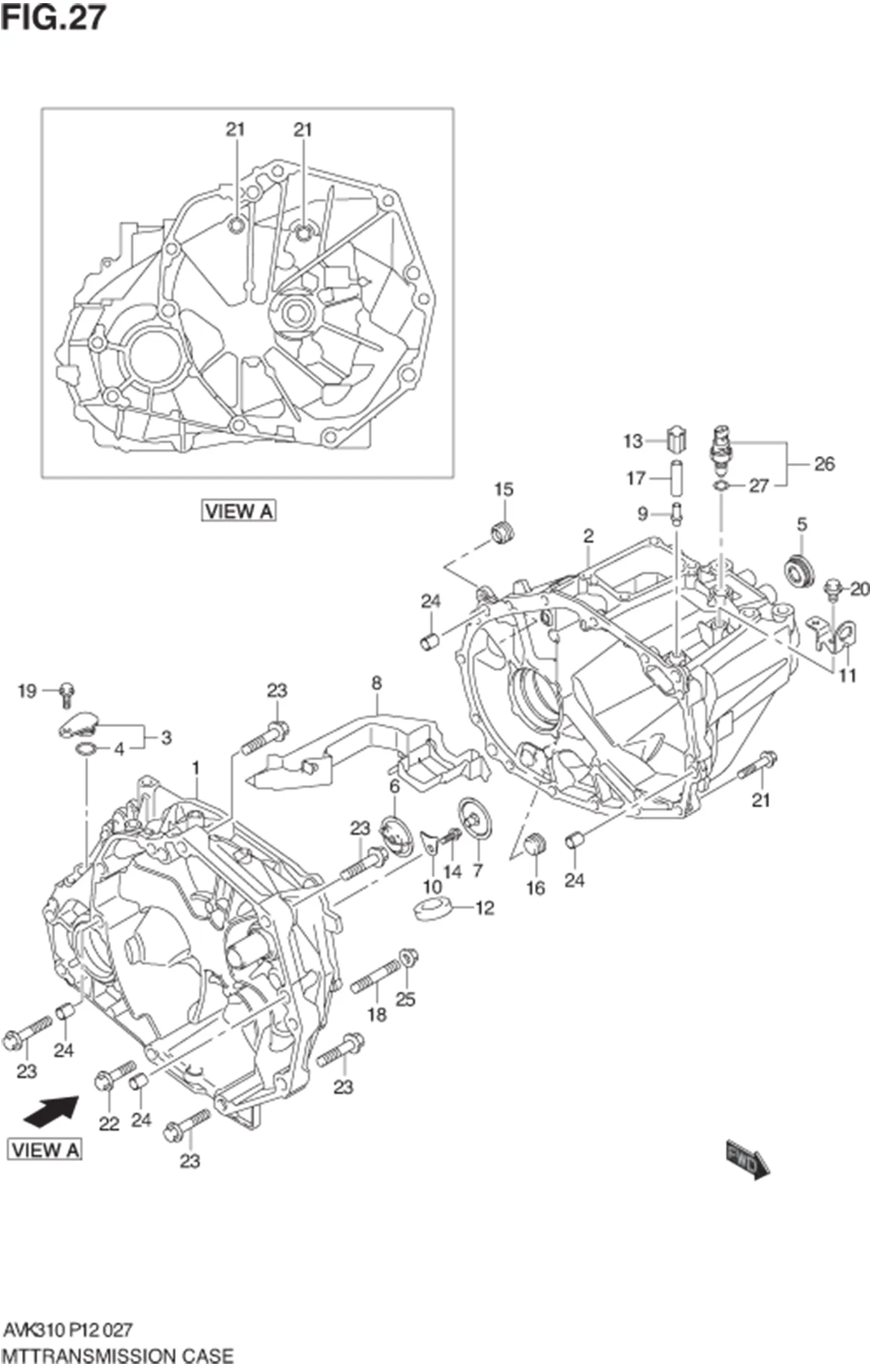

FIG.27 MT TRANSMISSION CASE (5MT)

FIG.27 MT TRANSMISSION CASE (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24711-84M00-000 CASE, TRANSMISSION RH 1 Rp1.281.000
2 24721-84M00-000 CASE, TRANSMISSION LH 1 Rp3.279.500
3 24723-72KA2-000 CAP, SPEEDOMETER SENSOR 1 Rp127.500
4 09280-15018-000 •O RING (D:2.4,ID:14.8) 1 Rp40.000
5 24726-84M00-000 PLUG, TRANSMISSION CASE 1 Rp27.500
6 24733-84MD0-000 CHANNEL, OIL COUNTERSHAFT 1 Rp35.000
7 24734-84MD0-000 CHANNEL, OIL INPUT SHAFT 1 Rp35.000
8 24811-84MD0-000 GUTTER, INPUT OIL 1 Rp101.000
9 09364-08004-000 UNION 1 Rp13.000
10 24852-84M00-000 PLATE, COUNTERSHAFT RH BEARING 1 Rp6.500
11 24855-84M00-000 HOOK, TRANSMISSION 1 Rp10.000
12 24861-84M00-000 MAGNET, OIL CLEANER 1 Rp118.500
13 27991-77M00-000
SUB: 27991B77M00N000		 PLUG, BREATHER HOSE 1 Rp6.500
14 09103-06283-000 BOLT (6X16) 1 Rp20.500
15 09246-16021-000
SUB: 09246-16010-000		 PLUG 1 Rp48.000
16 09246-16021-000
SUB: 09246-16010-000		 PLUG 1 Rp48.000
17 09352-70119-600
SUB: 09352-70113-600		 HOSE (7X11X600) 1 Rp86.500 L:600->40
18 01421-1045A-000 STUD BOLT 1 Rp29.500
19 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
20 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
21 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 14 Rp3.500
22 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
23 01550-1050A-000 BOLT 5 Rp6.000
24 04211M13189-000
SUB: 04211M13149-000		 PIN 4 Rp9.000
25 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
26 37610-76G10-000 SWITCH ASSY, BACK UP LAMP 1 Rp166.500
27 09280-11002-000 •O RING (D:1.9,ID:11.4) 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
