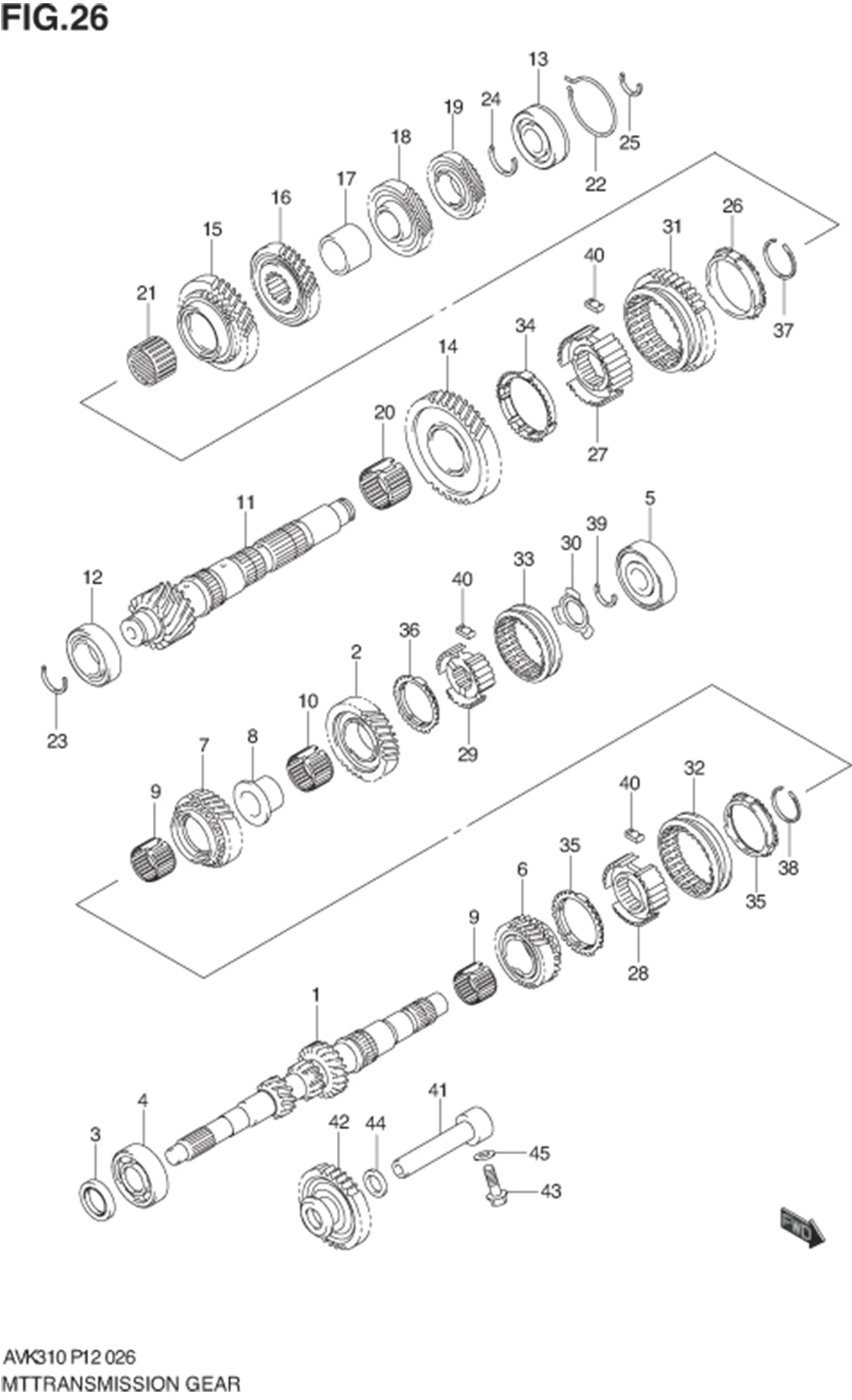

FIG.26 MT TRANSMISSION GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-84M03-000 SUB: 24111-84M02-000	SHAFT, TRANSMISSION INPUT	1	Rp2.978.000
2	24114-84M00-000	GEAR, INPUT SHAFT 5TH	1	Rp1.192.500
3	24151-67LA0-000 SUB: 24151B67LA0N000	SEAL, INPUT SHAFT OIL	1	Rp13.000
4	24155-84M00-000	BEARING, INPUT SHAFT RH	1	Rp61.500
5	24165-84M00-000	BEARING, INPUT SHAFT LH	1	Rp114.000
6	24230-84M02-000 SUB: 24230-84M01-000	GEAR, INPUT SHAFT 3RD	1	Rp1.256.000
7	24240-84M02-000 SUB: 24240-84M01-000	GEAR, INPUT SHAFT 4TH	1	Rp1.476.000
8	24255-84M00-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp57.000
9	24283-84M00-000	BEARING, 3RD/4TH GEAR NEEDLE	2	Rp16.500
10	24285-84M00-000	BEARING, 5TH GEAR NEEDLE	1	Rp17.000
11	24131-84MA1-000	SHAFT, TRANSAXLE COUNTER	1	Rp2.384.000
12	24175-84M00-000	BEARING, COUNTERSHAFT RH	1	Rp211.000
13	24185-84M00-000	BEARING, COUNTERSHAFT LH	1	Rp97.000
14	24311-84M01-000	GEAR, COUNTERSHAFT 1ST	1	Rp747.000
15	24321-84M01-000	GEAR, COUNTERSHAFT 2ND	1	Rp1.594.500
16	24331-84M00-000	GEAR, COUNTERSHAFT 3RD	1	Rp885.000
17	24336-84M00-000	SPACER, 3RD/4TH GEAR	1	Rp33.000
18	24341-84M00-000	GEAR, COUNTERSHAFT 4TH	1	Rp665.000
19	24351-84M00-000	GEAR, COUNTERSHAFT 5TH	1	Rp665.000
20	24381-84M00-000	BEARING, 1ST GEAR NEEDLE	1	Rp21.000
21	24382-84M00-000	BEARING, 2ND GEAR NEEDLE	1	Rp19.000
22	24385-84M00-000	RING, COUNTERSHAFT LH SNAP	1	Rp12.500
23	24391-84M00-000	CIRCLIP, COUNTERSHAFT RH	1	Rp8.000
24-6	24392-84M00-240	CIRCLIP, 5TH GEAR (T:2.40)	1	Rp11.500
24-5	24392-84M00-235	CIRCLIP, 5TH GEAR (T:2.35)	1	Rp11.500
24-4	24392-84M00-230	CIRCLIP, 5TH GEAR (T:2.30)	1	Rp12.000
24-2	24392-84M00-220	CIRCLIP, 5TH GEAR (T:2.20)	1	Rp13.000
24-1	24392-84M00-215	CIRCLIP, 5TH GEAR (T:2.15)	1	Rp13.000
24-3	24392-84M00-225	CIRCLIP, 5TH GEAR (T:2.25)	1	Rp13.000
25	24393-84M00-000	CIRCLIP, COUNTERSHAFT LH	1	Rp8.000
26	24402-68PD0-000 SUB: 24402-76MD0-000	RING, 2ND GEAR SYNC	1	Rp501.000
27	24411-84M01-000	HUB ASSY, LOW SPEED SYNC	1	Rp744.500
28	24412-84M00-000	HUB ASSY, HIGH SPEED SYNC	1	Rp102.500
29	24413-84M00-000	HUB ASSY, 5TH SPEED SYNC	1	Rp128.000
30	24415-84M00-000	PLATE, 5TH SPEED SYNC HUB	1	Rp6.500
31	24421-84M00-000	SLEEVE, LOW SPEED SYNC	1	Rp830.500
32	24422-84M00-000	SLEEVE, HIGH SPEED SYNC	1	Rp628.000
33	24423-84M01-000 SUB: 24423-84M00-000	SLEEVE, 5TH SPEED SYNC	1	Rp573.000
34	24431-84M00-000	RING, 1ST GEAR SYNC	1	Rp74.500
35	24433-84M00-000	RING, HIGH SPEED GEAR SYNC	2	Rp62.000
36	24435-84M00-000	RING, 5TH GEAR SYNC	1	Rp63.500
37	24451-84MD0-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp42.000
38	24452-84MD0-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp42.000
39-1	24453-84M00-200	CIRCLIP, 5TH SYNC HUB (T:2.00)	1	Rp11.500
39-2	24453-84M00-205	CIRCLIP, 5TH SYNC HUB (T:2.05)	1	Rp10.500
39-3	24453-84M00-210	CIRCLIP, 5TH SYNC HUB (T:2.10)	1	Rp10.500
39-4	24453-84M00-215	CIRCLIP, 5TH SYNC HUB (T:2.15)	1	Rp10.000
39-5	24453-84M00-220	CIRCLIP, 5TH SYNC HUB (T:2.20)	1	Rp10.000
39-6	24453-84M00-225	CIRCLIP, 5TH SYNC HUB (T:2.25)	1	Rp10.000
40	24471-76M00-000	KEY, SYNCHRONIZER	9	Rp19.000
41	24550-84MD0-000	SHAFT, T/M REVERSE GEAR	1	Rp218.500
42	24560-76MD2-000 SUB: 24560-76MD1-000	GEAR, REVERSE IDLER	1	Rp834.000
43	24565-60B00-000	BOLT, REVERSE SHAFT	1	Rp21.500
44	09161M16010-000	WASHER (16X24X3)	1	Rp5.500
45	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
