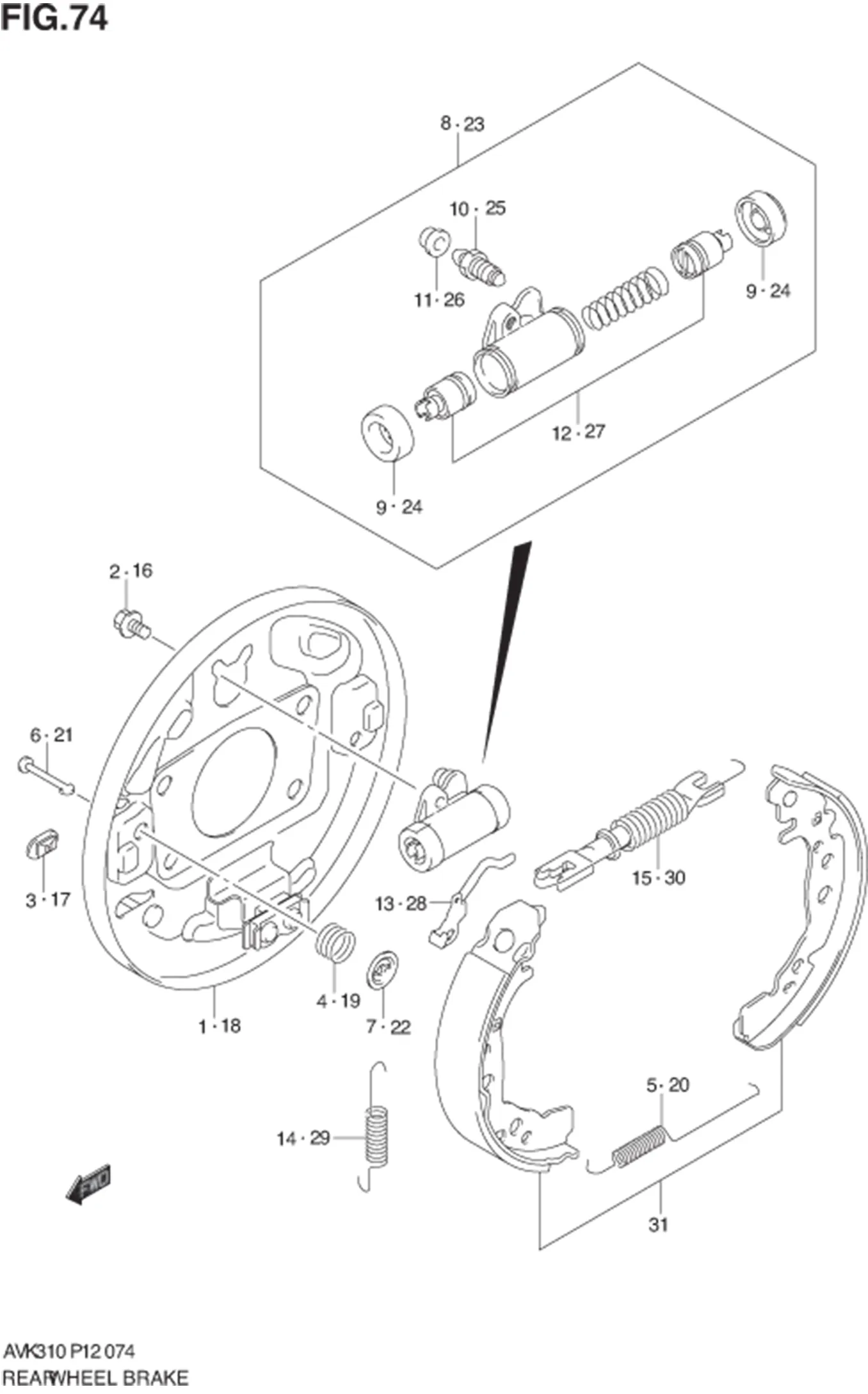

FIG.74 REAR WHEEL BRAKE

No	No. Part	Description	Qty	Price Per Pcs
1	53110-84M00-000	PLATE ASSY, BRAKE BACKING RH	1	Rp800.500
2	53131-84M00-000	BOLT, WHEEL CYLINDER	1	Rp44.000
3	53141-84M00-000	PLUG, SHOE INSPECTION HOLE	1	Rp44.000
4	53231-84M00-000	SPRING, COMPRESSION	2	Rp56.500
5	53232-84M00-000	SPRING, TENSION	1	Rp61.500
6	53241-84M00-000	PIN, SHOE HOLD DOWN SPRING	2	Rp190.500
7	53251-84M00-000	CUP, SHOE HOLD DOWN SPRING	2	Rp44.000
8	53401-84M00-000	CYLINDER ASSY, WHEEL RH	1	Rp861.500
9	53441-84M00-000	•BOOT, WHEEL CYLINDER	2	Rp50.500
10	53473-84M00-000	•PLUG, BLEEDER	1	Rp67.500
11	53474-84M00-000	•CAP, BLEEDER PLUG	1	Rp148.000
12	53800-84M00-000	•PISTON SET	1	Rp264.000
13	53781-84M00-000	LEVER, AUTOMATIC ADJUST RH	1	Rp85.000
14	53791-84M00-000	SPRING, TENSION RH	1	Rp60.000
15	53810-84M00-000	STRUT SET, PARKING BK SHOE RH	1	Rp278.500
16	53131-84M00-000	BOLT, WHEEL CYLINDER	1	Rp44.000
17	53141-84M00-000	PLUG, SHOE INSPECTION HOLE	1	Rp44.000
18	53160-84M00-000	PLATE ASSY, BRAKE BACKING LH	1	Rp800.500
19	53231-84M00-000	SPRING, COMPRESSION	2	Rp56.500
20	53232-84M00-000	SPRING, TENSION	1	Rp61.500
21	53241-84M00-000	PIN, SHOE HOLD DOWN SPRING	2	Rp190.500
22	53251-84M00-000	CUP, SHOE HOLD DOWN SPRING	2	Rp44.000
23	53402-84M00-000	CYLINDER ASSY, WHEEL LH	1	Rp861.500
24	53441-84M00-000	•BOOT, WHEEL CYLINDER	2	Rp50.500
25	53473-84M00-000	•PLUG, BLEEDER	1	Rp67.500
26	53474-84M00-000	•CAP, BLEEDER PLUG	1	Rp148.000
27	53800-84M00-000	•PISTON SET	1	Rp264.000
28	53782-84M00-000	LEVER, AUTOMATIC ADJUST LH	1	Rp85.000
29	53792-84M00-000	SPRING, TENSION LH	1	Rp60.000
30	53860-84M00-000	STRUT SET, PARKING BK SHOE LH	1	Rp278.500
31	53200-84M01-000 SUB: 53200-84M00-000	SHOE SET	1	Rp820.500
