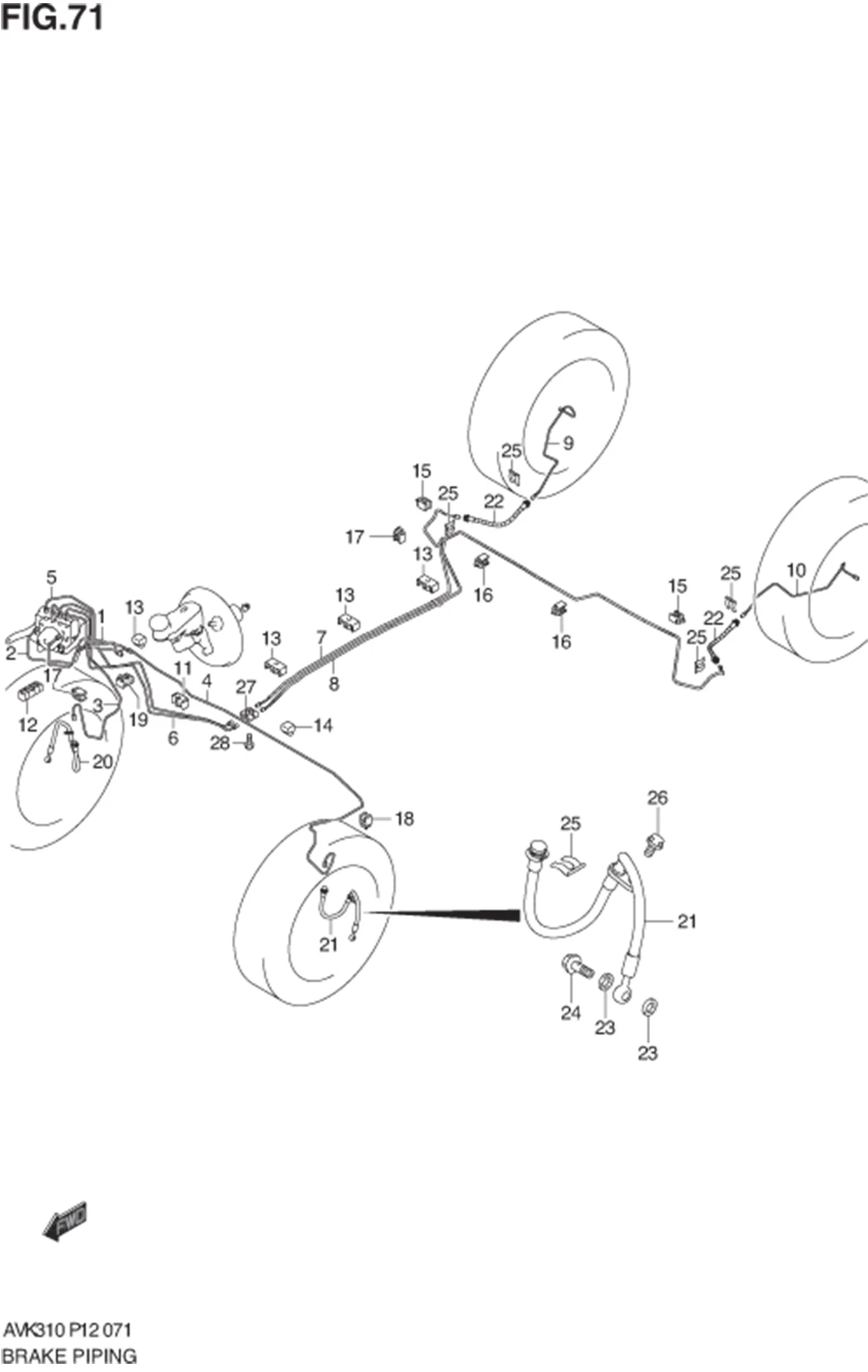

FIG.71 BRAKE PIPING

FIG.71 BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410-84M00-000 PIPE, MA PRI TO HU 1 Rp456.500
2 51420-84M00-000 PIPE, MA SEC TO HU 1 Rp456.500
3 51430-84M00-000 PIPE, HU TO FR BK HOSE RH 1 Rp515.500
4 51440-84M00-000 PIPE, HU TO FR BK HOSE LH 1 Rp515.500
5 51450-84M00-000 PIPE, HU TO 4 JT RH 1 Rp148.000
6 51460-84M00-000 PIPE, PV TO 4 JT LH 1 Rp148.000
7 51470-84M00-000 PIPE, 4 JT TO RR BK HOSE RH 1 Rp275.500
8 51480-84M00-000 PIPE, 4 JT TO RR BK HOSE LH 1 Rp275.500
9 51510-84M00-000 PIPE, RR BK HOSE TO RR W/C RH 1 Rp388.500
10 51520-84M00-000 PIPE, RR BK HOSE TO RR W/C LH 1 Rp388.500
11 51751-75F00-000 CLAMP, BK PIPE MAIN FL DOUBLE 1 Rp29.000
12 51751-82CB0-000 CLAMP, BK PIPE 1 Rp33.500
13 51751-84M00-000 CLAMP, BK PIPE MAIN FL DOUBLE 3 Rp20.500
14 51752-77M00-000
SUB: 51752-70B00-000		 CLAMP, BK PIPE 2 Rp5.500
15 51761-58M00-000 CLAMP, BK PIPE RR SIDE MBR 3 Rp28.500
16 51761-58M10-000 CLAMP, BK PIPE RR FL SINGLE 2 Rp28.500
17 51761-62J20-000 CLAMP, BK PIPE 2 ON FRAME 1 Rp32.000
18 51761-67H10-000 CLAMP, BK PIPE FRAME 3 Rp29.000
19 51761-70F00-000 CLAMP, BK PIPE SIDE MEMBER 1 Rp33.500
20 51540-84M01-000
SUB: 51540-84M00-000		 HOSE, FR BRAKE FLEXIBLE RH 1 Rp180.000
21 51550-84M01-000
SUB: 51550-84M00-000		 HOSE, FR BRAKE FLEXIBLE LH 1 Rp180.000
22 51570-58M01-000
SUB: 51570-58M00-000		 HOSE, RR BRAKE FLEXIBLE 2 Rp105.000
23 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
24 51561M55K00-000
SUB: 09360-10046-000		 UNION 2 Rp8.500
25 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
26 01551-0816C-000 BOLT 2 Rp13.500
27 51630M70F00-000 JOINT, 4WAY BRAKE 1 Rp122.000
28 02162-0625A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
