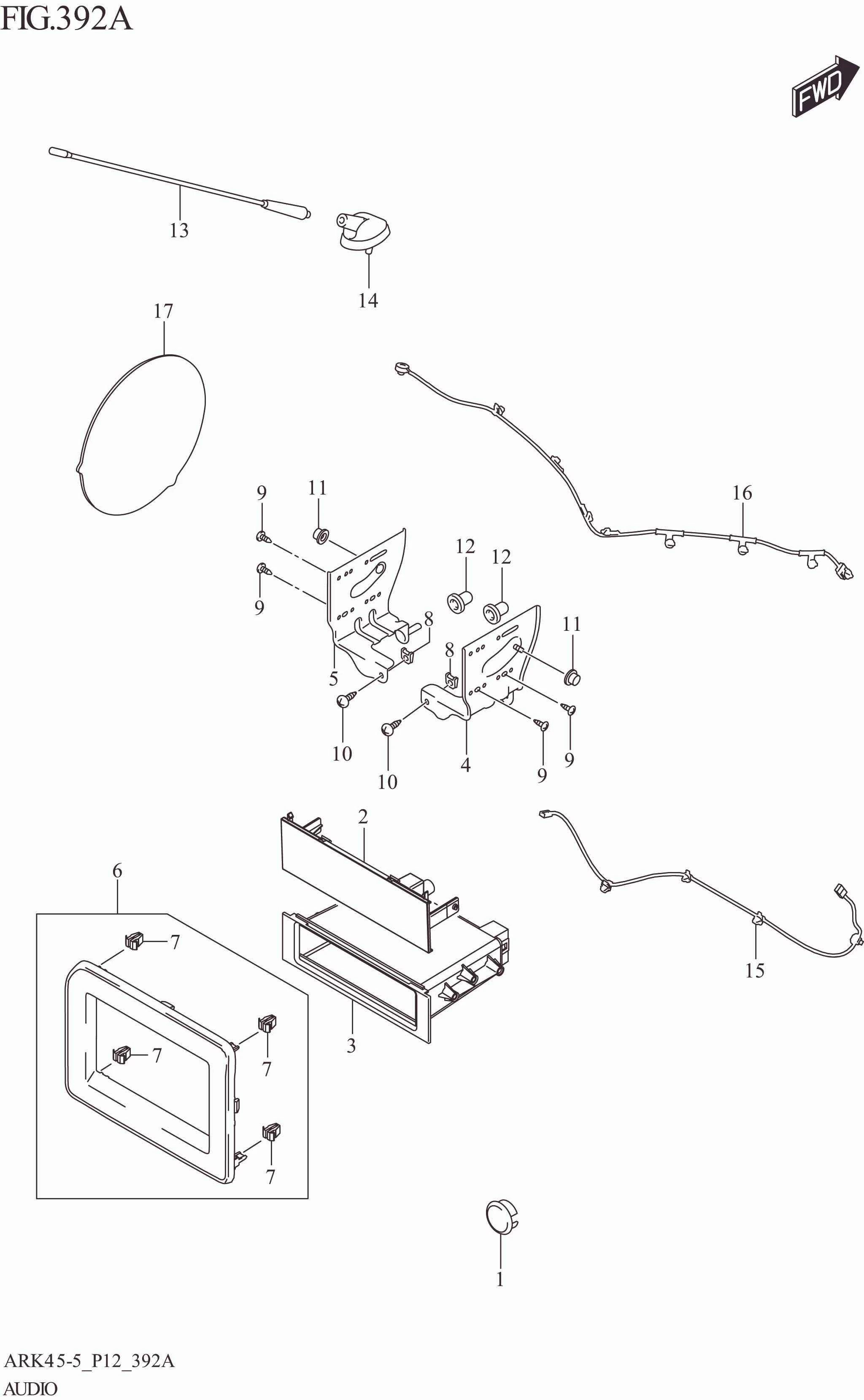

FIG. 392A AUDIO (N_TWETR)

FIG. 392A AUDIO (N_TWETR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37275-67L00-000	CAP,CGLTR HOLE	1	Rp11.000
2	39161-77M01-000	COVER,RADIO HOLE	1	Rp13.000
3	39182-77M10-000	POCKET,TUNER	1	Rp38.000
4	39321-73R00-000	BRACKET,TUNER,R	1	Rp30.000
5	39322-73R00-000	BRACKET,TUNER,L	1	Rp30.000
6	73821-73R00-5PK	GARNISH,I/P CTR (BLACK)	1	Rp30.000
7	09409-08352-000	.CLIP	4	Rp19.000
8	09148-05045-000	NUT (M5)	2	Rp4.000
9	03241-0512A-000	SCREW	4	Rp3.500
10	03541-0516A-000	SCREW	2	Rp3.500
11	34955M54G10-000	BUSH,RADIO BRKT	2	Rp6.500
12	34955-59J00-000	BUSH,RADIO BRKT	2	Rp18.500
13	39251-86T00-000	ROD,ANTENNA	1	Rp75.500
14	39253-86T00-000	BASE,ANTENNA	1	Rp113.000
15	39270-86T00-000	FEEDER,I/P	1	Rp80.000
16	39271-86T00-000	FEEDER,ROOF	1	Rp325.500
17	39112-73R00-000	SPEAKER,SEAL	4	Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
