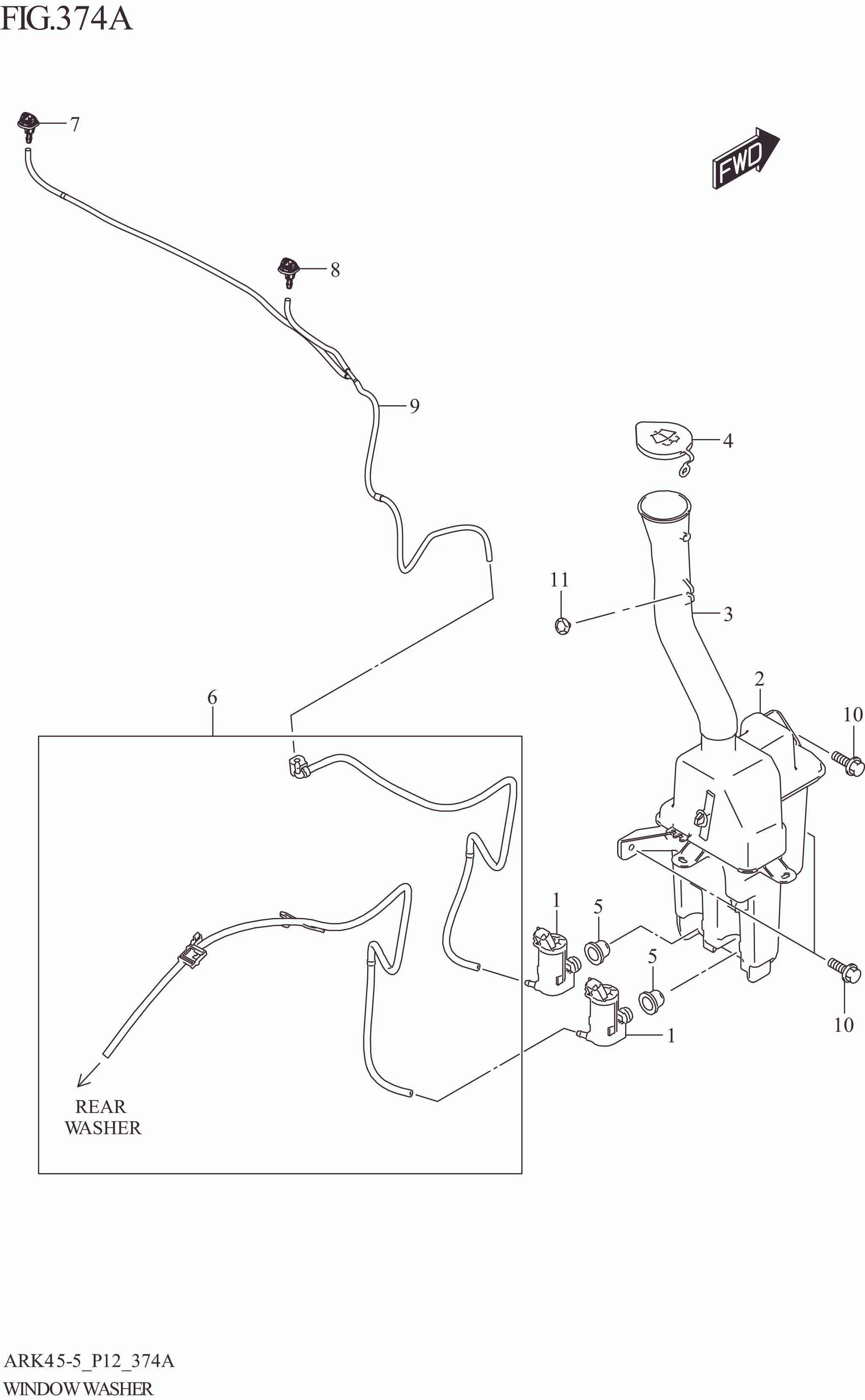

FIG. 374A WINDOW WASHER

FIG. 374A WINDOW WASHER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38410-73R00-000	PUMP,WASHER	2	Rp129.000
2	38450-73R00-000	TANK,WASHER	1	Rp111.000
3	38453-73R00-000	INLET,WASHER	1	Rp52.500
4	38452-73R00-000	CAP,WASHER TANK	1	Rp16.500
5	38453-61L00-000	GROMMET	2	Rp7.500
6-1	38459-73R10-000	HOSE SET	1	Rp154.000	GX
6-2	38459-73R00-000	HOSE SET	1	Rp163.000	GL
7	38480-73R00-000	NOZZLE,WASHER	1	Rp32.000
8	38480-73R10-000	NOZZLE,WASHER	1	Rp31.000
9	38832M72R00-000	HOSE ASSY,FR WASHER	1	Rp56.500
10	02162-0612A-000	SCREW (6X12)	3	Rp11.000
11	09409-07340-000	CLIP (6.8X11.5)	1	Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
