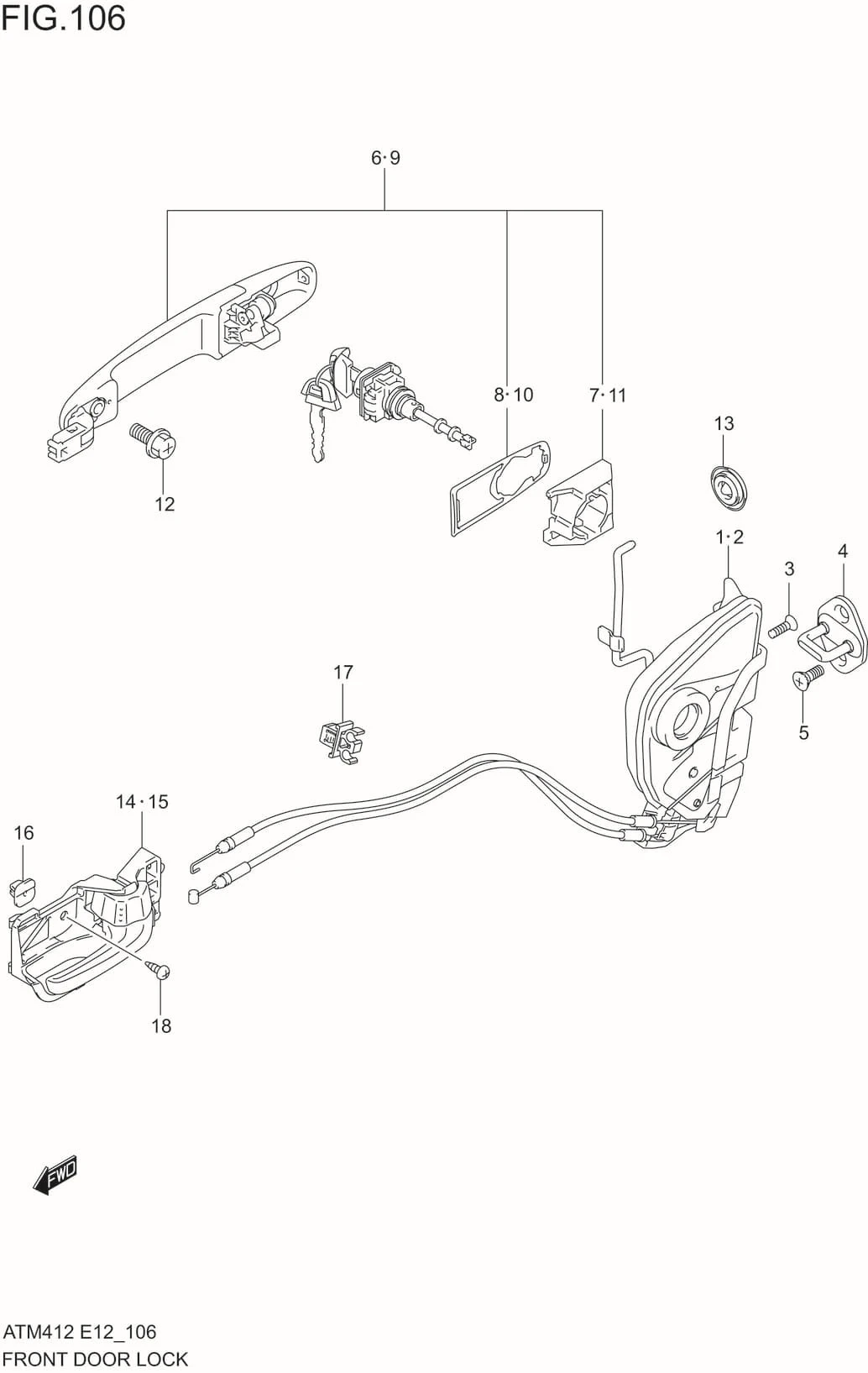

FIG.106 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1-2	82201M66R42-000	LATCH ASSY, FRONT DOOR RH	1	Rp598.500
1-1	82201M66R13-000 SUB: 82201M66R12-000	LATCH ASSY, FRONT DOOR RH	1	Rp494.500
2-1	82202M66R33-000 SUB: 82202M66R32-000	LATCH ASSY, FRONT DOOR LH	1	Rp489.500
2-2	82202M66R53-000 SUB: 82202M66R52-000	LATCH ASSY, FRONT DOOR LH	1	Rp585.000
3	09137-06032-000	SCREW	6	Rp16.500
4	82610M76M01-000	STRIKER, DOOR LATCH	2	Rp27.000
5	DISCONTINUE SUB: 09137M08004-000	SCREW	4	-
6-8	82081M66R10-ZHJ	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-14	82081M66R10-ZYE	HANDLE, FRONT DOOR OUT RH	1	Rp564.000
6-13	82081M66R10-ZYR	HANDLE, FRONT DOOR OUT RH	1	Rp554.500
6-12	82081M66R10-Z2S	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-11	82081M66R10-ZWS	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-10	82081M66R10-ZWR	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-9	82081M66R10-ZNZ	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-7	82081M66R10-ZAM	HANDLE, FRONT DOOR OUT RH	1	Rp730.000
6-8	82810M66R20-ZYE	HANDLE, FRONT DOOR OUT RH	1	Rp197.000
6-7	82810M66R20-WAD	HANDLE, FRONT DOOR OUT RH	1	Rp196.000
6-6	82810M66R20-Z2S	HANDLE, FRONT DOOR OUT RH	1	Rp273.000
6-5	82810M66R20-ZWS	HANDLE, FRONT DOOR OUT RH	1	Rp290.000
6-4	82810M66R20-ZWR	HANDLE, FRONT DOOR OUT RH	1	Rp290.000
6-3	82810M66R20-ZNZ	HANDLE, FRONT DOOR OUT RH	1	Rp273.000
6-2	82810M66R20-ZHJ	HANDLE, FRONT DOOR OUT RH	1	Rp273.000
6-1	82810M66R20-ZAM	HANDLE, FRONT DOOR OUT RH	1	Rp273.000
7	82812M66R00-000	.BRACKET, FR DR OUT HANDLE RH	1	Rp23.000
8	82813M66R00-000	.PAD, FRONT DOOR OUT HANDLE	1	Rp6.000
9-8	82082M66R10-ZHJ	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
9-9	82082M66R10-ZNZ	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
9-10	82082M66R10-ZWR	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
9-11	82082M66R10-ZWS	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
9-12	82082M66R10-Z2S	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
9-13	82082M66R10-ZYR	HANDLE, FRONT DOOR OUT LH	1	Rp554.500
9-14	82082M66R10-ZYE	HANDLE, FRONT DOOR OUT LH	1	Rp564.000
9-2	82820M66R30-ZHJ	HANDLE, FRONT DOOR OUT LH	1	Rp283.000
9-8	82820M66R30-ZYE	HANDLE, FRONT DOOR OUT LH	1	Rp206.000
9-7	82820M66R30-WAD	HANDLE, FRONT DOOR OUT LH	1	Rp209.000
9-6	82820M66R30-Z2S	HANDLE, FRONT DOOR OUT LH	1	Rp288.000
9-5	82820M66R30-ZWS	HANDLE, FRONT DOOR OUT LH	1	Rp283.000
9-4	82820M66R30-ZWR	HANDLE, FRONT DOOR OUT LH	1	Rp283.000
9-3	82820M66R30-ZNZ	HANDLE, FRONT DOOR OUT LH	1	Rp288.000
9-1	82820M66R30-ZAM	HANDLE, FRONT DOOR OUT LH	1	Rp283.000
9-7	82082M66R10-ZAM	HANDLE, FRONT DOOR OUT LH	1	Rp730.000
10	82813M66R00-000	.PAD, FRONT DOOR OUT HANDLE	1	Rp6.000
11	82822M66R00-000	.BRACKET, FR DR OUT HANDLE LH	1	Rp23.000
12	09116-06168-000	BOLT	4	Rp15.000
13	09250M25L02-000	PLUG, FR OUT HANDLE HOLE	2	Rp5.500
14-1	83110M76M01-5PK	HANDLE, SIDE DOOR INSIDE RH	1	Rp65.500
14-2	83110M55K21-C48	HANDLE, SIDE DOOR INSIDE RH	1	Rp130.500
15-1	83130M76M01-5PK	HANDLE, SIDE DOOR INSIDE LH	1	Rp65.500
15-2	83130M55K21-C48	HANDLE, SIDE DOOR INSIDE LH	1	Rp130.500
16	83119M75J00-000	NUT	2	Rp5.500
17	83271M66R00-000	CLIP	2	Rp6.500
18	09132-05058-000	SCREW	2	Rp14.000
