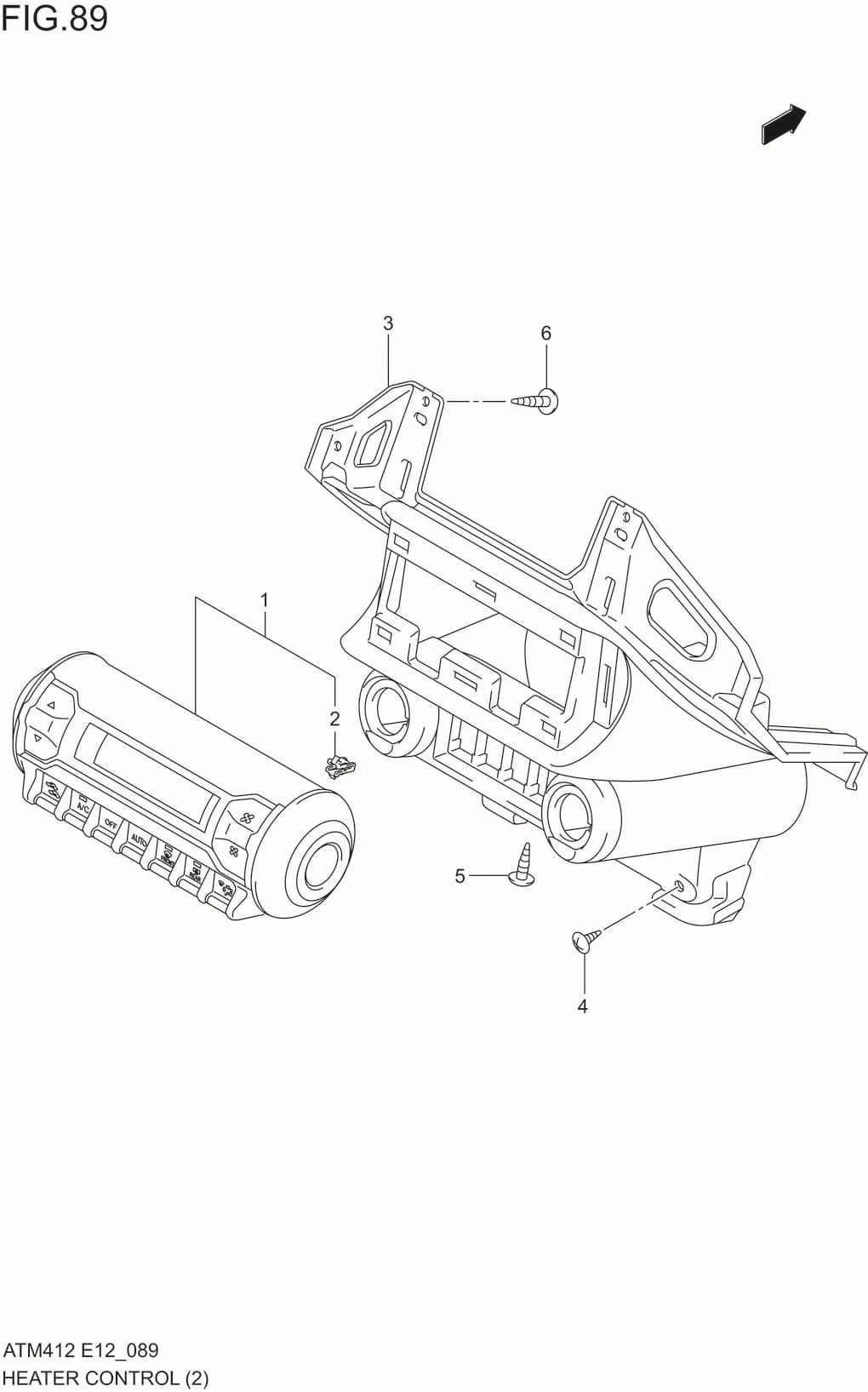

FIG.89 HEATER CONTROL(W/AUTO AIR CONDITIONER)

FIG.89 HEATER CONTROL(W/AUTO AIR CONDITIONER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	39510-62R10-CLM SUB: 39510-62R00-CLM	PANEL UNIT, AUTO A/C	1	Rp4.110.000
1-2	39510M62R10-CLM	PANEL UNIT, AUTO A/C	1	-
2	09409-08349-000	.CLIP	4	Rp4.500
3	73825-62R00-5PK	COVER, I/P CTR LWR	1	Rp347.500
4	09132-05049-000	SCREW	1	Rp21.000
5	03541-0516A-000	SCREW	2	Rp3.500
6	03541-0516A-000	SCREW	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
