NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

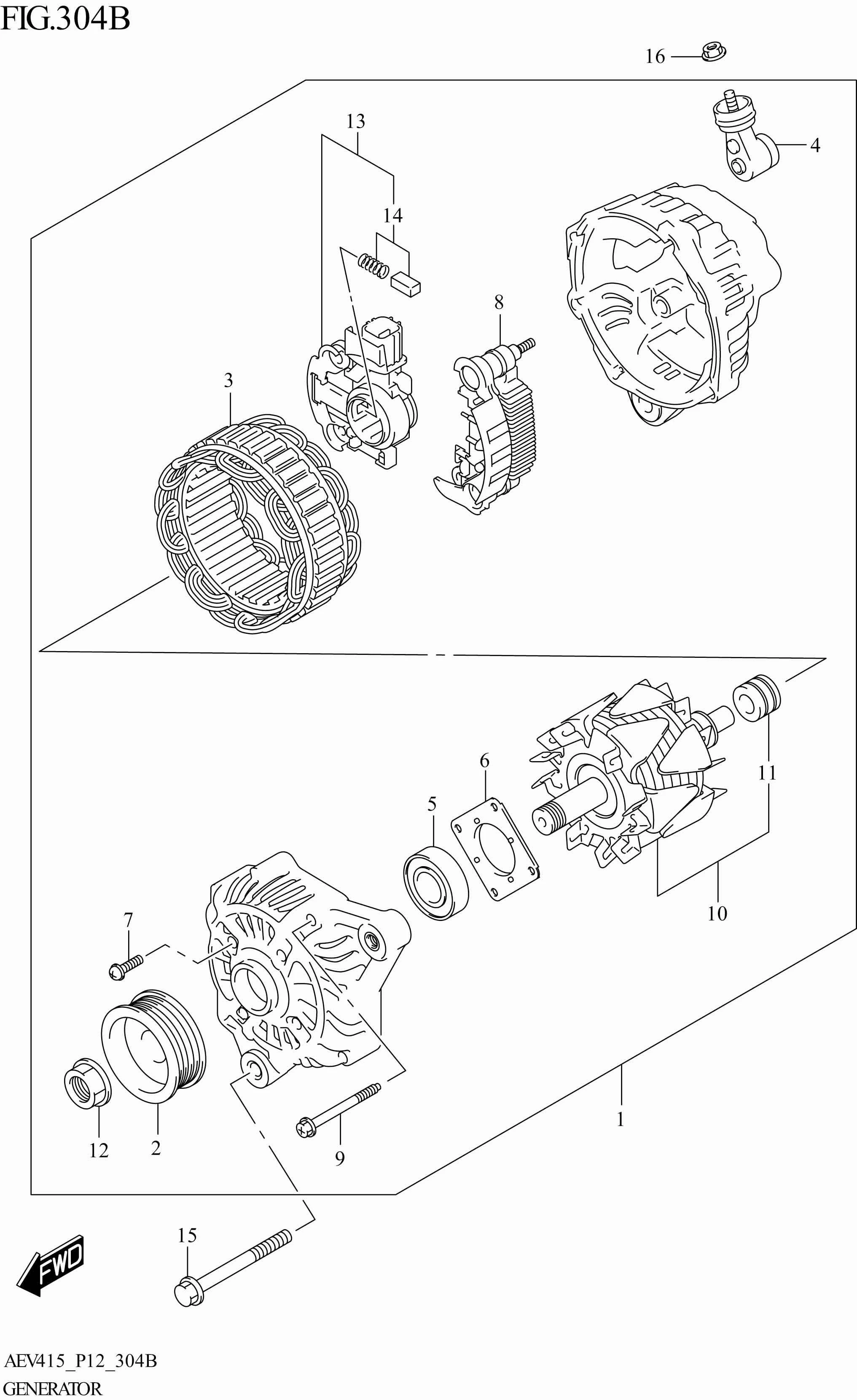

FIG. 304B- GENERATOR (W_MN_AC)

FIG. 304B- GENERATOR (W_MN_AC)
No No. Part Description Qty Price Per Pcs Remarks
1 31400-52S11-000
SUB: 31400-52S10-000		 GENERATOR ASSY 1 Rp1.713.500
2 31771-52S00-000 PULLEY 1 Rp137.000
3 31410-85L10-000 STATOR ASSY 1 Rp582.000
4 31514-82M00-000 TERMINAL SET 1 Rp179.500
5 31582-50F30-000 BEARING 1 Rp476.500
6 31585-83E00-000 RETAINER,BEARING 1 Rp73.000
7 31586-86520-000 SCREW SET 1 Rp67.500
8 31621-52S11-000
SUB: 31621-52S10-000		 RECTIFIER ASSY 1 Rp215.000
9 31651-86520-000 SCREW SET 1 Rp78.000
10 31710-85L02-000 ROTOR ASSY 1 Rp650.000
11 31612-60A11-000 BEARING,REAR 1 Rp423.500
12 31775-50F20-000 NUT 1 Rp74.500
13 32500-52S10-000 REGULATOR ASSY 1 Rp1.093.500
14 31400-52S11-000
SUB: 31400-52S10-000		 BRUSH SET 1 Rp1.713.500
15 01550-1085A-000 BOLT 1 Rp7.000
16 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
