NEW CARRY PICKUP TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 300A- ENGINE ELECTRICALFIG. 302A- STARTING MOTORFIG. 304A- GENERATOR (N_AC)FIG. 304B- GENERATOR (W_MN_AC)FIG. 320A- BATTERYFIG. 324A- SPEEDOMETERFIG. 330A- HEADLAMPFIG. 336A- REAR LAMPFIG. 348A- ENGINE HARNESS BRACKETFIG. 350A- ELECTRICAL CONTROL BODYFIG. 351A- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG. 30JA GENERATOR BRACKETFIG. 34NA - WIRING HARNESS FRONT SIDEFIG. 34PA WIRING HARNESS REAR SIDE

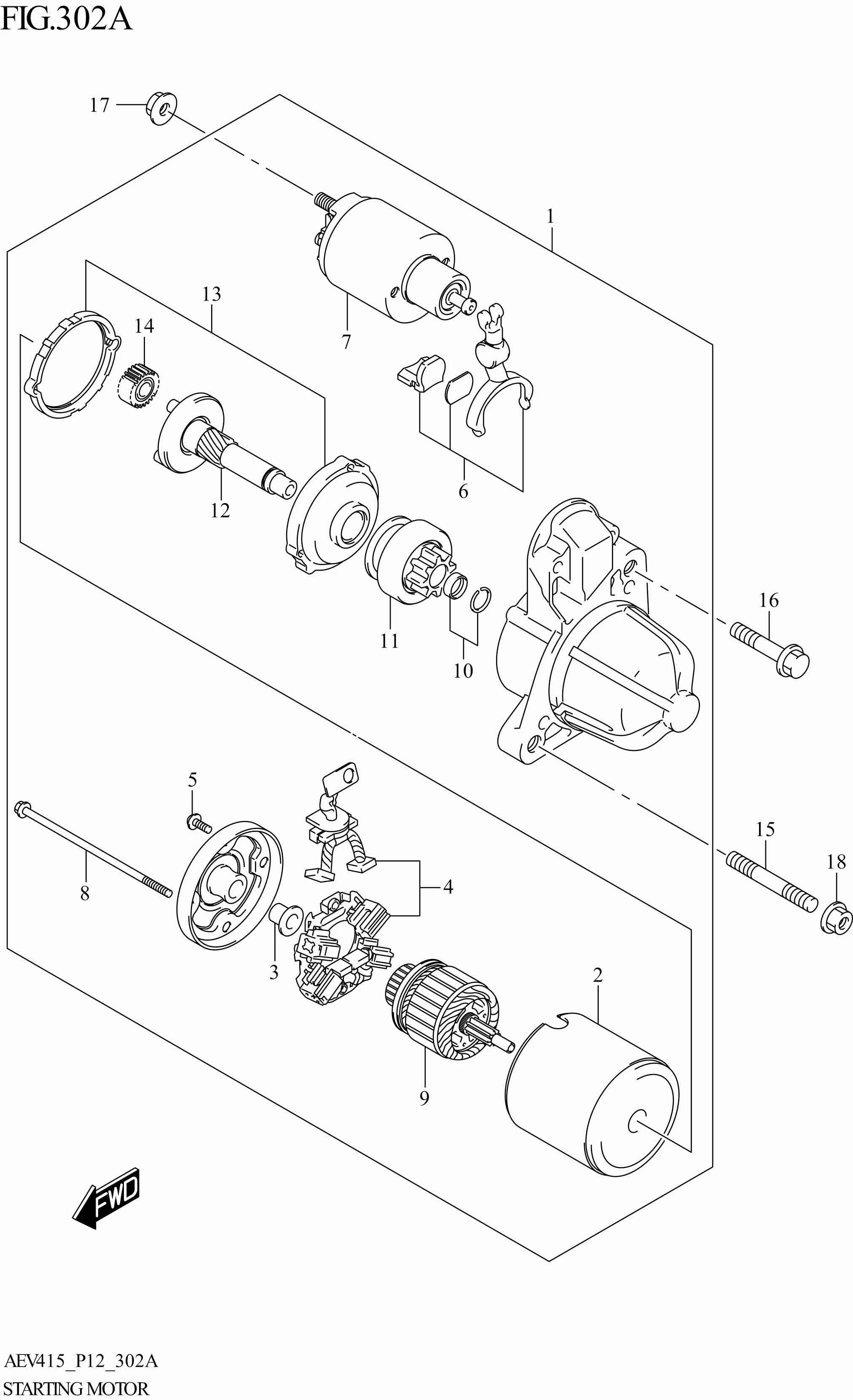

FIG. 302A- STARTING MOTOR

FIG. 302A- STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-52S02-000
SUB: 31100-52S00-000		 MOTOR ASSY,STARTING 1 Rp1.108.500
2 31110-52S00-000 YOKE ASSY 1 Rp164.500
3 31172-64B60-000 BEARING 1 Rp97.000
4 31173-77M00-000 BRUSH ASSY 1 Rp195.000
5 31175-79030-000 SCREW SET 1 Rp64.500
6 31191-63J00-000 LEVER SET 1 Rp24.500
7 31220-77R01-000
SUB: 31220-77R00-000		 SWITCH ASSY 1 Rp1.465.000
8 31261-51K20-000 BOLT 2 Rp29.500
9 DISCONTINUE
SUB: 31311-77M01-000		 ARMATURE 1 -
10 31314-86030-000 STOPPER SET 1 Rp26.500
11 31320-63J00-000 CLUTCH,OVER RUNNING 1 Rp224.000
12 31341-63J00-000 SHAFT ASSY,GEAR 1 Rp1.724.000
13 31343-63J00-000 INTERNAL GEAR 1 Rp348.500
14 31344-63J00-000 GEAR ASSY 1 Rp348.500
15 01421-1040A-000 BOLT,STUD 1 Rp19.500
16 01550-1050A-000 BOLT 1 Rp6.000
17 08316-1008A-000 NUT 1 Rp3.500
18 08316-1010A-000 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
