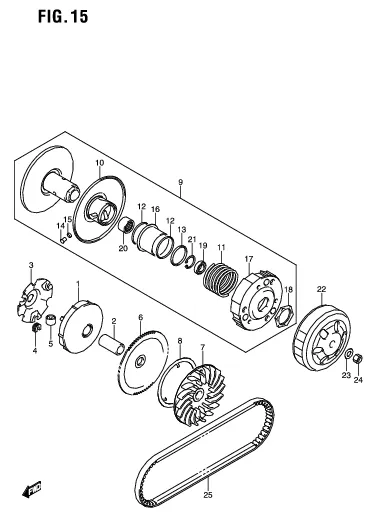

FIG. 15 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21120-09J10-000 SUB: 21120B09J10N000	FACE, MOVABLE DRIVE	1	Rp59.000
2	21125-09J00-000 SUB: 21125B09J00N000	SPACER, MOVABLE DRIVE	1	Rp26.500
3	21431-09J00-000 SUB: 21431B09J00N000	PLATE, MOVABLE DRIVE	1	Rp26.500
4	21481-09J00-000 SUB: 21481B09J00N000	DAMPER, MOVABLE DRIVE PLATE	3	Rp12.000
5	21650-09J00-000 SUB: 21650B09J00N000	ROLLER, MOVABLE DRIVE	6	Rp14.000
6	21111-09J00-000 SUB: 21111B09J00N000	FACE, FIXED DRIVE (NT:70)	1	Rp76.000
7	21113-09J00-000 SUB: 21113B09J00N000	FAN, FIXED DRIVE	1	Rp52.500
8	21114-09J00-000 SUB: 21114B09J00N000	PLATE, FIXED DRIVE	1	Rp15.500
9	21200-09J01-000 SUB: 21200B09J01N000	FACE ASSY, DRIVEN	1	Rp564.000
10	21240-09J01-000 SUB: 21240B09J01N000	.FACE, MOVABLE DRIVEN	1	Rp98.500
11	21243-09J00-000 SUB: 21243B09J00N000	.SPRING, MOVABLE DRIVEN	1	Rp39.000
12	21245-09J00-000 SUB: 21245B09J00N000	.O RING, MOVABLE DRIVEN	2	Rp11.500
13	21247-09J00-000 SUB: 21247B09J00N000	.SEAL, MOVABLE DRIVEN OIL	2	Rp20.000
14	21248-33G00-001 SUB: 21248B33G00N000	.PIN, MOVABLE DRIVEN	3	Rp12.500
15	21249-33G00-000 SUB: 21249B33G00N000	.SPACER, MOVABLE DRIVEN PIN	3	Rp4.500
16	21471-09J00-000 SUB: 21471B09J00N000	.SHEET, MOVABLE DRIVEN	1	Rp14.000
17	21501-09J00-000 SUB: 21501B09J00N000	.CLUTCH ASSY, SHOE(NA)	1	Rp149.500
18	21518-09J00-000 SUB: 21518B09J00N000	.NUT, SHOE CLUTCH	1	Rp8.500
19	09262-12L03-000 SUB: 09262B12L03N000	.BEARING (12X24X6) LH	1	Rp39.500	LH
20	09263-17L02-000 SUB: 09263B17L02N000	.BEARING (17X25X18) RH	1	Rp40.500	RH
21	09381-24L02-000 SUB: 09381B24L02N000	.CIRCLIP	1	Rp6.500
22	21220-09J00-000 SUB: 21220B09J00N000	HOUSING, CLUTCH	1	Rp113.000
23	21223-09J00-000 SUB: 21223B09J00N000	WASHER, CLUTCH HOUSING	1	Rp10.000
24	08310-0010A-000 SUB: 08310B0010AN000	NUT	1	Rp3.500
25	27601-09J20-000 SUB: 27601B09J20N000	V-BELT, DRIVE	1	Rp138.000
