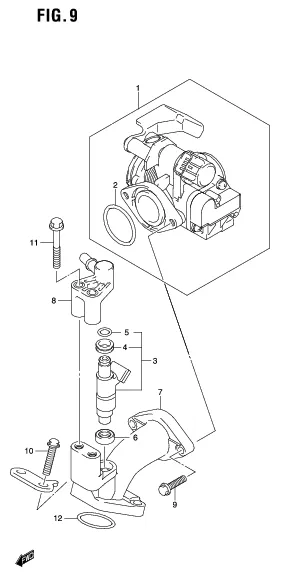

FIG. 9 THROTTLE BODY

FIG. 9 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-09JA3-000
SUB: 13400B09JA0N000		 BODY ASSY, THROTTLE 1 Rp862.000
2 13295-16HA0-000 .O RING 1 Rp5.000
3 15710-09JB0-000
SUB: 15710B09JB0N000		 INJECTOR ASSY, FUEL 1 Rp252.000
4 15720-09300-000 .GROMMET 1 Rp11.500
5 15710-09300-000 .O RING 1 Rp13.500
6 15715-16HC0-000
SUB: 15715B16HC0N000		 INSULATOR, FUEL INJECTOR 1 Rp36.000
7 13111-09JA1-000
SUB: 13111B09JA0N000		 PIPE, INTAKE 1 Rp67.000
8 15830-09JA0-000
SUB: 15830B09JA0N000		 JOINT, FUEL HOSE 1 Rp131.000
9 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
10 01547-0625A-000
SUB: 01547B0625AN000		 BOLT 2 Rp6.500
11 01547-0640B-000
SUB: 01547B0640AN000		 BOLT 2 Rp7.000
12 09280-26011-000
SUB: 09280B26011N000		 O RING (D:2.4,ID:25.7) 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
