Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 22 MT CLUTCH (5MT)FIG. 23 MT TRANSMISSION GEAR (5MT)FIG. 24 MT TRANSMISSION CASE (5MT)FIG. 25 MT GEAR SHIFT FORK (5MT)FIG. 26 AGS CLUTCH (5AGS)FIG. 27 AGS TRANSMISSION GEAR (5AGS)FIG. 28 AGS TRANSMISSION CASE (5AGS)FIG. 29 AGS GEAR SHIFT FORK (5AGS)FIG. 30 AGS ACTUATOR (5AGS)FIG. 31 GEAR SHIFT CONTROL (5MT)FIG. 32 SELECT LEVER (5AGS)FIG. 33 FRONT DIFFERENTIAL GEAR (5MT)FIG. 34 FRONT DIFFERENTIAL GEAR (5AGS)

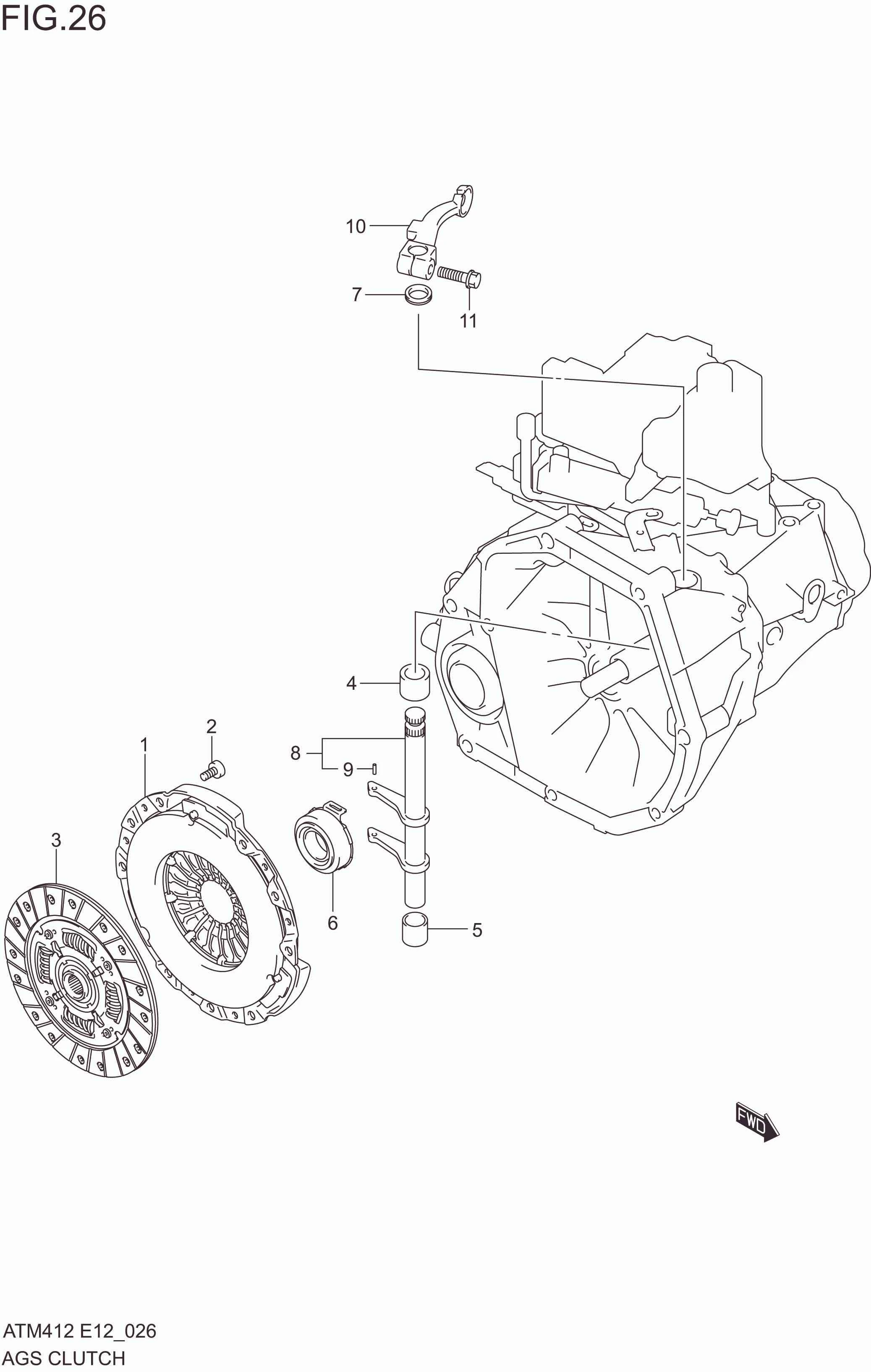

FIG. 26 AGS CLUTCH (5AGS)

FIG. 26 AGS CLUTCH (5AGS)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22100M66R02-000	COVER ASSY, CLUTCH	1	Rp388.000
2	01550-0816A-000	BOLT, CLUTCH COVER	6	Rp6.000
3	22400M66R00-000	DISC, CLUTCH	1	Rp494.000
4-1	23264M60B00-000	BUSH, CLUTCH RELEASE SHAFT NO.1	1	Rp23.500	VENDOR:SUNDRAM FASTENERS LTD
4-2	23264M60B00-000	BUSH, CLUTCH RELEASE SHAFT NO.1	1	Rp23.500	VENDOR:GKN SINTER METALS LTD
5-1	23264M60B20-000	BUSH, CLUTCH RELEASE SHAFT NO.2	1	Rp25.000	VENDOR:SUNDRAM FASTENERS LTD
5-2	23264M60B20-000	BUSH, CLUTCH RELEASE SHAFT NO.2	1	Rp25.000	VENDOR:GKN SINTER METALS LTD
6	23265M79F80-000	BEARING, CLUTCH RELEASE	1	Rp243.500
7	23263M74L00-000	SEAL, CLUTCH RELEASE SHAFT	1	Rp22.000
8	23260M68K02-000	SHAFT, CLUTCH RELEASE	1	Rp90.500
9	09205-03019-000	.PIN (3X10)	1	Rp9.500
10	23266M66RE1-000	ARM, CLUTCH RELEASE	1	Rp117.000
11	01550-0830A-000	BOLT	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
