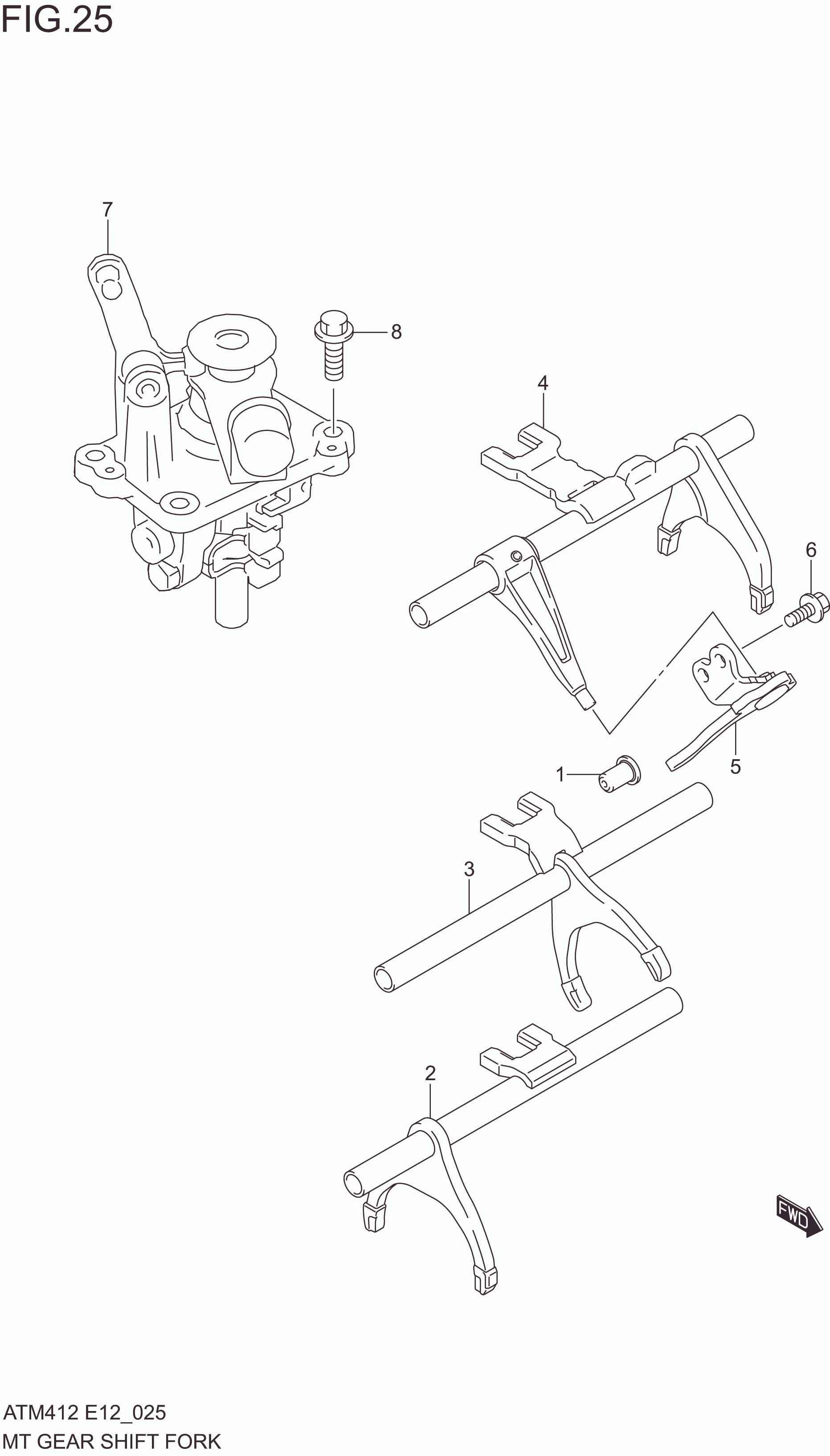

FIG. 25 MT GEAR SHIFT FORK (5MT)

FIG. 25 MT GEAR SHIFT FORK (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	25250M53M00-000	LOCATING, REV SHIFT	1	Rp11.000	VENDOR:IFB AUTOMOTIVE
1-2	25250M53M20-000	LOCATING, REV SHIFT	1	Rp20.500	VENDOR:TUBE INVESTMENTS OF INDIA LIMITED
2-1	25401M68P20-000	SHAFT, LOW SPEED GEAR SHF	1	Rp554.500	VENDOR:KHM DRIVE SYSTEMS
2-2	25401M68P20-000	SHAFT, LOW SPEED GEAR SHF	1	Rp554.500	VENDOR:BEST KOKI AUTOMOTIVE
3-1	25402M68P00-000	SHAFT, HIGH SPEED GEAR SHF	1	Rp515.000	TYPE-1
3-2	25402M68P60-000	SHAFT, HIGH SPEED GEAR SHF	1	Rp363.500	TYPE-2,TYPE-3
4	25403M68PE0-000	SHAFT, 5TH & REV GR SHF	1	Rp675.000
5-1	25460M68P00-000	LEVER, REVERSE GEAR SHIFT	1	Rp61.500	VENDOR:TUBE INVESTMENTS OF INDIA LIMITED
5-2	25460M68P20-000	LEVER, REVERSE GEAR SHIFT	1	Rp55.000	VENDOR:IFB INDUSTRIES LIMITED
6	09103M06317-000	BOLT(6X16)	2	Rp6.500
7	25010M68P41-000	SHAFT ASSY, GEAR SHIFT & SELECT	1	Rp1.621.500
8	01550-0825A-000	BOLT	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
