  3. Ignis MC 2023
  4. Engine
  5. FIG. 20 EMISSION CONTROL

Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 CRANKSHAFTFIG. 6 CAM SHAFT/VALVEFIG. 7 CAM CHAINFIG. 8 ENGINE MOUNTINGFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPE/FUEL INJECTORFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

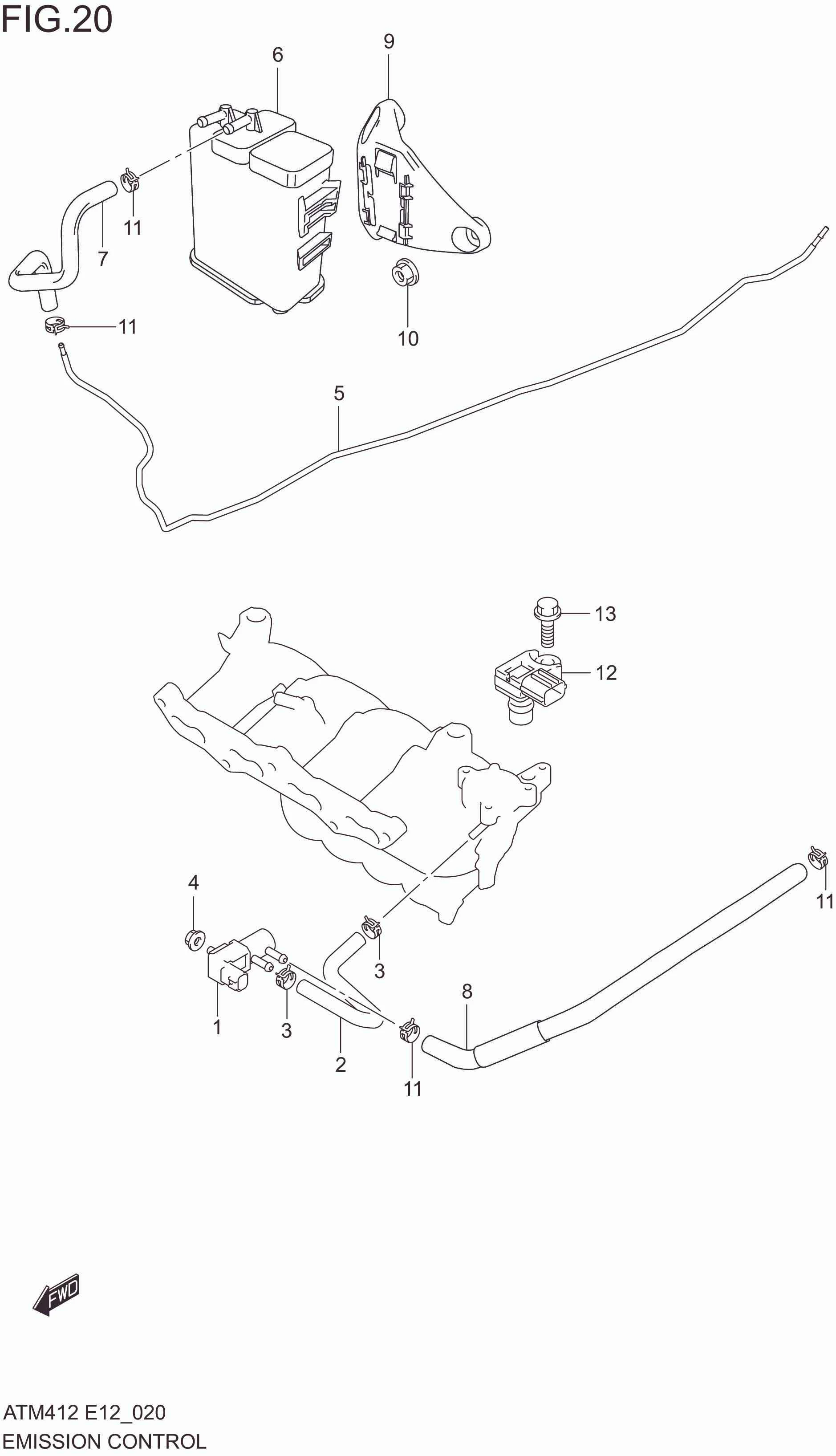

FIG. 20 EMISSION CONTROL

FIG. 20 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp322.500
2-1 18564M66R00-000 HOSE, PURGE 1 Rp53.000 TYPE-1, TYPE-2
2-2 18564M82R50-000 HOSE,PURGE(VSV TO INMF) 1 Rp42.000
3 09401M11432-000 CLIP 2 Rp6.000
4 08316-1006A-000 NUT 1 Rp2.000
5 18351M62R11-000 PIPE, FUEL EVAP 1 Rp183.000
6 18560M66R00-000 CANISTER 1 Rp311.500
7-1 18561M66R00-000 HOSE, CANISTER INLET 1 Rp53.000 TYPE-1, TYPE-2
7-2 18561M66R00-000 HOSE, CANISTER INLET 1 Rp53.000 TYPE3
8-1 18562M66R00-000 HOSE, PURGE 1 Rp67.500 TYPE-1, TYPE-2
8-2 18562M66R20-000 HOSE, PURGE 1 Rp172.500 TYPE3
9 18570M62R10-000 BRACKET, CANISTER 1 Rp33.000
10 09159-06076-000 NUT 3 Rp19.500
11 09401M11432-000 CLIP 4 Rp6.000
12 18590M76M00-000 SENSOR, MAP 1 Rp379.500
13 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
