Ignis MC 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 CRANKSHAFTFIG. 6 CAM SHAFT/VALVEFIG. 7 CAM CHAINFIG. 8 ENGINE MOUNTINGFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPE/FUEL INJECTORFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

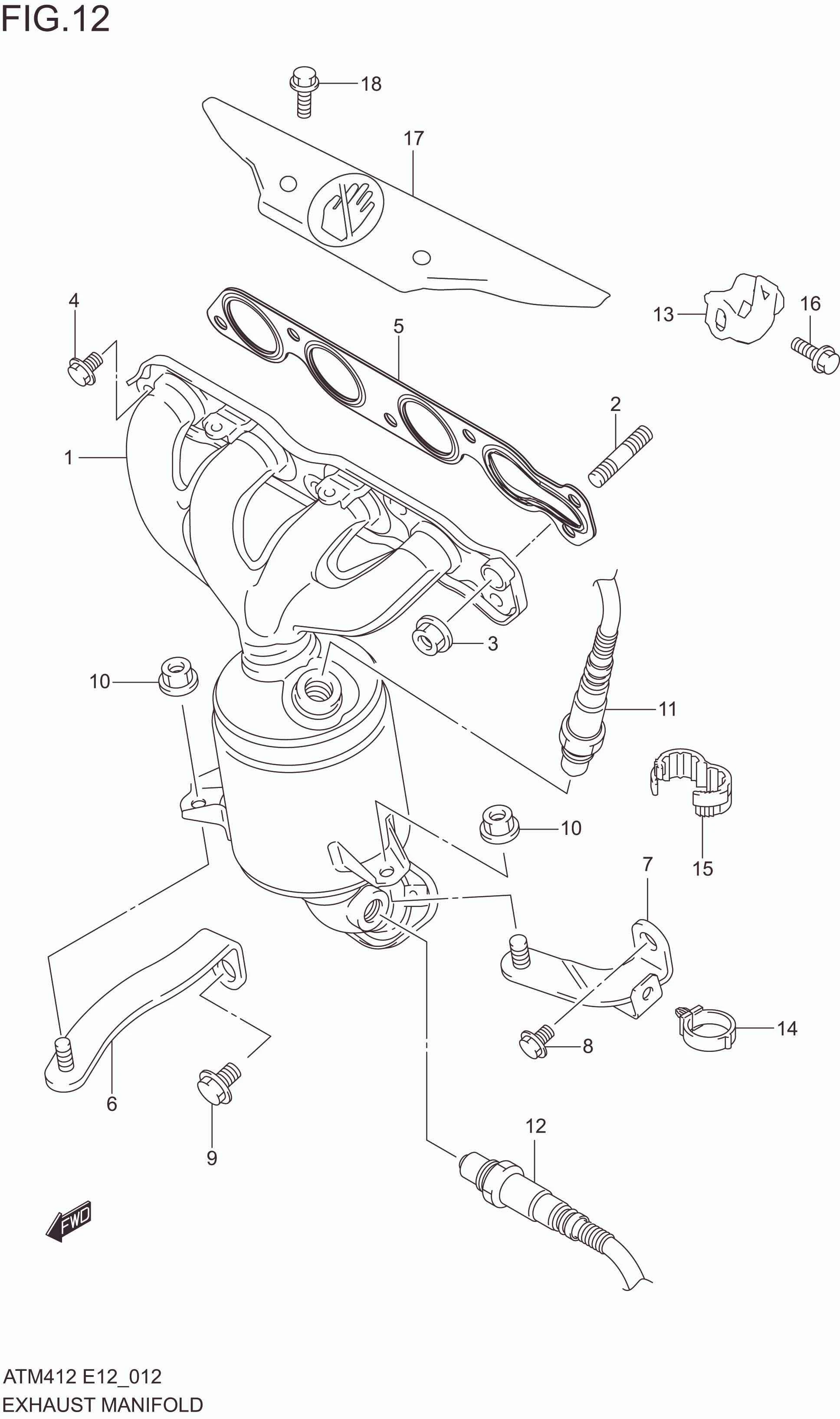

FIG. 12 EXHAUST MANIFOLD

FIG. 12 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110M68P00-000 MANIFOLD, EXH 1 Rp7.776.000
2 14118-63J00-000 STUD BOLT, EXH MANF 3 Rp21.500
3 08316-1010A-000 NUT 3 Rp3.500
4 01550-1020A-000 BOLT 3 Rp21.000
5 14140M83K00-000 GASKET, EXH MANF 1 Rp66.500
6 14271-73K00-000 STIFFENER, EXH MANF 1 Rp20.500
7 14272-73KA0-000 STIFFENER, EXH MANF 1 Rp23.500
8 01550-0820A-000 BOLT 1 Rp5.500
9 01550-1020A-000 BOLT 1 Rp21.000
10 08316-1008A-000 NUT 2 Rp3.500
11 18213M68P01-000
SUB: 18213M68P00-000		 SENSOR, OXYGEN 1 Rp995.500
12 18213M68P11-000
SUB: 18213M68P10-000		 SENSOR,OXYGEN RR 1 Rp980.000
13 18214M68P00-000 BRACKET, OXYGEN SENSOR 1 Rp6.500
14 09403M12404-000 CLAMP 2 Rp5.500
15 09408M00L13-000 CLAMP 1 Rp7.000
16 01550M0612A-000 BOLT 1 Rp5.000
17 14121-54M00-000 PLATE,CAUTION 1 Rp188.000
18 01550-0612C-000 BOLT,CAUTION PLATE 2 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
