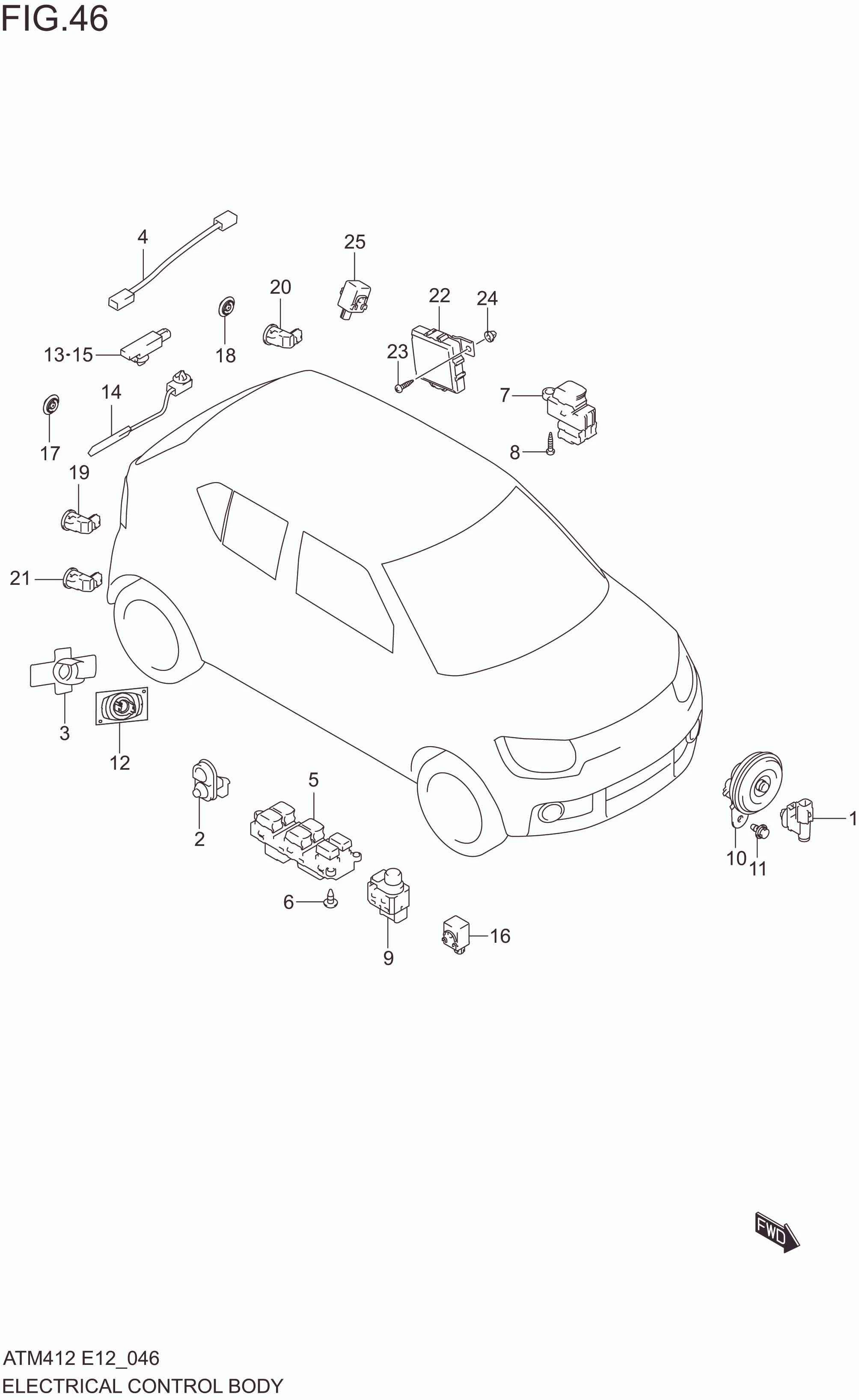

FIG. 46 ELECTRICAL CONTROL BODY

FIG. 46 ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 95643M67P00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp189.000 GLX;5AGS:GL
2 37670M60M10-000 SWITCH ASSY, DOOR 4 Rp35.000
3 37736M69R00-000 BRACKET,PARK SNSR 2 Rp34.500 TYPE-2,3:GLX
4 37177M66R10-000 SWITCH ASSY, BACK DOOR & KLS 1 Rp184.000 GLX
5 37990M68P32-000
SUB: 37990M68P31-000		 SWITCH ASSY, POWER WINDOW MA 1 Rp1.008.000
6 03541-0410A-000 SCREW 3 Rp11.000
7 37995M79M02-000 SWITCH ASSY, POWER WINDOW SUB 3 Rp109.500
8 03541-0410A-000 SCREW 3 Rp11.000
9-1 37950M79M01-000 SWITCH ASSY, MIRROR 1 Rp167.000 GL
9-2 37950M79M11-000 SWITCH ASSY, MIRROR 1 Rp205.500 TYPE-1:GLX
9-3 37950M56R00-000 SWITCH ASSY, MIRROR 1 Rp113.500 TYPE-2:GLX
10-1 38500M66R00-000 HORN ASSY, LOW PITCHED 1 Rp175.000 TYPE-1
10-2 38500M82S00-000 HORN ASSY, LOW PITCHED 1 Rp128.000 TYPE-2,TYPE-3
11 09115-08001-000 BOLT (8X18) 1 Rp21.500
12 37736M82S00-000 BRACKET,PARK SNSR CORNER 2 Rp35.000 TYPE-2,3:GLX
13 37175M68P10-000 ANTENNA ASSY, KLS BACK DOOR 1 Rp260.000 GLX
14 37175M68P20-000 ANTENNA ASSY, KLS LUGGAGE 1 Rp278.500 GLX
15 37175M68P10-000 ANTENNA ASSY,KLS INSIDE 1 Rp260.000 GLX
16 38590-72M00-000 BUZZER ASSY, KLS 1 Rp441.500 GLX
17 09250-16015-000 CAP,BACK DOOR PANEL 1 Rp3.500 GL
18 09250-16015-000 CAP,BACK DOOR PANEL 1 Rp3.500 5AGS:GLX
19 37735M66R01-000 SENSOR ASSY,PARK 1 Rp499.500 TYPE-1:GLX
20 37735M66R51-000 SENSOR ASSY,PARK 1 Rp499.500 TYPE-1:GLX
21-8 37735M69R01-ZAM SENSOR ASSY,PARK 2 Rp353.500 TYPE-2,3:GLX
21-12 37735M69R01-Z2S SENSOR ASSY,PARK 2 Rp353.500 TYPE-2,3:GLX
21-11 37735M69R01-ZYE SENSOR ASSY,PARK 2 Rp322.000 TYPE-2,3:GLX
21-10 37735M69R01-ZNZ SENSOR ASSY,PARK 2 Rp327.000 TYPE-2,3:GLX
21-9 37735M69R01-ZHJ SENSOR ASSY,PARK 2 Rp268.000 TYPE-2,3:GLX
21-7 37735M69R01-ZYR SENSOR ASSY, PARK 2 Rp327.000 TYPE-2,3:GLX
21-6 37735M79M01-Z2S SENSOR ASSY, PARK 2 Rp629.000 TYPE-1:GLX
21-5 37735M79M01-ZWS SENSOR ASSY, PARK 2 Rp448.500 TYPE-1:GLX
21-4 37735M79M01-ZWR SENSOR ASSY, PARK 2 Rp448.500 TYPE-1:GLX
21-3 37735M79M01-ZNZ SENSOR ASSY, PARK 2 Rp649.000 TYPE-1:GLX
21-2 37735M79M01-ZHJ SENSOR ASSY, PARK 2 Rp641.500 TYPE-1:GLX
21-1 37735M79M01-ZAM SENSOR ASSY, PARK 2 Rp637.500 TYPE-1:GLX
22-1 37730M66R00-000 CONTROLLER ASSY,PARK SNSR 1 Rp1.067.000 TYPE-1:GLX
22-2 37730M82S00-000 CONTROLLER ASSY,PARK SNSR 1 Rp566.500 TYPE-2,3:GLX
23 03141M0612A-000 SCREW,PARK SNSR CONT 2 Rp4.500 GLX
24 71851M70F00-000 NUT,PARK SNSR CONT 4 Rp4.000 GLX
25 37734M79M00-000 BUZZER,PARK SNSR 1 Rp241.500 GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
