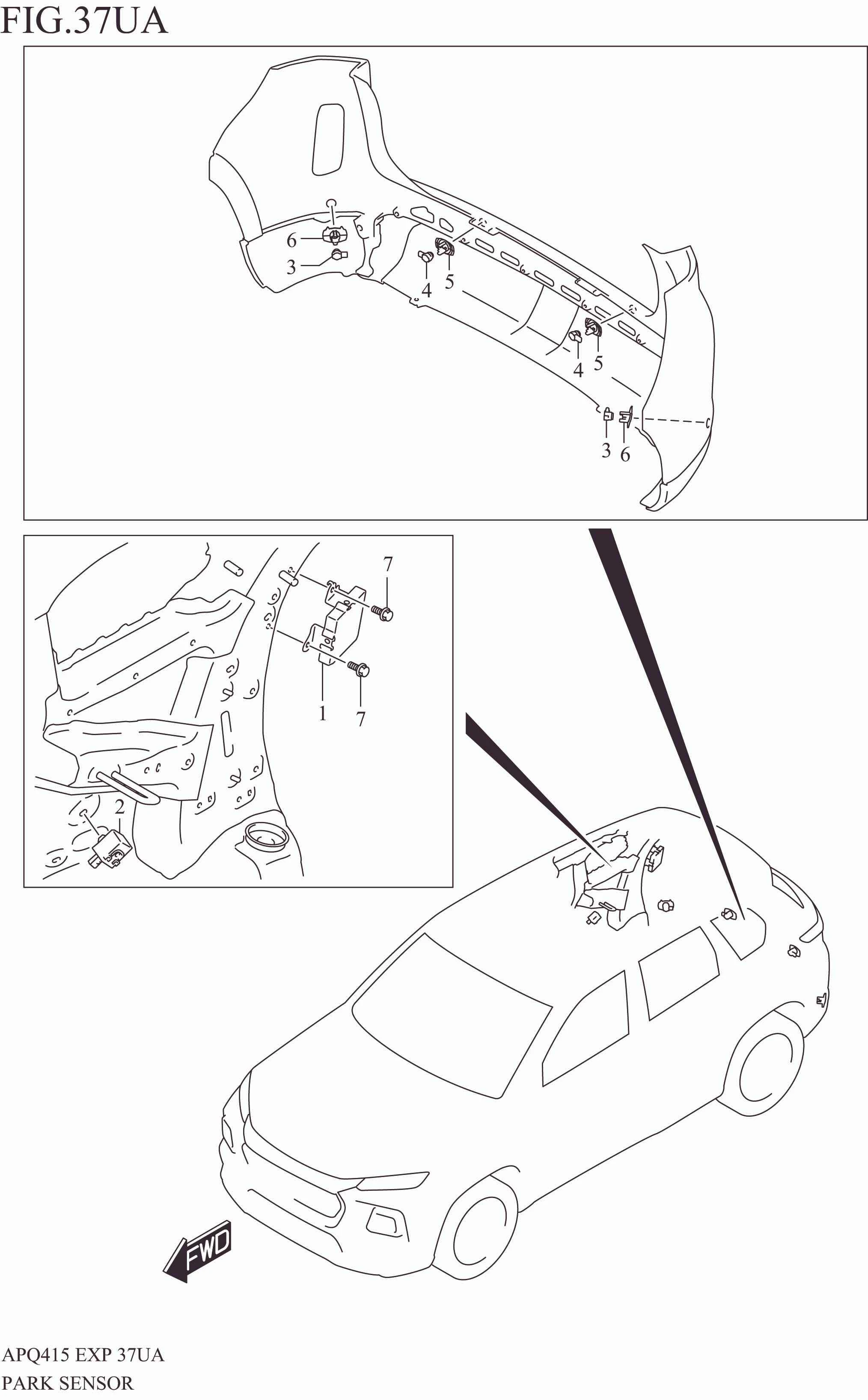

PARK SENSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37730M76T00-000	CONTROLLER ASSY, PARK SNSR	1	Rp580.500
2	37734M56R00-000	BUZZER, PARK SNSR	1	Rp93.500
3-1	37735M55T00-WBE	SENSOR ASSY, PARK (SILVER) R :GL	2	Rp285.500	GL
3-2	37735M55T00-WBF	SENSOR ASSY, PARK (GRAY) R :GL	2	Rp285.500	GL
3-3	37735M55T00-WBG	SENSOR ASSY, PARK (RED) R :GL	2	Rp285.500	GL
3-4	37735M55T00-WBH	SENSOR ASSY, PARK (BLUE) R :GL	2	Rp285.500	GL
3-5	37735M55T00-ZAM	SENSOR ASSY, PARK (BLACK) R :GL	2	Rp285.500	GL
3-6	37735M55T00-ZHJ	SENSOR ASSY, PARK (WHITE) R :GL	2	Rp280.500	GL
3-7	37735M55T00-ZQD	SENSOR ASSY, PARK (BLACK) R :GL	2	Rp298.500	GL
3-8	37735M55T00-WBE	SENSOR ASSY, PARK (SILVER) R :GLX R :BODY COLOR:ERD,WBE	2	Rp285.500	GLX
3-9	37735M55T00-WBF	SENSOR ASSY, PARK (GRAY) R :GLX	2	Rp285.500	GLX
3-10	37735M55T00-WBG	SENSOR ASSY, PARK (RED) R :GLX R :BODY COLOR:ESL,WBG	2	Rp285.500	GLX
3-11	37735M55T00-WBH	SENSOR ASSY, PARK (BLUE) R :GLX	2	Rp285.500	GLX
3-12	37735M55T00-ZAM	SENSOR ASSY, PARK (BLACK) R :GLX	2	Rp285.500	GLX
3-13	37735M55T00-ZHJ	SENSOR ASSY, PARK (WHITE) R :GLX R :BODY COLOR:C9J,ZHJ	2	Rp280.500	GLX
3-14	37735M55T00-ZQD	SENSOR ASSY, PARK (BLACK) R :GLX	2	Rp298.500	GLX
4	37735M76T00-000	SENSOR ASSY, PARK	2	Rp298.500
5	37736M55T00-000	BRACKET, PARK SNSR	2	Rp42.500
6-1	37736M76T10-WBE	BRACKET, PARK SNSR CORNER R :GL (SILVER)	2	Rp39.500	GL
6-2	37736M76T10-WBF	BRACKET, PARK SNSR CORNER R :GL (GRAY)	2	Rp39.500	GL
6-3	37736M76T10-WBG	BRACKET, PARK SNSR CORNER R :GL (RED)	2	Rp39.500	GL
6-4	37736M76T10-WBH	BRACKET, PARK SNSR CORNER R :GL (BLUE)	2	Rp44.500	GL
6-5	37736M76T10-ZAM	BRACKET, PARK SNSR CORNER R :GL (BLACK)	2	Rp39.500	GL
6-6	37736M76T10-ZHJ	BRACKET, PARK SNSR CORNER R :GL (WHITE)	2	Rp39.500	GL
6-7	37736M76T10-ZQD	BRACKET, PARK SNSR CORNER R :GL (BLACK)	2	Rp39.500	GL
6-8	37736M76T10-WBE	BRACKET, PARK SNSR CORNER R :GLX (SILVER) R :BODY COLOR:ERD,WBE	2	Rp39.500	GLX
6-9	37736M76T10-WBF	BRACKET, PARK SNSR CORNER R :GLX (GRAY)	2	Rp39.500	GLX
6-10	37736M76T10-WBG	BRACKET, PARK SNSR CORNER R :GLX (RED) R :BODY COLOR:ESL,WBG	2	Rp39.500	GLX
6-11	37736M76T10-WBH	BRACKET, PARK SNSR CORNER R :GLX (BLUE)	2	Rp44.500	GLX
6-12	37736M76T10-ZAM	BRACKET, PARK SNSR CORNER R :GLX (BLACK)	2	Rp39.500	GLX
6-13	37736M76T10-ZHJ	BRACKET, PARK SNSR CORNER R :GLX (WHITE) R :BODY COLOR:C9J,ZHJ	2	Rp39.500	GLX
6-14	37736M76T10-ZQD	BRACKET, PARK SNSR CORNER R :GLX (BLACK)	2	Rp39.500	GLX
7	02162-0612A-000	SCREW	2	Rp11.000
