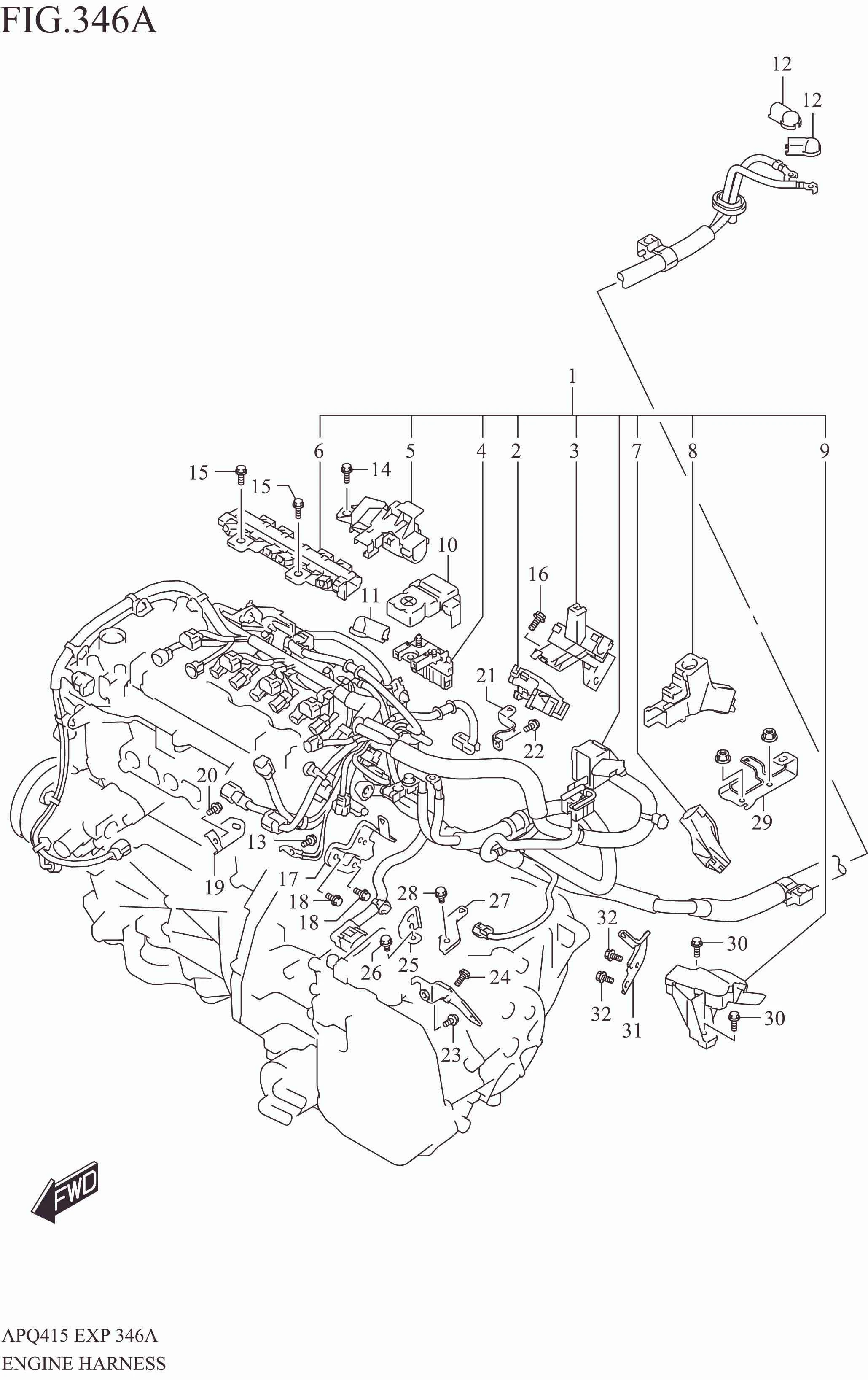

ENGINE HARNESS (K15C:RHD:6AT:2WD)

No	No. Part	Description	Qty	Price Per Pcs
1	36650M76T10-000	HARNESS ASSY, ENG	1	Rp6.476.500
2	36677M50U10-000	.PROTECTOR, ENG HARN ST	1	Rp36.500
3	36677M76TM0-000	.PROTECTOR, ENG HARN BODY	1	Rp35.500
4	36739M72R00-000	.FUSE, BATTERY	1	Rp309.000
5	36677M50U00-000	.PROTECTOR, ENG HARN	1	Rp64.000
6	36677M55T40-000	.PROTECTOR, ENG HARN HEAD COVER	1	Rp82.000
7	36677M76T80-000	.PROTECTOR, ENG HARN AT	1	Rp119.500
8	36677M76T50-000	.PROTECTOR, ENG HARN BODY	1	Rp60.000
9	36677M76T60-000	.PROTECTOR, ENG HARN STAB	1	Rp77.000
10	36694M69P10-000	COVER, BTRY TERMINAL	1	Rp33.000
11	36997M68P00-000	COVER, TERMINAL	1	Rp9.500
12	36997M68P10-000	COVER, TERMINAL	2	Rp65.000
13	01550-0612C-000	BOLT	1	Rp19.500
14	01550-0616C-000	BOLT	1	Rp3.500
15	01550-0616C-000	BOLT	2	Rp3.500
16	01550-0616C-000	BOLT	1	Rp3.500
17	36653M66T30-000	BRACKET, ENG HARN HEAD	1	Rp11.500
18	01550M0612A-000	BOLT	2	Rp5.000
19	36653M66T90-000	BRACKET, ENG HARN GND	1	Rp6.000
20	01550-0612C-000	BOLT	1	Rp19.500
21	36653M68P80-000	BRACKET, ENG HARN	1	Rp8.500
22	01550-0612C-000	BOLT	1	Rp19.500
23	36651M76TS0-000	BRACKET, ENG HARN AT RR	1	Rp19.000
24	01550-0616C-000	BOLT	1	Rp3.500
25	36651M68P90-000	BRACKET, ENG HARN AT	1	Rp15.000
26	01550-0612C-000	BOLT	1	Rp19.500
27	36651M60R10-000	BRACKET, ENG HARN AT	1	Rp9.000
28	01550-0612C-000	BOLT	1	Rp19.500
29	36651M76T70-000	BRACKET, ENG HARN ECU BRKT	1	Rp24.000
30	01550-0616C-000	BOLT	2	Rp3.500
31	36653M54PA0-000	BRACKET, ENG HARN BODY	1	Rp13.500
32	01551-0612C-000	BOLT	2	Rp18.000
