ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SET CYLINDER HEAD CYLINDER OIL PAN ENGINE MOUNTING (MT) ENGINE MOUNTING (AT) CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER FUEL PUMP DELIVERY PIPE OIL PUMP WATER PUMP RADIATOR WATER HOSE EMISSION CONTROL LABEL

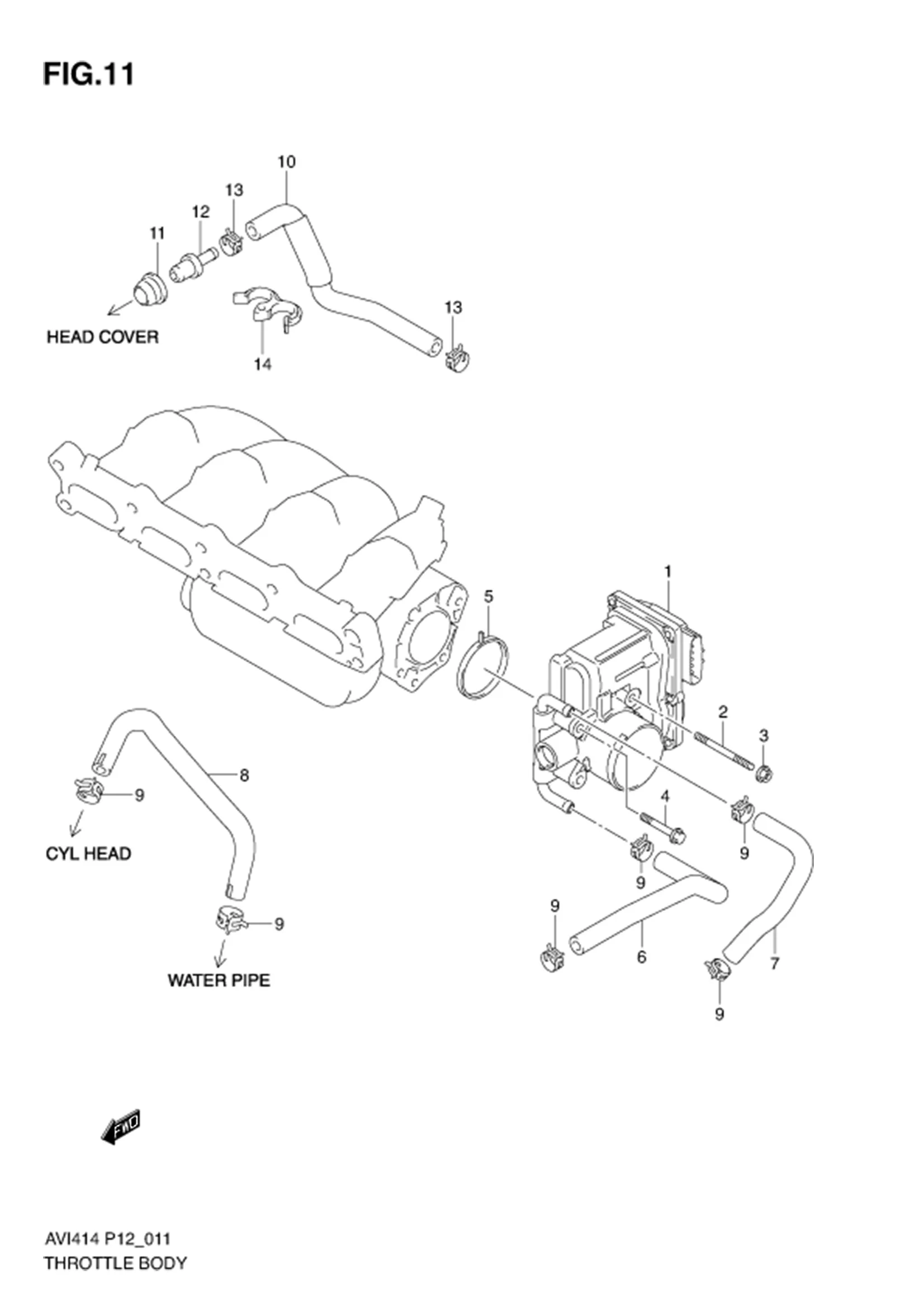

THROTTLE BODY

THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
13400-71L00-000
SUB: 13400B77M00N000		 BODY ASSY, THROTTLE 1 Rp7.284.500
13421-58M00-000
SUB: 13421B58M00N000		 GASKET, THROTTLE BODY 1 Rp19.500
13491-77M00-000
SUB: 13491B77M00N000		 HOSE, WTR THROT BODY INLET 1 Rp19.000
13492-77M00-000
SUB: 13492B77M00N000		 HOSE, WTR THROT BODY OUT 1 Rp15.000
17698-77M00-000
SUB: 17698B77M00N000		 HOSE, WATER BYPASS 1 Rp21.500
11193-77M00-000
SUB: 11193B77M00N000		 HOSE, PCV 1 Rp27.500
2 01421-0650A-000 STUD BOLT 3 Rp16.000
3 01550-0650A-000 BOLT 1 Rp5.500
8 18118-60M00-000 VALVE, PCV 1 Rp177.000
9 09401-12410-000 CLIP 6 Rp16.500
12 11198M79F00-000
SUB: 11198M58B00-000		 COVER 1 Rp16.500
13 09401-13414-000 CLIP 2 Rp19.500
14 09408-00155-000 CLAMP 1 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
