ERTIGA TYPE 2

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKET SET CYLINDER HEAD CYLINDER OIL PAN ENGINE MOUNTING (MT) ENGINE MOUNTING (AT) CRANKSHAFT CAM SHAFT/VALVE CAM CHAIN INTAKE MANIFOLD THROTTLE BODY AIR CLEANER EXHAUST MANIFOLD MUFFLER FUEL PUMP DELIVERY PIPE OIL PUMP WATER PUMP RADIATOR WATER HOSE EMISSION CONTROL LABEL

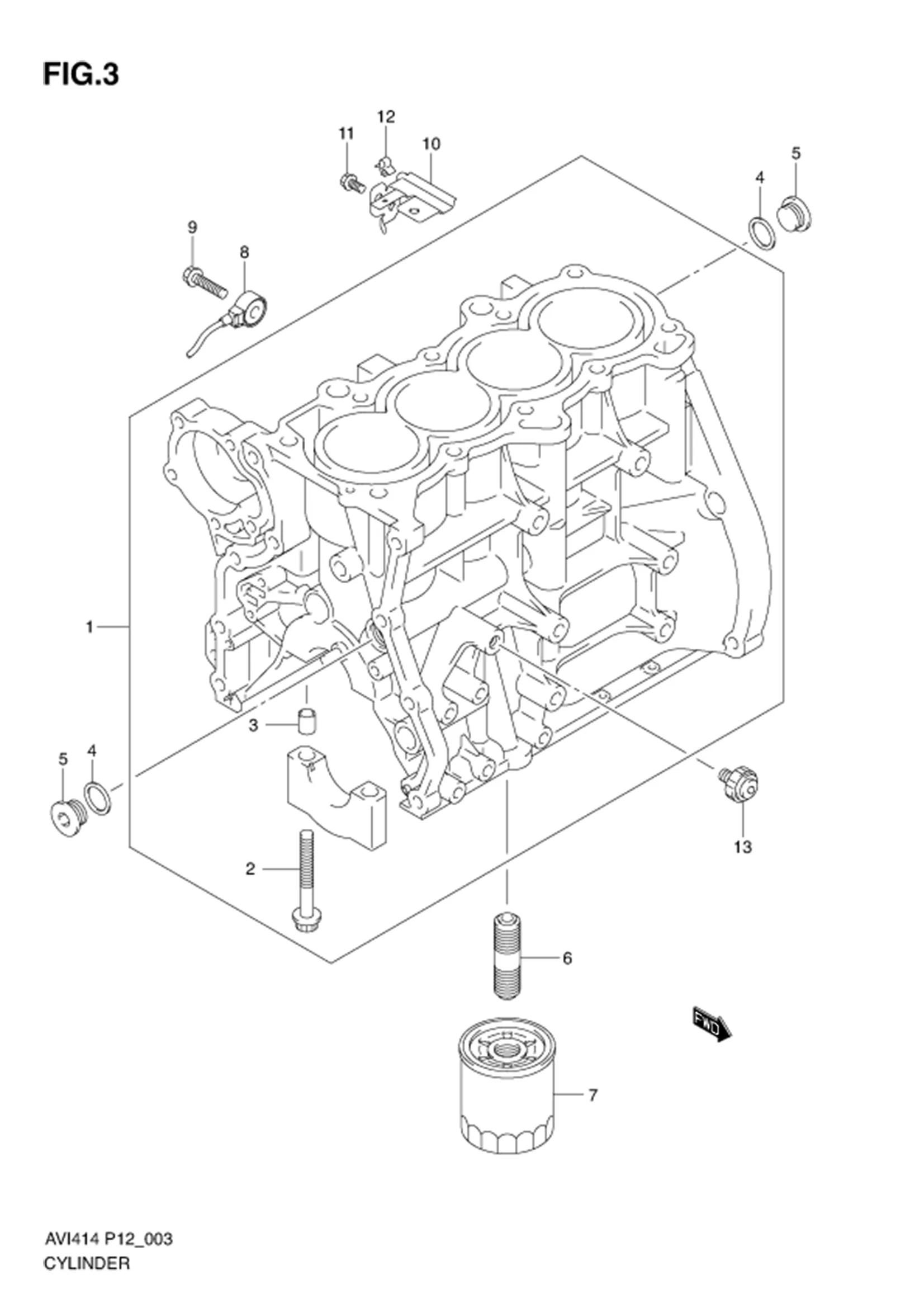

CYLINDER

CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
11200-71L10-X12
SUB: 11200-71L00-X12		 ASSY, CYLINDER 1 Rp19.972.000
18640-77M00-000
SUB: 18640B77M00N000		 SENSOR ASSY, KNOCK 1 Rp140.500
18645-83K00-000
SUB: 18645B83K00N000		 BRACKET, KNOCK SENSOR 1 Rp17.000
1 11241-68K00-000
SUB: 11241B68K00N000		 STAND, OIL FILTER 1 Rp15.000
2 11261-69J01-000
SUB: 11261-69J00-000		 •BOLT, CRANK BEARING CAP 10 Rp37.000
4 11216-77E00-000 •GASKET (18X22X2) 3 Rp24.000
5 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
6 09248-18011-000 •PLUG (18X8) 3 Rp38.000
10 09403-06412-000 CLAMP 1 Rp16.500
11 16510-61J00-000 FILTER ASSY, OIL 1 Rp37.000
11 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
