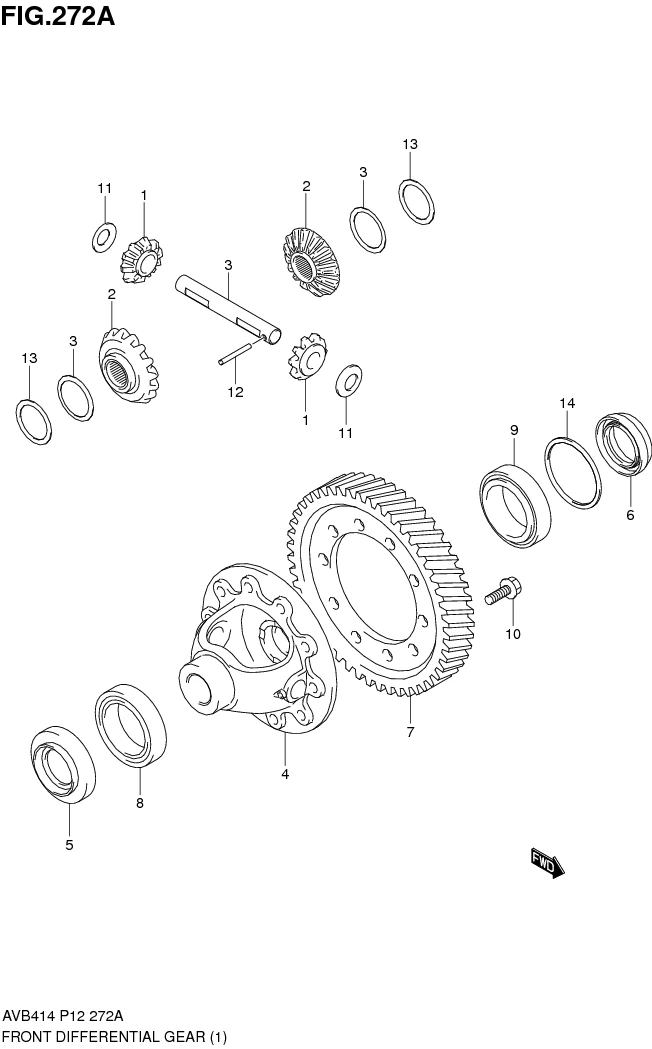

FIG.272A FRONT DIFFERENTIAL GEAR (5MT)

FIG.272A FRONT DIFFERENTIAL GEAR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 27331-80J00-000 PINION, DIFFERENTIAL 2 Rp529.500
2 27341-80J00-000 GEAR, DIFFERENTIAL SIDE 2 Rp664.500
3 27361-84M00-000 WASHER,DIFF SIDE GEAR SPRG (35.2X44X0.3) 2 Rp6.500
4 27411-80J00-000 CASE, FRONT DIFF 1 Rp1.567.500
5 27431-77M00-000
SUB: 27431B77M00N000		 SEAL, DIFF SIDE OIL RH 1 Rp51.000
6 27432-77M00-000
SUB: 27432B77M00N000		 SEAL, DIFF SIDE OIL LH 1 Rp30.000
7 27511M55KA2-000 GEAR, FINAL 1 Rp1.844.500
8 27521-73RA0-000
SUB: 27521B77M00N000		 BEARING ASSY, DIFF SIDE RH 1 Rp182.500
9 27524-73RA0-000
SUB: 27524B77M00N000		 BEARING ASSY, DIFF SIDE LH 1 Rp182.500
10 09103-10189-000
SUB: 09103-10722-000		 BOLT (10X23) 10 Rp29.000
11 09164-17011-000 WASHER (17.3X34X1) 2 Rp29.000
12 09205M05007-000 SPRING PIN (5X36) 1 Rp5.000
13-7 09181M35159-000 WASHER (T:0.85) 2 Rp9.000
13-6 09181M35158-000 WASHER (T:0.75) 2 Rp9.000
13-5 09181M35157-000 WASHER (T:0.65) 2 Rp9.000
13-3 09160M35014-000 WASHER (T:0.70) 2 Rp10.000
13-2 09160M35013-000 WASHER (T:0.80) 2 Rp9.000
13-1 09160M35006-000 WASHER (T:0.90) 2 Rp8.500
13-4 09160M35015-000 WASHER (T:0.60) 2 Rp6.500
14-18 29541-79JA0-168 SHIM, DIFF SIDE BRG (T:1.68) 1 Rp64.000
14-17 DISCONTINUE
SUB: 29541-79JA0-164		 SHIM, DIFF SIDE BRG (T:1.64) 1 -
14-16 29541-79JA0-160 SHIM, DIFF SIDE BRG (T:1.60) 1 Rp64.000
14-15 DISCONTINUE
SUB: 29541-79JA0-156		 SHIM, DIFF SIDE BRG (T:1.56) 1 -
14-14 DISCONTINUE
SUB: 29541-79JA0-152		 SHIM, DIFF SIDE BRG (T:1.52) 1 -
14-13 DISCONTINUE
SUB: 29541-79JA0-148		 SHIM, DIFF SIDE BRG (T:1.48) 1 -
14-12 DISCONTINUE
SUB: 29541-79JA0-144		 SHIM, DIFF SIDE BRG (T:1.44) 1 -
14-11 29541-79JA0-140 SHIM, DIFF SIDE BRG (T:1.40) 1 Rp64.000
14-10 29541-79JA0-136 SHIM, DIFF SIDE BRG (T:1.36) 1 Rp64.000
14-9 29541-79JA0-132 SHIM, DIFF SIDE BRG (T:1.32) 1 Rp64.000
14-8 DISCONTINUE
SUB: 29541-79JA0-128		 SHIM, DIFF SIDE BRG (T:1.28) 1 -
14-7 DISCONTINUE
SUB: 29541-79JA0-124		 SHIM, DIFF SIDE BRG (T:1.24) 1 -
14-6 DISCONTINUE
SUB: 29541-79JA0-120		 SHIM, DIFF SIDE BRG (T:1.20) 1 -
14-5 29541-79JA0-116 SHIM, DIFF SIDE BRG (T:1.16) 1 Rp64.000
14-4 29541-79JA0-112 SHIM, DIFF SIDE BRG (T:1.12) 1 Rp62.000
14-3 29541-79JA0-108 SHIM, DIFF SIDE BRG (T:1.08) 1 Rp64.000
14-2 DISCONTINUE
SUB: 29541-79JA0-104		 SHIM, DIFF SIDE BRG (T:1.04) 1 -
14-1 29541-79JA0-100 SHIM, DIFF SIDE BRG (T:1.00) 1 Rp60.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
