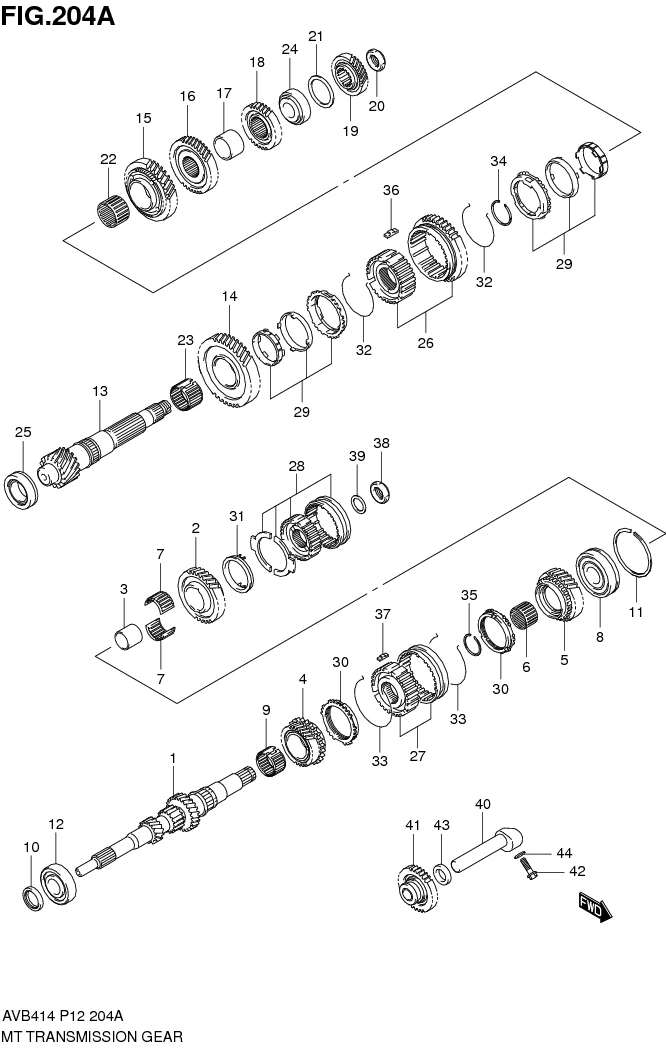

FIG.204A MT TRANSMISSION GEAR (5MT)

FIG.204A MT TRANSMISSION GEAR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111M79M00-000 SHAFT, TRANSAXLE INPUT 1 Rp2.298.000
2 24114-59J20-000 GEAR, INPUT SHAFT 5TH 1 Rp1.350.000
3 24119-61MA0-000 SPACER, INPUT SFT 5TH GR 1 Rp247.500
4 DISCONTINUE
SUB: 24230-68J01-000		 GEAR, INPUT SHAFT 3RD 1 -
5 24240-71C00-000 GEAR, INPUT SHAFT 4TH 1 Rp1.370.500
6 24284-77M00-000
SUB: 24284B77M00N000		 BEARING, 4TH GEAR NDL 1 Rp46.000
7 24285-61MA0-000 BEARING, 5TH GEAR NEEDLE 2 Rp103.000
8 24165-77M00-000 BEARING, INPUT SFT LH 1 Rp220.000
9 09263-35027-000 BEARING (35X40X22.8) 1 Rp146.000
10 24151-77M00-000 SEAL, INPUT SHAFT OIL 1 Rp17.500
11 09380-72002-000 RING (68.1X1.65) 1 Rp42.500
12 24155-77M00-000 BEARING, INPUT SFT RH 1 Rp128.500
13 24131-80J00-000 SHAFT, TRANSMISSION COUNTER 1 Rp2.968.000
14 24311-59J00-000 GEAR, COUNTERSHAFT 1ST 1 Rp1.587.500
15 24321-59J01-000 GEAR, COUNTERSHAFT 2ND 1 Rp1.431.500
16 DISCONTINUE
SUB: 24331-71C00-000		 GEAR, COUNTERSHAFT 3RD 1 -
17 24336-77M00-000
SUB: 24336B77M00N000		 SPACER, 3RD & 4TH GEAR 1 Rp36.500
18 24341-71C00-000 GEAR, COUNTERSHAFT 4TH 1 Rp1.001.000
19 24351-59J01-000 GEAR, COUNTERSHAFT 5TH 1 Rp971.000
20 09159-20009-000 NUT 1 Rp74.000
21-12 09181-41015-000 SHIM (41X52X1.20) 0 Rp44.500
21-11 09181-41014-000 SHIM (41X52X1.15) 0 Rp44.000
21-10 09181-41013-000 SHIM (41X52X1.10) 0 Rp44.000
21-9 09181-41012-000 SHIM (41X52X1.05) 0 Rp44.000
21-8 09181-41011-000 SHIM (41X52X1.00) 0 Rp47.500
21-7 09181-41010-000 SHIM (41X52X0.95) 0 Rp44.000
21-5 09181-41008-000 SHIM (41X52X0.85) 0 Rp44.000
21-4 09181-41007-000 SHIM (41X52X0.80) 0 Rp47.500
21-3 09181-41006-000 SHIM (41X52X0.75) 0 Rp44.000
21-2 09181-41005-000 SHIM (41X52X0.70) 0 Rp44.000
21-1 09181-41004-000 SHIM (41X52X0.65) 0 Rp44.000
21-6 09181-41009-000 SHIM (41X52X0.90) 0 Rp44.000
22 09263-35039-000 BEARING (35X50X28) 1 Rp179.500
23 09263-37009-000 BEARING (37X42X27.8) 1 Rp192.000
24 24175-77M00-000 BEARING ASSY, COUNTERSHAFT RH 1 Rp205.500
25 24185-77M00-000 BEARING ASSY, COUNTERSHAFT LH 1 Rp111.000
26 24400-79PA0-000 HUB ASSY, LOW SPEED SYNC 1 Rp1.634.000
27 24410-77MA0-000 HUB ASSY, HIGH SPEED SYNC 1 Rp1.032.000
28 24420-79PA0-000 HUB ASSY, 5TH SPEED SYNC 1 Rp1.165.000
29 24430-55G01-000 RING ASSY, LOW GEAR SYNC 2 Rp1.048.500
30 24432-77M00-000 RING, HIGH SPEED SYNC 2 Rp71.500
31 24435-77M00-000 RING, 5TH SPEED SYNC 1 Rp149.500
32 24441-77MA0-000 SPRING, LOW SPEED SYNC 2 Rp7.000
33 24442-77MA0-000 SPRING, HIGH SPEED SYNC 2 Rp7.000
34 24451-70C00-000 CIRCLIP, LOW SPEED SYNC HUB 1 Rp31.000
35 24452-61MA0-000 CIRCLIP, HIGH SPEED SYNC HUB 1 Rp40.000
36 24471-70C00-000 KEY, LOW SPEED SYNCHRONIZER 3 Rp30.000
37 24472-60B00-000 KEY, SYNCHRONIZER 3 Rp25.000
38 09159-20009-000 NUT 1 Rp74.000
39 DISCONTINUE
SUB: 09160-21005-000		 WASHER (21X30X1) 1 -
40 24551-77M00-000
SUB: 24551B77M00N000		 SHAFT, TRANSAXLE REVERSE GEAR 1 Rp79.500
41 24560-70C60-000
SUB: 24560-70C41-000		 GEAR, REVERSE IDLER 1 Rp924.000
42 24565-60B00-000 BOLT, REVERSE SHAFT 1 Rp21.500
43 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
44 09168M08030-000 GASKET (8.2X17X1) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
