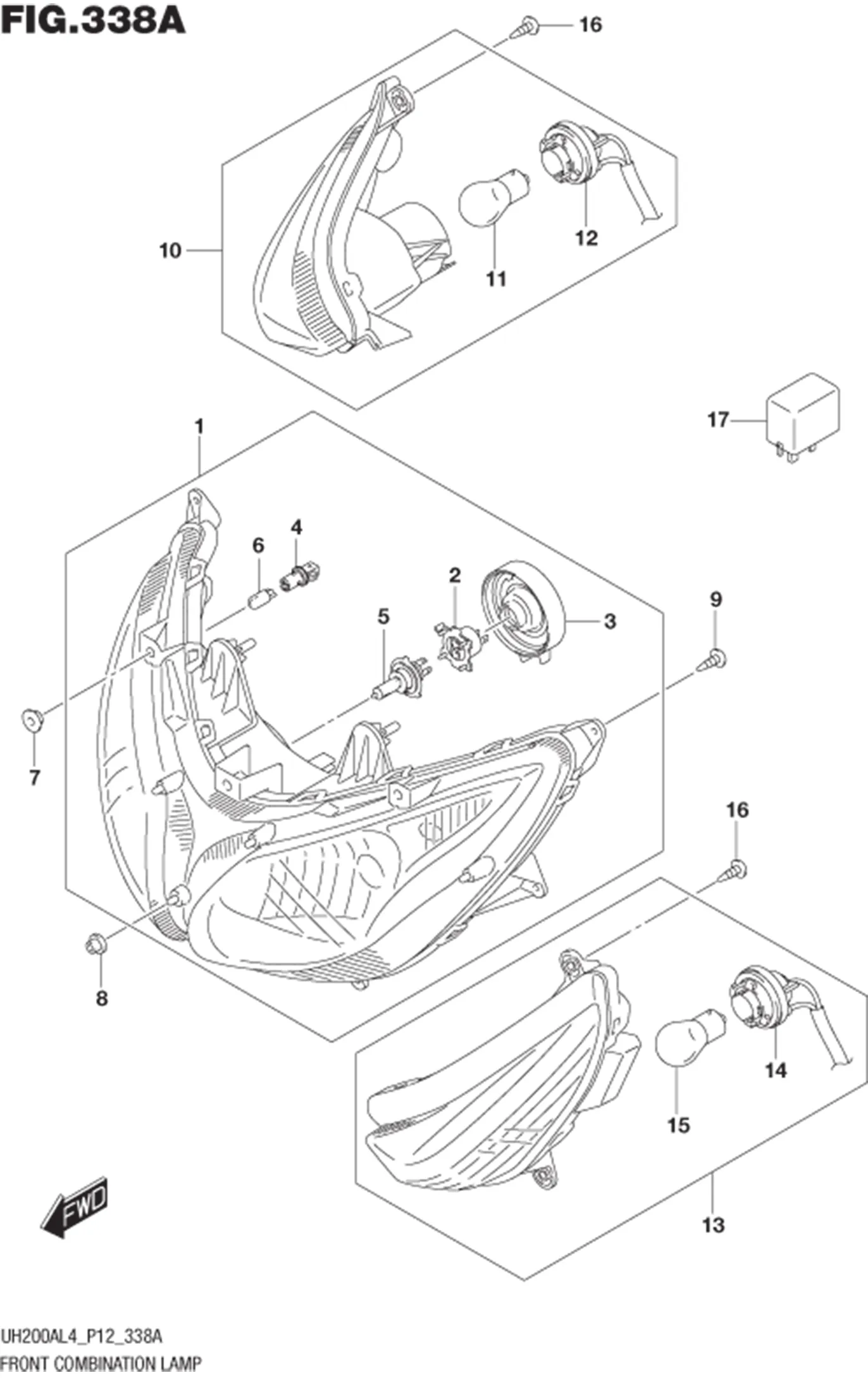

FIG.338A FRONT COMBINATION LAMP

FIG.338A FRONT COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-12J00-000 LAMP ASSY, FRONT COMBINATION 1 Rp1.708.500
2 34175-03H00-000 ?ADAPTOR 2 Rp122.000
3 35179-03H00-000 ?BOOT 2 Rp94.500
4 35118-03H00-000 ?CORD ASSY, POSITION 2 Rp109.000
5 09471-12188-000 ?BULB (12V, 55W) 2 Rp209.000
6 09471-12216-000 ?BULB (12V, 5W) 2 Rp15.000
7 09320-06026-000 CUSHION 3 Rp10.500
8 09320-05018-000 CUSHION 1 Rp7.500
9 03541-0516A-000 SCREW 6 Rp3.500
10 35601-12J01-000
SUB: 35601-12J00-000		 LAMP ASSY, FRONT TURNSIGNAL, R 1 Rp440.000
11 35618-12J00-000 ?CORD ASSY 1 Rp129.000
12 09471-12186-000 ?BULB, (12V21W, AMBER) 1 Rp22.000
13 35602-12J01-000
SUB: 35602-12J00-000		 LAMP ASSY, FRONT TURNSIGNAL, L 1 Rp440.000
14 35638-12J00-000 ?CORD ASSY 1 Rp129.000
15 09471-12186-000 ?BULB, (12V21W, AMBER) 1 Rp22.000
16 03541-0516A-000 SCREW 4 Rp3.500
17 38610-03F01-000
SUB: 38610-03F00-000		 RELAY ASSY, TURNSIGNAL 1 Rp684.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
