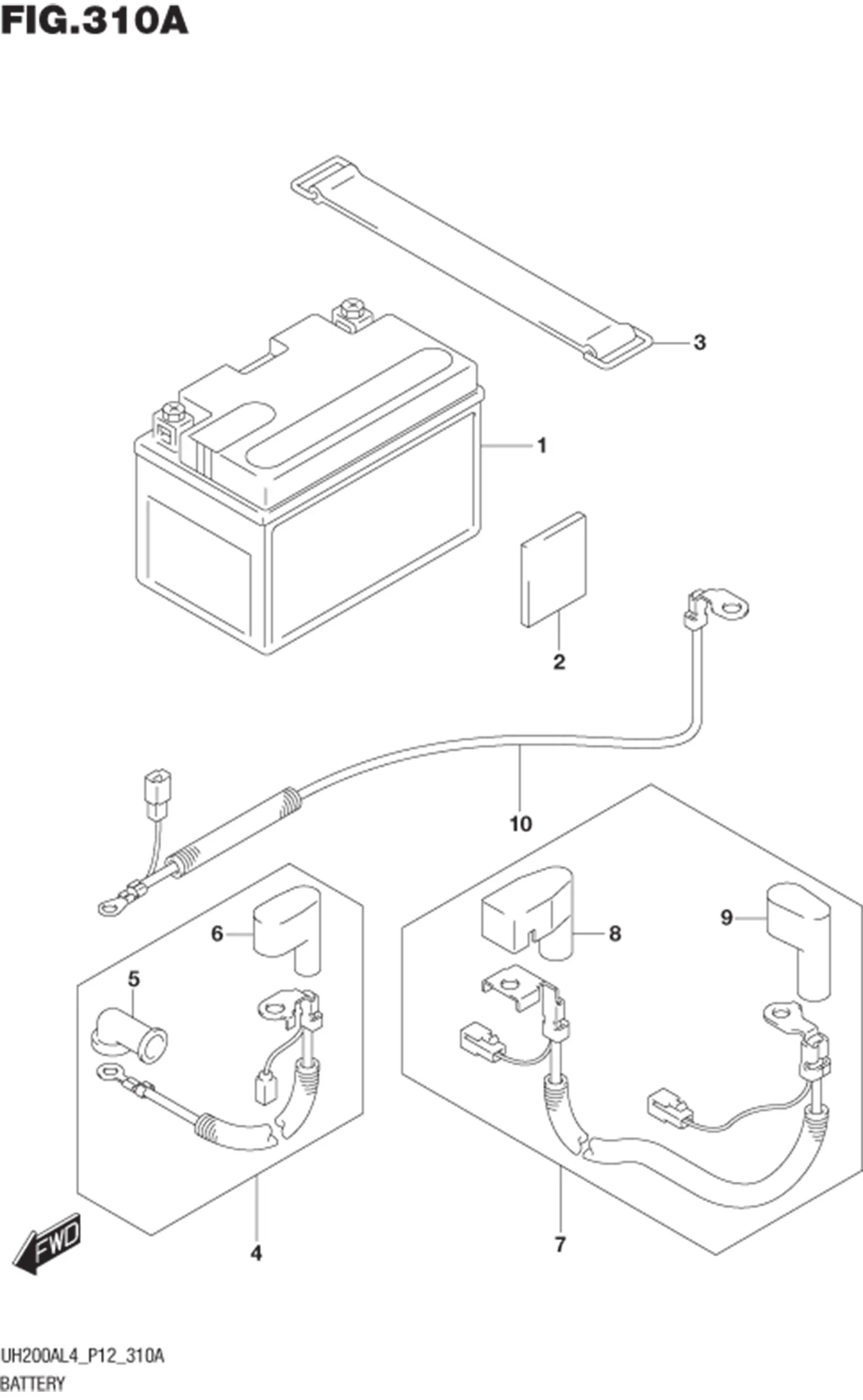

FIG.310A BATTERY

FIG.310A BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 33610-12J10-000		 BATTERY ASSY (12V8AH) 1 - FTX9-BS
2 33652-36000-000 PROTECTOR (30X50X3.0) 1 Rp17.500 CUT AS REQUIRED
3 09462-00015-000 BAND 1 Rp44.000
4 33810-12J10-000 WIRE, STARTER MOTOR 1 Rp116.000
5 31861-48B10-000 ?CAP, STARTER MOTOR LEAD 1 Rp5.000
6 31861-29F00-000 ?CAP, STARTER RELAY 1 Rp36.500
7 33820-12J10-000 WIRE, BATTERY PLUS LEAD 1 Rp205.500
8 33624-27G00-000 ?CAP, BATTERY PLUS 1 Rp53.000
9 31861-29F10-000 ?CAP, STARTER RELAY 1 Rp36.500
10 33860-12J00-000 WIRE, BATTERY MINUS 1 Rp83.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
