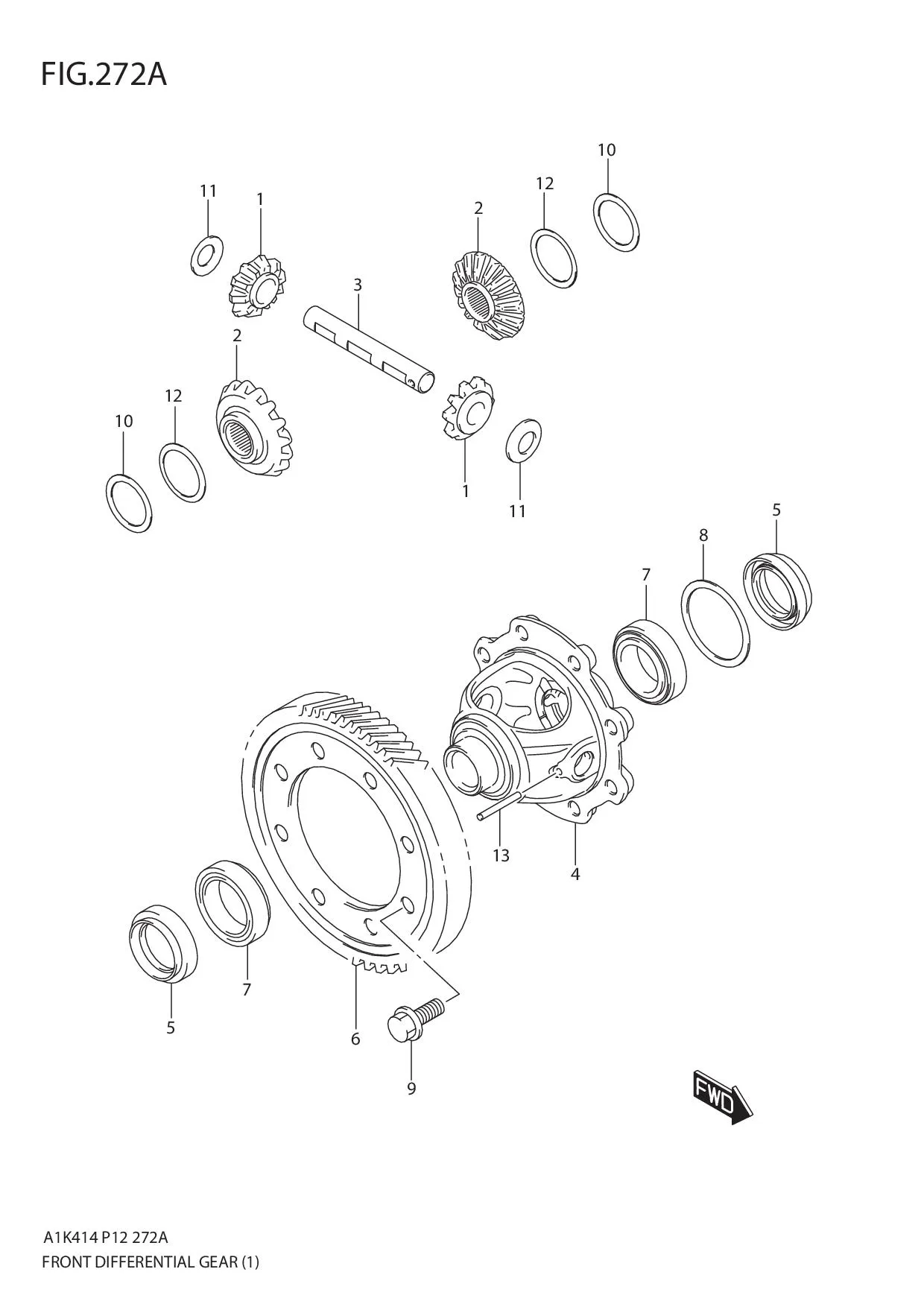

FIG.272A FRONT DIFFERENTIAL GEAR (5MT)

FIG.272A FRONT DIFFERENTIAL GEAR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 27331M55K00-000 PINION, DIFFERENTIAL 2 Rp163.500
2 27341M68K02-000 GEAR, DIFFERENTIAL 2 Rp238.000
3 27351M76M20-000
SUB: 27351M76M00-000		 SHAFT, DIFFERENTIAL PINION 1 Rp75.000
4 27411M68P00-000 CASE, DIFFERENTIAL 1 Rp571.500
5 27432M74LB0-000
SUB: 27432M74LA0-000		 OIL SEAL, DIFF SIDE LH 2 Rp81.500
6 27511M68PA0-000 GEAR, FINAL 1 Rp1.810.000
7 27521M83M00-000 BEARING ASSY, DIFF SIDE 2 Rp298.500
8-11 29541M83M00-106 SHIM, DIFF SIDE BRG (T:1.06) 0 Rp18.500
8-14 29541M83M00-118 SHIM, DIFF SIDE BRG (T:1.18) 0 Rp19.500
8-12 29541M83M00-110 SHIM, DIFF SIDE BRG (T:1.10) 0 Rp19.500
8-13 29541M83M00-114 SHIM, DIFF SIDE BRG (T:1.14) 0 Rp19.500
8-15 29541M83M00-122 SHIM, DIFF SIDE BRG (T:1.22) 0 Rp19.500
8-16 29541M83M00-126 SHIM, DIFF SIDE BRG (T:1.26) 0 Rp19.500
8-17 29541M83M00-130 SHIM, DIFF SIDE BRG (T:1.30) 0 Rp19.500
8-18 29541M83M00-134 SHIM, DIFF SIDE BRG (T:1.34) 0 Rp20.500
8-19 29541M83M00-138 SHIM, DIFF SIDE BRG (T:1.38) 0 Rp20.500
8-20 29541M83M00-142 SHIM, DIFF SIDE BRG (T:1.42) 0 Rp20.500
8-9 29541M83M00-098 SHIM, DIFF SIDE BRG (T:0.98) 0 Rp16.500
8-8 29541M83M00-094 SHIM, DIFF SIDE BRG (T:0.94) 0 Rp18.500
8-7 29541M83M00-090 SHIM, DIFF SIDE BRG (T:0.90) 0 Rp16.500
8-6 29541M83M00-086 SHIM, DIFF SIDE BRG (T:0.86) 0 Rp18.500
8-5 29541M83M00-082 SHIM, DIFF SIDE BRG (T:0.82) 0 Rp18.500
8-4 29541M83M00-078 SHIM, DIFF SIDE BRG (T:0.78) 0 Rp18.500
8-3 29541M83M00-074 SHIM, DIFF SIDE BRG (T:0.74) 0 Rp17.000
8-2 29541M83M00-070 SHIM, DIFF SIDE BRG (T:0.70) 0 Rp17.000
8-1 29541M83M00-066 SHIM, DIFF SIDE BRG (T:0.66) 0 Rp15.000
8-10 29541M83M00-102 SHIM, DIFF SIDE BRG (T:1.02) 0 Rp18.500
9 09103-10189-000 BOLT (10X23) 8 Rp29.000
10-2 09181M35157-000 WASHER (35X46X0.65) 0 Rp9.000
10-10 09160M35023-000 WASHER (35X46X1.05) 0 Rp10.000
10-9 09160M35018-000 WASHER (35X46X1.0) 0 Rp20.500
10-8 09160M35022-000 WASHER (35X46X0.95) 0 Rp10.000
10-7 09160M35021-000 WASHER (35X46X0.9) 0 Rp10.000
10-6 09181M35159-000 WASHER (35X46X0.85) 0 Rp9.000
10-5 09160M35013-000 WASHER (35X46X0.8) 0 Rp9.000
10-4 09181M35158-000 WASHER (35X46X0.75) 0 Rp9.000
10-3 09160M35014-000 WASHER (35X46X0.7) 0 Rp10.000
10-1 09160M35015-000 WASHER (35X46X0.6) 0 Rp6.500
11 09164M17006-000 WASHER (17.3X32X1) 2 Rp8.000
12 09164-35003-000 WASHER (35X44X0.9) 2 Rp51.000
13 09205M05007-000 SPRING PIN (5X36) 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
