BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.202A MT CLUTCH (5MT)FIG.204A MT TRANSMISSION GEAR (5MT)FIG.206A MT TRANSMISSION CASE (5MT)FIG.208A MT GEAR SHIFT FORK (5MT)FIG.210A AT TRANSMISSION ASSY (4AT)FIG.214A AT OIL PUMP (4AT)FIG.216A AT INPUT SHAFT (4AT)FIG.220A AT PLANETARY GEAR (4AT)FIG.226A AT REDUCTION GEAR (4AT)FIG.228A AT FORWARD CLUTCH (4AT)FIG.234A AT 1ST/REVERSE BRAKE (4AT)FIG.237A AT OVER DRIVE BRAKE (4AT)FIG.240A AT TRANSMISSION CASE (4AT)FIG.244A AT VALVE (4AT)FIG.246A AT PARKING LOCK (4AT)FIG.248A AT OIL HOSE (4AT)FIG.260A GEAR SHIFT CONTROL (5MT)FIG.260B GEAR SHIFT CONTROL (4AT)FIG.264A SELECT LEVER (4AT)FIG.272A FRONT DIFFERENTIAL GEAR (5MT)FIG.272B FRONT DIFFERENTIAL GEAR (4AT)

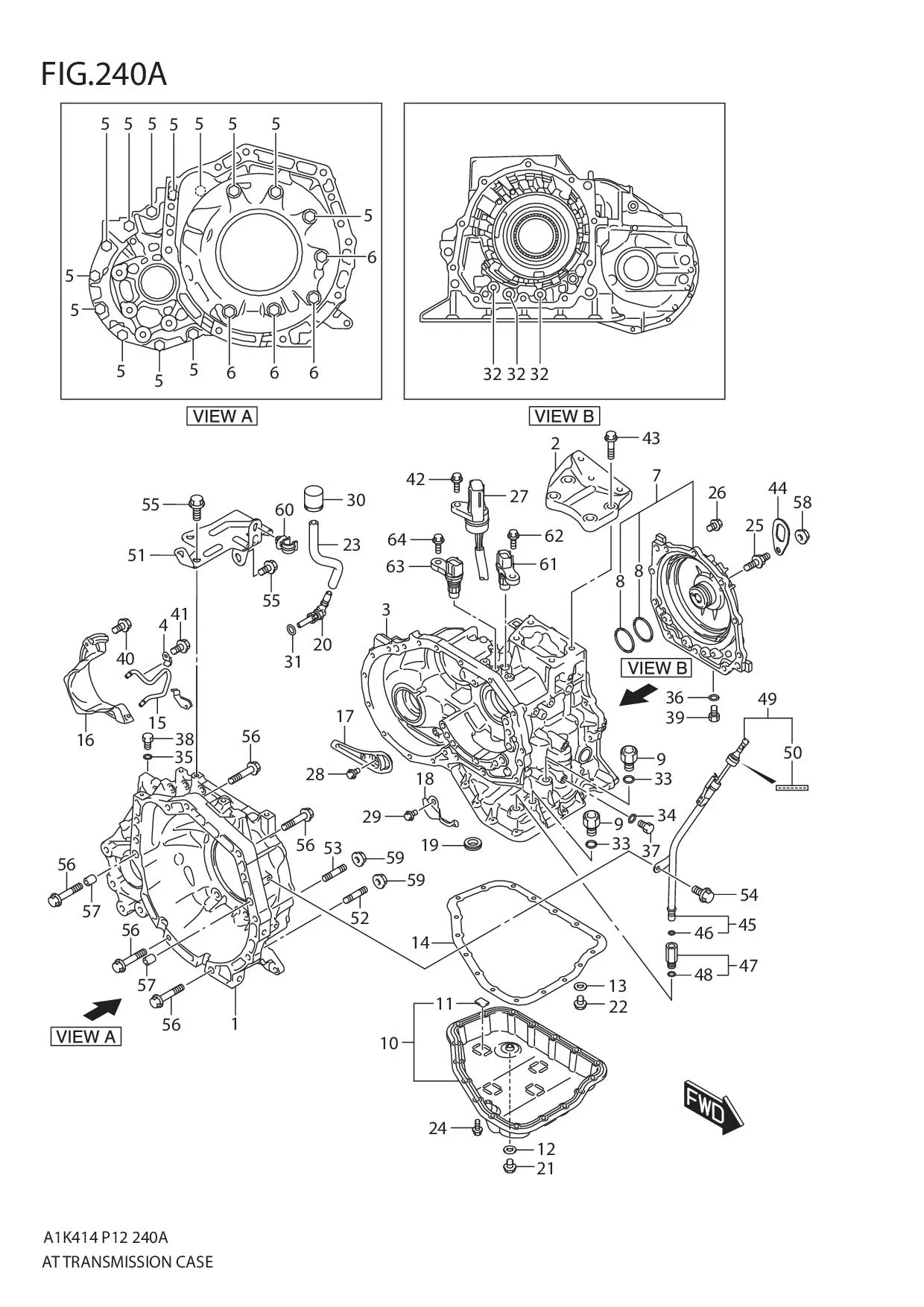

FIG.240A AT TRANSMISSION CASE (4AT)

FIG.240A AT TRANSMISSION CASE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24710-68P10-000 HOUSING, TORQUE CONVERTER 1 Rp9.148.000
2 24715-68P60-000 BRACKET, ENG MTG LH 1 Rp934.500
3 24720-77M10-000 CASE, T/M 1 Rp19.199.500
4 24725-59J10-000 CLAMP, DIFF BRG LUB PIPE 1 Rp40.000
5 24725-79C10-000 BOLT, T/C HOUSING NO.1 13 Rp26.500
6 24729-79C10-000 BOLT, HOUSING NO.2 4 Rp32.000
7 24730-77M10-000 COVER, T/M RR 1 Rp4.058.500
8 24732-70H10-000 •RING, REAR COVER SEAL 2 Rp69.500
9 24743-77M10-000 UNION, OIL PIPE 2 Rp289.500
10 24761-77MT0-000 PAN SET, T/M OIL 1 Rp1.209.500
11 DISCONTINUE
SUB: 24745-59J00-000		 •MAGNET, OIL CLEANER 4 -
12 24781-57B00-000 GASKET, DRAIN PLUG 1 Rp33.500
13 24781-57B00-000 GASKET, DRAIN PLUG 1 Rp33.500
14 24784-77M10-000 GASKET, T/M OIL PAN 1 Rp163.000
15 24811-77MT0-000 TUBE SET, DIFF SIDE BRG LUB 1 Rp208.000
16 24813-77M10-000 PLATE, OIL RESERVOIR RH 1 Rp290.500
17 24814-77M10-000 PLATE, OIL RESERVOIR LH 1 Rp55.000
18 24815-77M10-000 PLATE, OIL GUIDE 1 Rp118.500
19 24818-68J10-000 GASKET, GOVERNOR APPLY NO.1 1 Rp71.500
20 24821-77M10-000 UNION, BREATHER 1 Rp62.500
21 24823-79C10-000 PLUG, DRAIN 1 Rp31.000
22 24824-77M10-000 PLUG, T/M OIL CHECK 1 Rp42.500
23 24825-77M10-000 HOSE, T/M BREATHER 1 Rp157.000
24 24882-79C10-000 BOLT, T/M OIL PAN 17 Rp22.000
25 24883-77M10-000 STUD BOLT, T/M RR COVER 1 Rp161.000
26 24884-79C10-000 BOLT, T/M RR COVER 9 Rp36.000
27 24892-77M10-000 HARNESS, SOLENOID WIRE 1 Rp1.466.500
28 26449-65G10-000 BOLT 1 Rp27.500
29 26449-65G10-000 BOLT 1 Rp27.500
30 27991-77M10-000 PLUG, BREATHER HOSE 1 Rp47.500
31 27992-79C10-000 O RING, BREATHER PLUG 1 Rp24.000
32 29737-57B00-000 O RING, OIL PIPE 3 Rp71.000
33 29737-57B00-000 O RING, OIL PIPE 2 Rp71.000
34 29738-57B00-000 O RING 4 Rp47.500
35 29738-57B00-000 O RING 2 Rp47.500
36 29738-57B00-000 O RING 5 Rp47.500
37 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, T/M CASE 4 -
38 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, T/M CASE 2 -
39 DISCONTINUE
SUB: 29849-57B00-000		 PLUG, T/M CASE 5 -
40 29970-57B00-000 BOLT 3 Rp83.000
41 29970-57B00-000 BOLT 1 Rp83.000
42 29989-57B00-000 BOLT 1 Rp69.500
43 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 4 Rp7.000
44 DISCONTINUE
SUB: 11851-62B00-000		 HOOK 1 -
45 24770M79M10-000 TUBE ASSY, T/M OIL FILLER 1 Rp93.000
46 09280M09014-000 •O RING (D:1.5,ID:8.5) 1 Rp7.500
47 24780M79M10-000 JOINT ASSY, FILLER TUBE 1 Rp79.500
48 24781M79M10-000 •O RING, FILLER TUBE JOINT 1 Rp9.000
49 24830M68P10-000 GAUGE ASSY, T/M OIL LEVEL 1 Rp58.000
50 24830M68P10-000
SUB: 24839M79M10-000		 •EMBLEM, ATF 1 Rp58.000
51 26598M68P10-000 BRACKET, HARNESS 1 Rp35.500
52 01421M1035A-000
SUB: 01421-1035A-000		 STUD BOLT 1 Rp16.000
53 01421-1045A-000 STUD BOLT 1 Rp29.500
54 01550M0612A-000 BOLT 1 Rp5.000
55 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500
56 01550-1050A-000 BOLT 5 Rp6.000
57 04211M13189-000
SUB: 04211M13149-000		 PIN 2 Rp9.000
58 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
59 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
60 09403-11320-000 CLAMP 1 Rp21.500
61 26130-77M10-000 SENSOR, SPEED OUTPUT 1 Rp1.429.500
62 29989-57B00-000 BOLT 1 Rp69.500
63 26143-77M10-000 SENSOR, SPEED INPUT 1 Rp1.473.000
64 29989-57B00-000 BOLT 1 Rp69.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
